Elk -C1M1 LTEA Instructions / Specifications

ELK-C1M1 LTEA
ElkCommBd Communicator
Applications and Overview

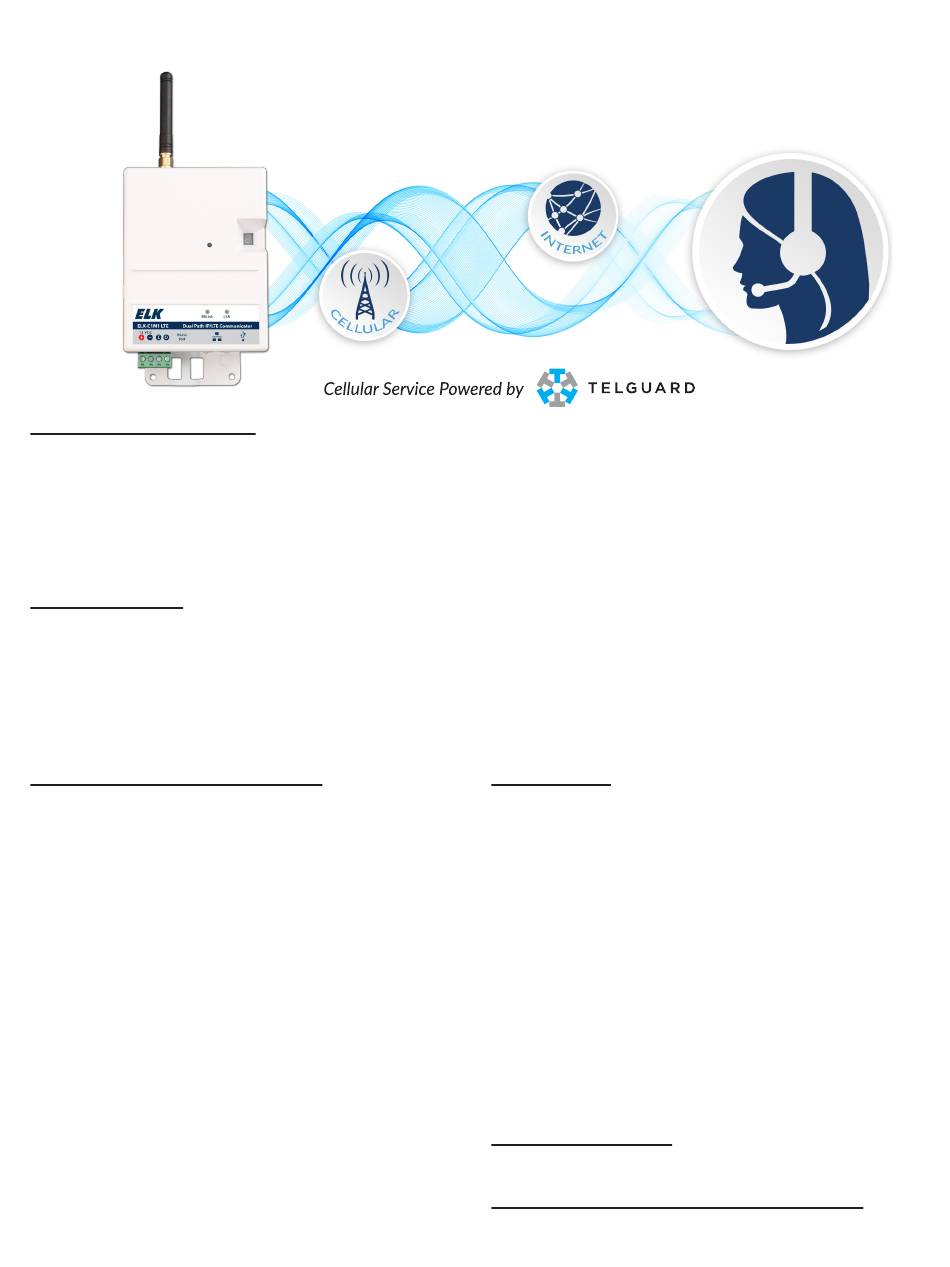

The C1M1 LTEA ElkCommBd is a dual path alarm communications device for use with the ELK-M1G Control family. It is the ideal
solution for backing up or replacing old fashioned phone line communcations. C1M1 is configured to send full data messages using
Internet (IP) as the primary pathway and Cellular as backup. It may also be configured for single path operation in situations where
one of the paths (IP or Cellular) is not available. In the dual path configuration it can be optionally programmed to detect temporary
outage of either pathway after a selectable time delay and report that outage over the remaining pathway. Periodic automatic test
reports configured in the M1 will be sent over both pathways for ultimate reliability and peace of mind. All communications between
the C1M1 and the Central Monitoring Station is encrypted and secure.
Service and Setup
Cellular service is handled via a cooperative partnership between Elk and Telguard Online. Telguard is a division of Telular® Corporation,
an industry pioneer and leader in cellular alarm communications. Activation and setup will be handled through the Telguard Online
website. Once a unit has been activated, management of the Central Station reporting parameters and paths is handled through the
ElkLink website. Installing Dealers will need an online account for both websites. Existing Telguard Installing Dealers can use the
same account and login credentials they already have.
General Description and Operation
C1M1 mounts easily inside the 14" or 28" ELK-M1 metal
enclosures. (ELK-SWB14 or ELK-SWB28) Both provide a
knockout for the cellular antenna as well as a screw hole and
zip-tie basket handle for permanent mounting. C1M1 is shipped
with a screw-on dipole antenna.
C1M1 operational status is displayed via 3 discrete LED indicators
along with a seven (7) segment display.
Only 3 wiring connections are needed to complete the installation.
These are: Serial cable to the M1 RS232 Main Port 0, 12VDC
power from the M1 Aux. power output, and a CAT5/6 network
cable (not supplied) to the premise's IP (LAN) network router.
An optional USB port (type "B" mini) is conveniently available
on the C1M1 for connection of a local PC. This allows ElkRP
software to be used for local programming of the M1 Control.
NOTICE: Drawings, illustrations, diagrams, part numbers, etc. are
provided as reference only and are based on equipment available at
the time the information was created. All information contained in this
document are subject to change without notice.
For the latest downloadable version of this manual visit our website: http://www.elkproducts.com
For AT&T Networks
Instructions / Specifications
Specifications
Operating Voltage:
Standby Current:
Max. Operating Current:
Frequencies Supported:
FIPS 197 compliant:
Dimensions:
Operating Environment:
Supplied Antenna:
Connections:
Power and I/O:
LAN (Local Area Net):
RS232 Input Port:
USB Serial Port:
Included Accessories
36" max., 3-wire RS232 Serial to DB9M Cable (To M1 Control)
Optional Accessories available for Purchase
ELK-USBCM USB Serial A to mini-B cable, 60", Black
12VDC
85 mA
230 mA
800/1900MHz
Certificate No. 3352
3.5" x 5.4" x 1.3"
Indoor Use Only; 32-120°F (0-49°C),
0-85% humidity (non-condensing)
Dipole screw-on
4 position plug-in terminals
RJ45 10/100 Receptacle
3-wire Serial to DB9M cable
Type "B" USB Mini
