Delhi Industries BI Series Operation Instructions And Parts Manual

MODELS: BI-10 THROUGH BI-36, BI-10RM THROUGH BI-36RM
Rotating parts on fans should not be exposed. Where these components are not protected by ductwork, cabinets or
covers, appropriate guards should be employed to restrict exposure to rotating parts. Access doors should not be
opened with the fan operating to avoid foreign objects being drawn into the system. On initial start-up a careful
inspection should be carried out to ensure no foreign material is present which could become airborne in the system.
Read installation and operation instructions carefully before attempting to install, operate or service Delhi BI/BI-RM
Series Blowers. Failure to comply with instructions could result in personal injury and/or property damage. Retain
instructions for future reference.
DELHI BI series blowers are specifically designed as a quiet and efficient blower. The BI series incorporates a
backwardly inclined (BI) blade configuration to generate air moving performance. The BI series are single inlet blowers,
which have a standard CCW rotation and bottom horizontal discharge. The discharge direction may be easily altered to
any one of eight positions without removal of the wheel venturi or housing.
Complete access for motor and drive installations and servicing may be completed by partial removal of the drive
compartment cover assembly. Pre-lubricated ball bearings, motor adjustment hardware and a dynamically balanced
wheel are standard equipment. Operating temperature range is –65 to 220 deg. F.

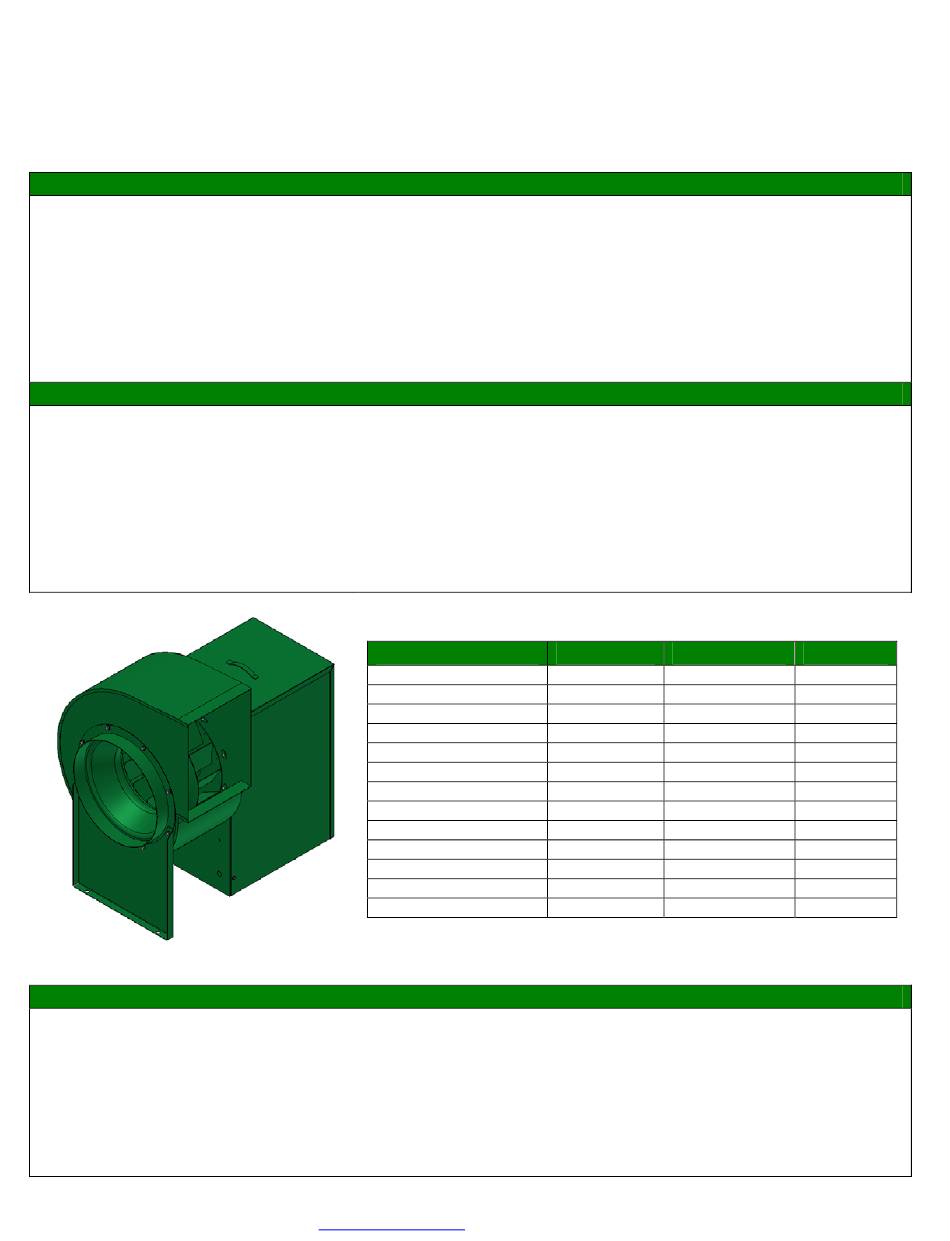

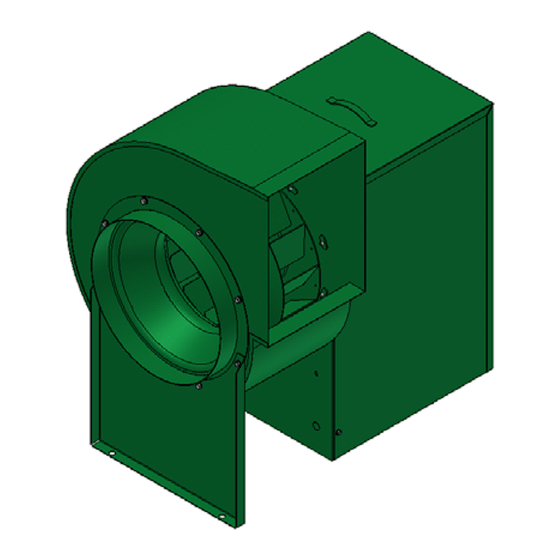

Fig. 1
Inspect unit for damage, report any shipping damage to carrier. Check all fasteners and re-tighten as required. Rotate
the blower wheel by hand to ensure free rotation. If rubbing occurs, loosen the inlet venturi bolts, re-position the venturi
to establish clearance, re-tighten bolts.
Delhi Industries Inc. 523 James Street, Delhi, Ontario N4B 2Z3
Tel. (519) 582-2440 Fax. (519) 582-0581
BI SERIES – UTILITY BLOWERS
Operation INSTRUCTIONS AND PARTS MANUAL

GENERAL SAFETY

UNIT DESCRIPTION

BI-10/BI-10RM
BI-12/BI-12RM
BI-13/BI-13RM
BI-15/BI-15RM
BI-16/BI-16RM
BI-18/BI-18RM
BI-20/BI-20RM
BI-22/BI-22RM
BI-24/BI-24RM
BI-27/BI-27RM
BI-30/BI-30RM
BI-33/BI-33RM
BI-36/BI-36RM
www.delhi-industries.com
MODEL MAX. H.P
2
5
7-1/2
7-1/2
10
10
10
15
15
15
15
20
25
ALL SHAFTS ARE KEYWAYED
GENERAL
SHAFT DIA. WEIGHT
¾ 78
1 112
1 134
1 140
1-3/16 162
1-3/16 172
1-3/16 289
1-3/16 322
1-7/16 385
1-7/16 411
1-11/16 517
1-11/16 607
1-15/16 747
