Summary of Contents for Spacelabs Healthcare AriaTele 96281

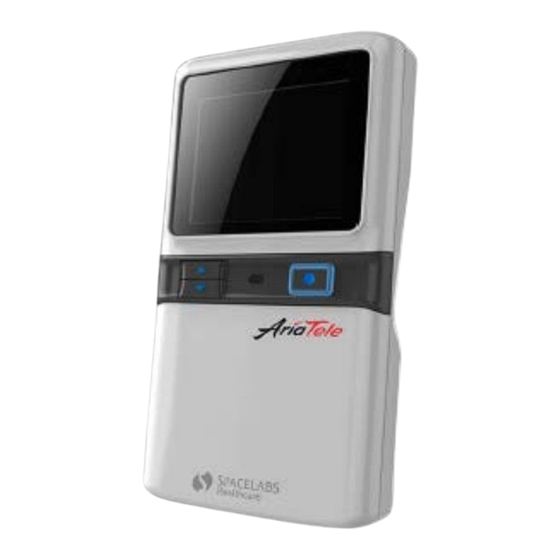

- Page 1 Telemetry Transmitter (96281) Quick Start Guide © 2015 Spacelabs Healthcare 073-0377-00 Rev. C...
- Page 2 Options The AriaTele™ Telemetry Transmitter is available in three options: Option A Option B Option C ECG only ECG with display ECG with display and Sp0 © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C...
- Page 3 The display (options B and C) shows the ECG signal within five seconds of inserting the batteries. NOTE: Follow your current hospital protocol and workflow to admit the patient to the Central Station © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C...
- Page 4 • SpO₂ – Yellow SpO₂ % value (option C only) WARNING: Do not use the transmitter display for continuous patient monitoring. Use the display patient data only to check the signal quality of the transmitter. © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C...
- Page 5 NOTE: SpO₂ automatically shows on the Xhibit™ Central Station when the SpO₂ cable is connected to the transmitter. To show SpO₂ on Ultraview SL™ monitors, select > > CHANNEL FORMAT SpO₂ ON/OFF. © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C...
- Page 6 Lead fault indicators on the top front of the transmitter flash orange when a lead wire is disconnected from the electrode or removed from the transmitter. Option A Option B Option C © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C...
- Page 7 Lead II → V → Lead I → Lead III → SpO₂ 3. To scroll through the waveform views in reverse order, press the up arrow button. NOTE: The display turns off after 60 seconds of inactivity. © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C...
- Page 8 The lead wire grouper connects all lead wires to the AriaTele Telemetry Transmitter at once. You can use the transmitter with or without the lead wire grouper. Front Back © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C...
-
Page 9: Action Button
NOTE: To enable the strip recording feature, refer to your Central Station Operations Manual. The patient event is sent to the > view if the message is given an alarm priority in the Clinical Access Alarms Patient Event Xhibit™ Central Station menu. Biomed © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C... -
Page 10: Battery Status Indicator
• A Low Battery message shows at the Central Station. NOTE: Remove the batteries when the transmitter is not in use. © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C... -
Page 11: Cleaning And Disinfecting
Steriplex CAUTION: Do not use Accelerated Hydrogen Peroxide (AHP) and quaternary ammonia-based products. Quaternary ammonia germicidal products include Cavicide, Virex, Virex 256, SaniCloth, and SaniCloth Plus. Do not autoclave. © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C... -
Page 12: Contact Information
AriaTele Telemetry Transmitter Operations Manual (P/N 070-2451-xx). Contact Information Technical Support: 1-800-522-7025 Available 24 hours a day and 7 days a week. Field Service Engineer: Clinical Education Consultant: Sales Representative: © 2015 Spacelabs Healthcare 96281 Quick Start Guide 073-0377-00 Rev. C...
