Service Manual
LDT 21/24/32 Closed Circuit Axial Piston Transmission

General Description

Basic Design

Key Features

Typical Applications

LDT Schematics

©
Danfoss | June 2022
LDT21/24/32 is a U-style hydrostatic transmission with a Z-shaft configuration, including a closed circuit
variable displacement piston pump with DDC (Direct displacement control) and a fixed motor.
LDT21/24/32 is specially designed with optimized performance, size, and cost, in order to fulfill the
demand of the mobile applications marketplace. This document provides the detailed specifications and
features for LDT21/24/32.
Easy to use design as a complete hydrostatic transmission package for compact utility tractors
ranging from 22 hp to 40 hp
Compact design
U-style layout in one housing with Z-shaft configuration
Requires external charge flow
LDT21/24 feature 85mm between pump and motor shaft centers, identical to BDU21 and LDU20.
LDT32 shaft center distance is 105mm
Best in class efficiency, utilizing female piston and male slipper design; overall efficiency of
approximately 80% is possible
Improved life kit, higher duty cycle capability while providing the most compact design in this class of
hydrostatic transmission
Low trunnion operating force
Serviced by Danfoss' global network
Compact utility tractor

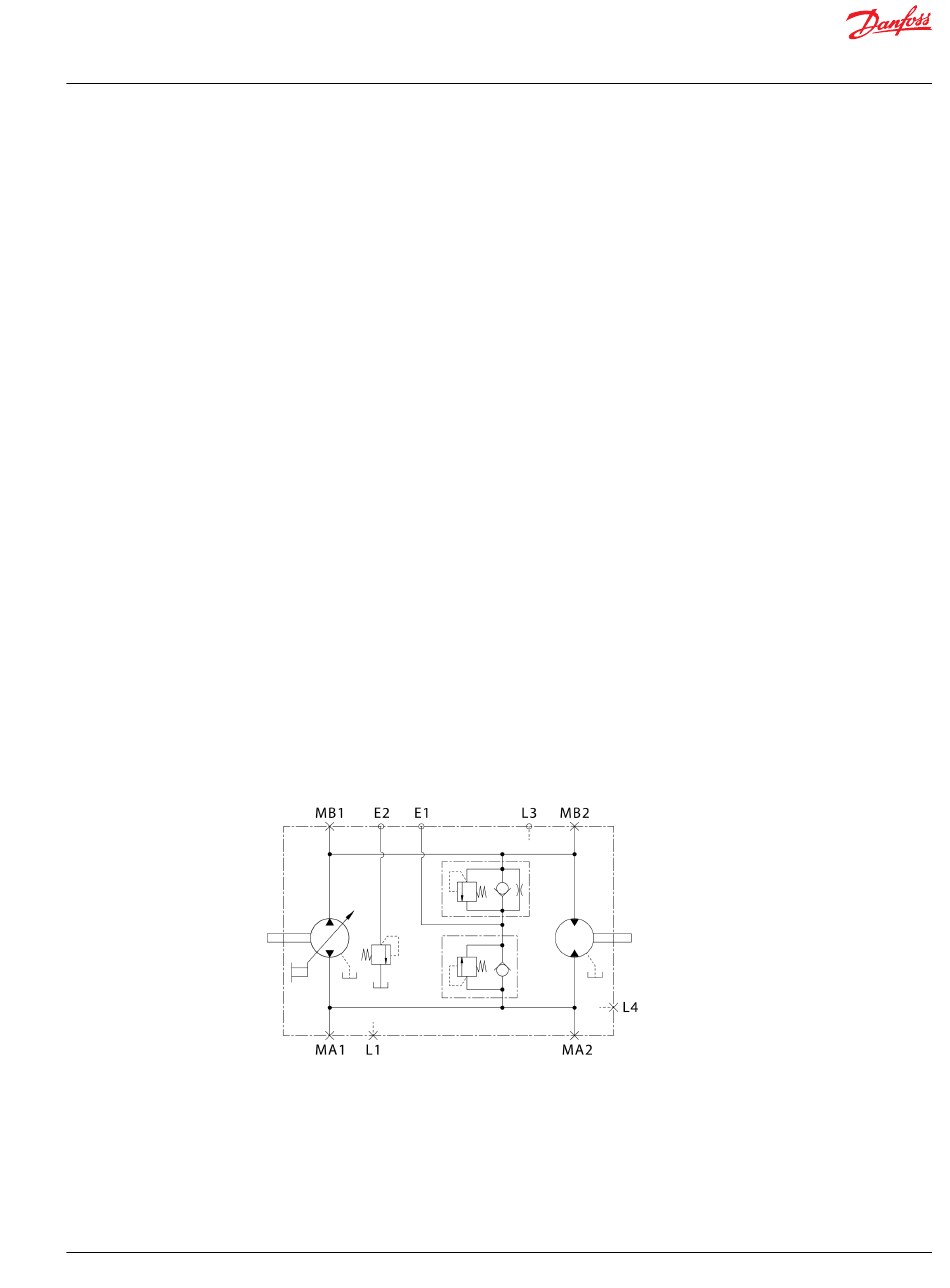

LDT21 hydraulic schematic
AX417167456877en-000101 | 7
