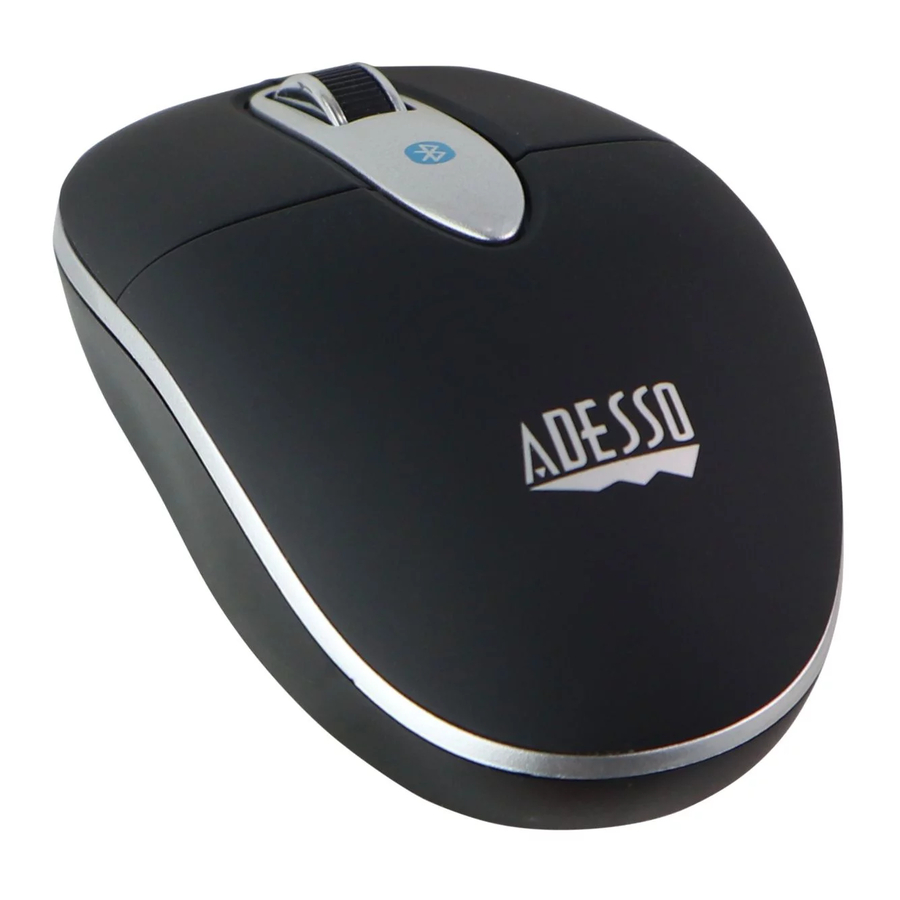

Adesso iMouse S100 - Bluetooth Mini Mouse Manual

INTRODUCTION

The Adesso bluetooth mini mouse allows you to break away from your laptop and touchpad to experience a reliable, transceiver-free wireless connection. The compact and comfortable design provides convenience and mobility, and allows you to navigate quickly and easily with the convenient scroll wheel. Features optical technology to work on virtually any surface, with improved speed, accuracy and reliability, without the hassle of a clogged mouse ball.

FEATURES

• Bluetooth Technology
• 1000DPI for dynamic resolution with fast tracking speed
• Tracking Speed: 600mm/ Second
• Orbital Life: 100 miles mechanical
• Enjoy reliable, transceiver-free wireless connection to your Bluetooth-enabled PC
• Power On/Off Button: Extends battery life
• Auto-sleep mode for longer battery life
• Optical technology to work on virtually any surface
• Navigate quickly and easily with the convenient scroll wheel
• Designed for Notebook/Netbook PC for convenience and mobility
• Microswitch: Five Million Cycles

REQUIREMENTS

• Hardware, IBM, Pentium II class compatible or higher with built-in Bluetooth
• Operating System: Windows 7, Windows Vista, XP and below, Mac OS X

HARDWARE INSTALLATION

Note:
Installing this Bluetooth™ Mouse in Windows 7, Vista, XP and Mac OSX as like any other Bluetooth™ devices would require a keyboard and mouse to navigate and contol during the installation process.

1. Open the battery cover under the mouse and place 2 AAA batteries inside. Close the battery compartment cover after placing the batteries.

2. Power the mouse by switching it ON. The power switch is found on back of the mouse. (By default the power of the mouse is switched ON.)


BLUETOOTH CONNECTION SETUP

Please Read Prior to First Use
This Adesso Bluetooth Mouse iMouse S100 requires a Bluetooth receiver in order to operate. If your computer does not have built-in Bluetooth compatibility, you can order the Adesso Bluetooth Receiver, Model RCV-01BT.

1. Turn ON your computer and let your computer load completely.
2. Make sure to switch ON the mouse and press the CONNECT button found in the bottom of the mouse to begin connection set up.


For Windows 7 Users

1. Select Bluetooth from Task Bar→Select Add a device button → select Bluetooth Mouse for paring → Automatically complete pairing

2. After complete the connection. Double click the mouse for Bluetooth Mouse Properties → Select Service Tab → Click Drivers for Keyboard, Mic, ect (HID)


For Windows Vista/XP Users

1. To begin Bluetooth Connection Setup with Vista, XP SP2 system you go to Start then select Control Panel then select Classic View and choose Bluetooth™ Devices. Finally select Add a Bluetooth™ Device.

2. On Add Bluetooth™ Device Wizard select My device is set up and ready to be found and click Next.

3. Select the Bluetooth Mouse from the list of Bluetooth device you want to add and then click Next.

4. Select Don't use a passkey and click Next.

5. Click Finish to complete the connection. and click Continue for auto pairing


For Macintosh Users

1. Select Set Up Bluetooth Device
   Note: If you don't see Bluetooth Power: On, click the Turn Bluetooth On Button

2. Select Bluetooth Mouse and click Continue for auto pairing

3. Mac is pairing with "Bluetooth Mouse"

4. Set up Complete


Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Adesso iMouse S100 - Bluetooth Mini Mouse Manual
