Quantum DLT Rack1 Install Manual

Using the Rack Mount Kit To Install the
DLT Rack1 Chassis in an Equipment Rack

Step 1

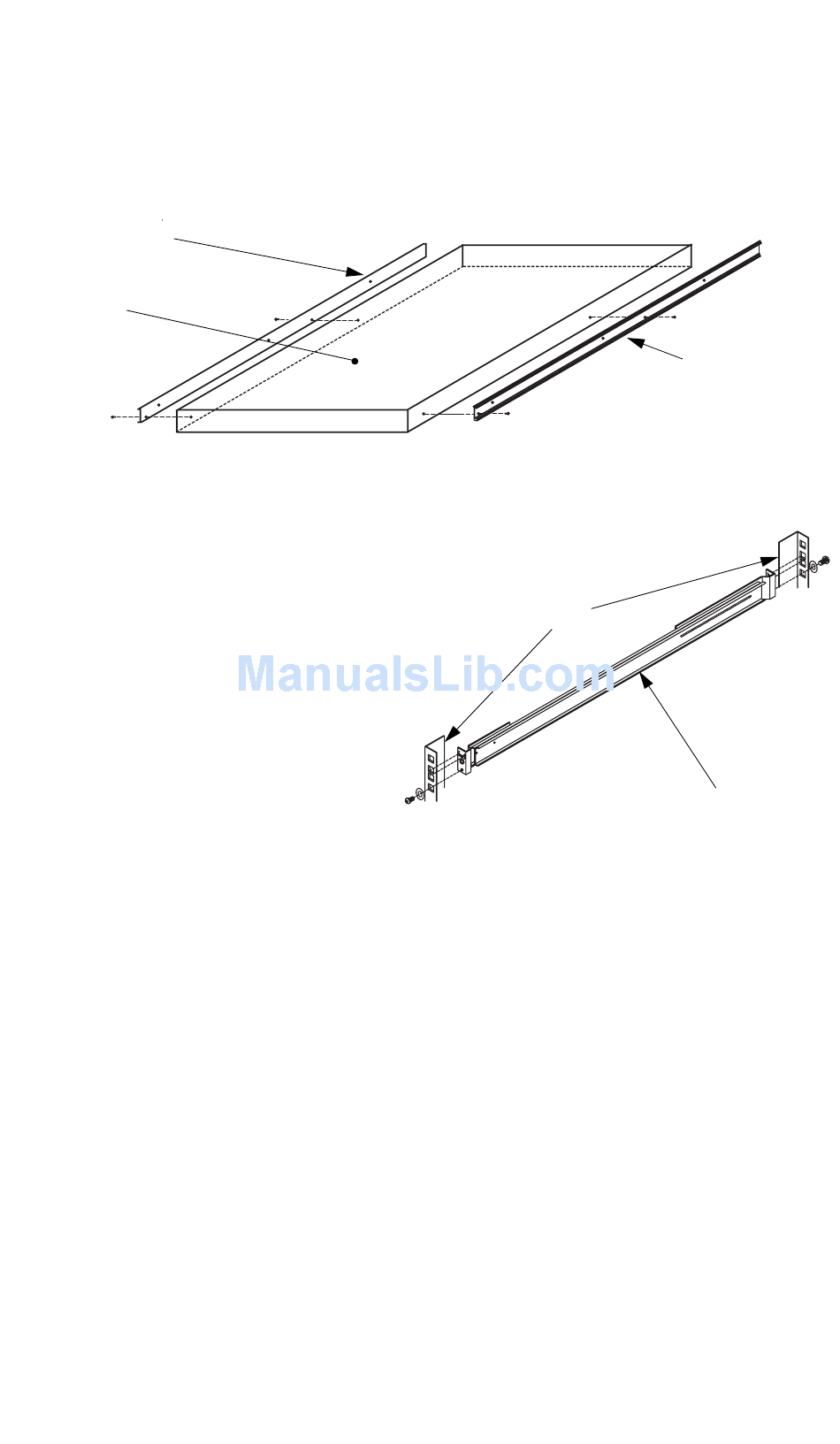

Remove the chassis members from the slides and attach the chassis members to the chassis. Use
(4) M3 × 4 mm pan-head PHILLIPS
Chassis
Chassis

Step 2

Loosely mount the left and right cabinet
section/bracket assemblies into the rack
between the upright rails (see Figure 2).
Use these screws and washers:
(4) #10–32 × 3/8 pan-head PHILLIPS
•
screws
(4) #10 flat washers.
•
(Left-side assembly shown; right-side
assembly is opposite.)
Note: Do not fully tighten the screws
between the rack and the bracket at this
time. After loosely installing both brackets
in the rack, securely tighten the rear bracket
screws onto the slide.

Step 3

Install the chassis assembly (from Step 1) into the cabinet sections:
Move the ball retainers in the cabinet sections to the fully forward position.
a.
b. Slide the chassis sections through the plastic lead-in guides at the front of the cabinet sections
and into the balls.
c. Make sure that the chassis sections are both fully engaged with the balls in the ball retainers.
Press to release the lock on each slide, then fully close the slides.
d.

Step 4

Align the slides:
Open and close the slides twice, making sure the chassis sections engage in the cabinet sections
a.
properly and that the locks function properly.
Securely tighten the front bracket screws onto the slide.
b.
Information in this document is subject to change without notice. Copyright © 2003, 2004 by Quantum Corporation. All rights reserved.
Reproduction in any manner without the prior written permsision of Quantum Corporation is strictly prohibited.
Trademarks: Quantum is a trademark of Quantum Corporation, registered in the U.S.A. and other countries. Other trademarks and trade
names may be used in this document to refer to either the entities claiming the marks and names or their products. Quantum Corporation
disclaims any proprietary interest in trademarks and trade names other than its own.
®
screws. See Figure 1.
Upright rails
Cabinet section/bracket assembly
Part Number 81-81209-02 Rev A01
*81-81209-02*
Chassis member
Figure 1
Figure 2
