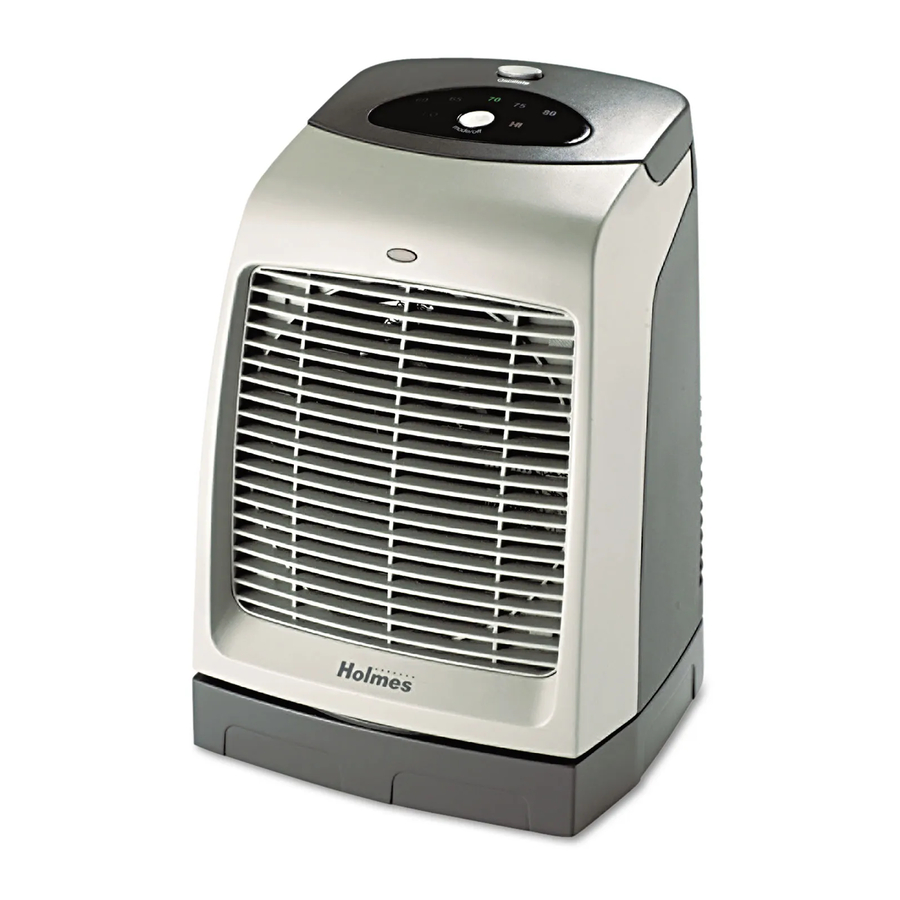

HOLMES HFH5606, HFH5656 - Power Heater Fan Manual

TECHNICAL SPECIFICATIONS

• Wattage: 1500 W (+5% –15%)
• Working voltage: 120v AC/60Hz

AUTO SAFETY SHUT-OFF

This heater is equipped with a patented, technologicallyadvanced, safety system that requires the user to reset the heater if there is a potential overheat situation. When a potential overheat temperature is reached, the system will automatically shut the heater off. It can only resume operation when the user resets the unit.

To Reset the Heater:

1. Unplug the heater and wait 10 minutes for the unit to cool down.
2. After the 10 minutes, plug the unit in again and operate normally.

PRE-OPERATING INSTRUCTIONS

1. Carefully remove your heater from the box. Please save the carton for off-season storage.
2. Place heater on firm level surface.
3. Avoid overloading your circuit by not using other high wattage appliances in the same outlet. At 1500 Watts, this unit draws 12.5 Amps.

OPERATING INSTRUCTIONS

Your heater is equipped with a technologically advanced 1Touch^® electronic thermostat. You can set the heater to run continuously in manual mode or set the 1Touch^® thermostat to your desired temperature setting. The 1Touch^® thermostat will automatically turn the heater ON or OFF depending on the preset comfort level. The comfort level ranges between 60°F/15°C and 80°F/27°C.

Manual Mode Instructions:

1. Plug the heater into a 120V AC electrical outlet.
2. To start the unit, push the MODE/OFF button once for the HIGH manual setting. (See Figure 1)
3. Press the button again for the LOW manual setting. (See Figure 1)
4. To stop the unit, press and hold the button for two seconds or keep pressing the button until all the temperature indicators are OFF.

NOTE: The Power Light will remain lit during operation. In Manual Mode, only the LOW or HIGH power light will be lit.

1TOUCH THERMOSTAT INSTRUCTIONS

To take advantage of the 1Touch^® Thermostat continue to press the MODE/OFF button until the desired temperature is set in either the HIGH or LOW setting. When ambient temperature rises above the set temperature, the heater will stop. When the ambient temperature drops below the set temperature, the heater will turn on automatically.

1. Oscillation Button ( Model HFH5606 only)
2. 1Touch Button
3. Temp Settings (5)
4. Hi/Lo Power Lights

NOTE: When the 1Touch^® thermostat is set, either the HIGH or LOW power light, and the set temperature light will remain lit during operation. (See Figure 1)
NOTE: It is normal for the heater to cycle ON and OFF as it maintains the preset temperature. To prevent the unit from cycling, you need to raise the thermostat setting.
NOTE: 1Touch has memory. The 1Touch^® thermostat will remember the previous temperature setting after the unit has been turned off. However, if the unit is unplugged, or the unit is turned off at low power - 80˚F/27˚C setting, the 1Touch^® thermostat will be reset and will no longer remember the previous temperature setting.

OSCILLATION INSTRUCTIONS

• Select the desired control setting and press the oscillation button on.
• To stop oscillation, press the oscillation button ( ) again.
• Please do not manually turn the unit, it is designed to turn only by motorized oscillation.

CLEANING/MAINTENANCE

During Season Care:

1. Always unplug the heater before cleaning.
2. Clean the unit with a soft cloth moistened with a mild soap solution.
3. NEVER use abrasive or flammable solvents to clean the unit.
4. After cleaning, be sure to completely dry the unit with a cloth or towel.

After Season Care:

1. Store heater in a cool, dry location.
2. The manufacturer recommends that you store the unit in its original carton.

TROUBLESHOOTING

If your heater fails to operate:
UNPLUG THE UNIT

• Make sure the electrical outlet or circuit breaker is working.
• Check for obstructions. If you find an obstruction turn the heater OFF, and unplug the unit. Carefully remove the obstruction and follow the reset instructions.
• The temperature may be set too low. Adjust the thermostat until the heater restarts.

Please DO NOT attempt to open or repair the heater. Please see the Warranty for Service Instructions.
