U2 / U2 Pro Mini XMOS USB to
Coaxial /Optical Converter
Thank you very much for choosing our products,
please read this manual carefully before using.
Introduction

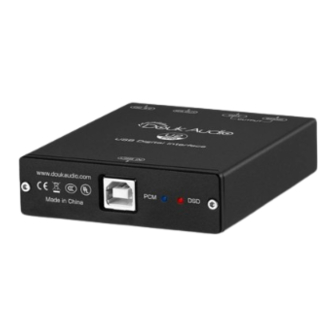

This is a USB to Toslink optical / coaxial / IIS(U2 PRO) audio converter,
a pure digital sound card, support common losselss playback, suitable
for PC computer, notebook, mobile phone, set-top box, rock 64,
raspberry pi and so on, it can provide better sound quality than their
own sound card.
How to use
● USB Driver Installation
1. Connect U2/U2 PRO to the USB port of the computer with a USB
cable, the computer USB port also can be used for power supply.
For U2 pro version you also can use external DC 5V power adapter.
2. Enter computer management, there will be
appears in the device manager.
3. Find the USB driver
(XMOS-Stereo-USB-Audio-Class2-Driver-300
4_v4.13.0（dop for WIN7-WIN10)
it. Double click it, and then click "Next", as the following picture
shows:
"HIFI DSD"
device
fromthe U-disk or contact us for
4. Tick the
agreement
below, and click "Next", as the following
picture shows:
5. Continue to click "Next", as the following picture shows:
6. Click
"Install"
, as the following picture shows:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DOUK AUDIO U2
Summary of Contents for DOUK AUDIO U2
- Page 1 Introduction This is a USB to Toslink optical / coaxial / IIS(U2 PRO) audio converter, a pure digital sound card, support common losselss playback, suitable for PC computer, notebook, mobile phone, set-top box, rock 64, raspberry pi and so on, it can provide better sound quality than their own sound card.
- Page 2 7. Begin to install, as the following picture shows: ● How to Set XMOS as Output on the PC 1. If your PC system is Win10 or Win11, please click on the lower right corner, and then click “∧” and select “XMOS XS1-U8 DJ”, as the following picture shows: Until it promots that the installation is completed, and click “Next”.
- Page 3 ● How to Play DSD Music on Foobar (V1.6.16) 4. Click “Next”, as the following picture shows: 1. Double click foobar2000_v1.6.16.exe and then click “Next” 2. Click “I Agree”, as the following picture shows: 5. Click “Next”, as the following picture shows: 3.
- Page 4 7. The installation is in the process,please wait, as the following ● Install ASIO plug-in picture shows: 1. Select “File”‐‐>"Perferences" in the Menu bar of Foobar, the setting box will appear and please select“Components”on the left, as the following picture shows: 8.
- Page 5 ● Playback settings Note：if you want to play DSD256, please install driver: iBassoAudio Select “File”‐‐>"Perferences" in the menu bar of foobar, and the setting _USB-DAC_driver_v3.26.0（the installation process is the same as box will appear, please select “Play back-->Output”， then the options above）, and DSD Playback Method please select “ASIO Native”...
-
Page 6: System Compatibility
Working current 130 mA the voltage is DC 5V, over 5V will result in damage. 4. For U2 PRO, the pins of IIS is suitable for the HDMI interface of Note：DSD Native need to install this driver： PS decoders. iBassoAudio_USB-DAC_driver_v3.26.0（Native for win10) 5.
