Simply Silent
Installation and Maintenance Instructions

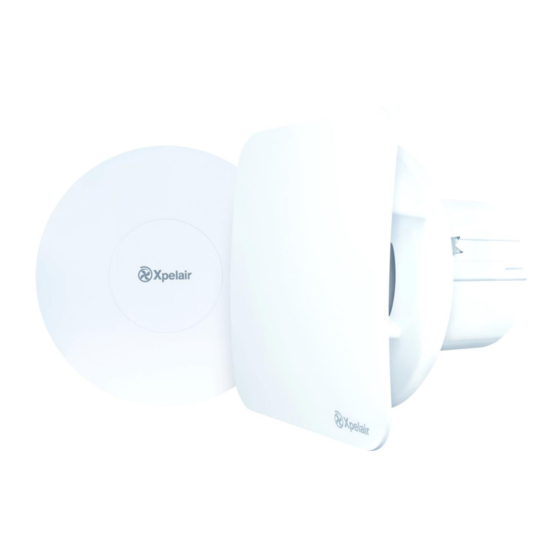

CV4SR (078377)
D
o read the entire instruction leaflet before commencing installation.
Do install each fan with a means for disconnection in all poles in the fixed wiring.
Do make sure the mains supply is switched off before attempting to make electrical connections or carry out any
maintenance or cleaning.
Please leave this leaflet with the fan for the benefit of the user.
TM
CV Constant Volume Fan Range
Humidistat, Timer.
Advertisement
Table of Contents
Related Manuals for Glen Dimplex Xpelair Simply Silent CV4SR
Summary of Contents for Glen Dimplex Xpelair Simply Silent CV4SR
- Page 1 Simply Silent CV Constant Volume Fan Range Installation and Maintenance Instructions CV4SR (078377) Humidistat, Timer. o read the entire instruction leaflet before commencing installation. Do install each fan with a means for disconnection in all poles in the fixed wiring. ...
- Page 2 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
- Page 3 Back plate fixing positions Wall tube quickfix clamps Front Cover Removal Factory settings: Timer 15 minutes, RH 75% Depress Cover Latch with tool & remove Cover and Baffle Complete Maximum 30 minutes Minimum 30 seconds Square Baffle removal Round Baffle fitting...
- Page 4 Wiring and setting up Where to locate the fan. Locate it as high as possible. At least 110mm from the edges of the mounting surface to the centre of the hole. As far away as possible from and opposite to the main source of air replacement to ensure airflow across the room (e.g.
- Page 5 If ceiling mounting the fan, you will also need: A 100mm diameter prepared hole. Appropriate ancillaries for termination. These items are available from Xpelair: 3m flexible ducting Ref: 89663AA. If the duct passes through a cold space use insulated duct ref: 89847AA. Soffit Grille Ref: 89742AW XCT100 –...
- Page 6 Fasten the back-plate to the wall/ceiling using appropriate fasteners. See figure A. 10. If using screws, do not over tighten. The fan may also be fixed to a wall tube using the clamping brackets. Tighten the screws until the fan is firmly secured to the tube – see figure B. Wire the electrical connections.
- Page 7 Hour run meter All fans incorporate an hour run meter that allows the installer to measure the actual running time of the fan after installation. The meter records continuous power supply on time and displays this via an on-board red LED that always flashes to indicate the total number of hours the supply has been on (see fig.
- Page 8 Xpelair: A brand of the GDC Group Limited, trading as Glen Dimplex Heating & Ventilation © Glen Dimplex. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of...
