poly-planar WC-400 Install Manual

poly-plonar inc.
J J
r
Waterproof Marine SPeakers

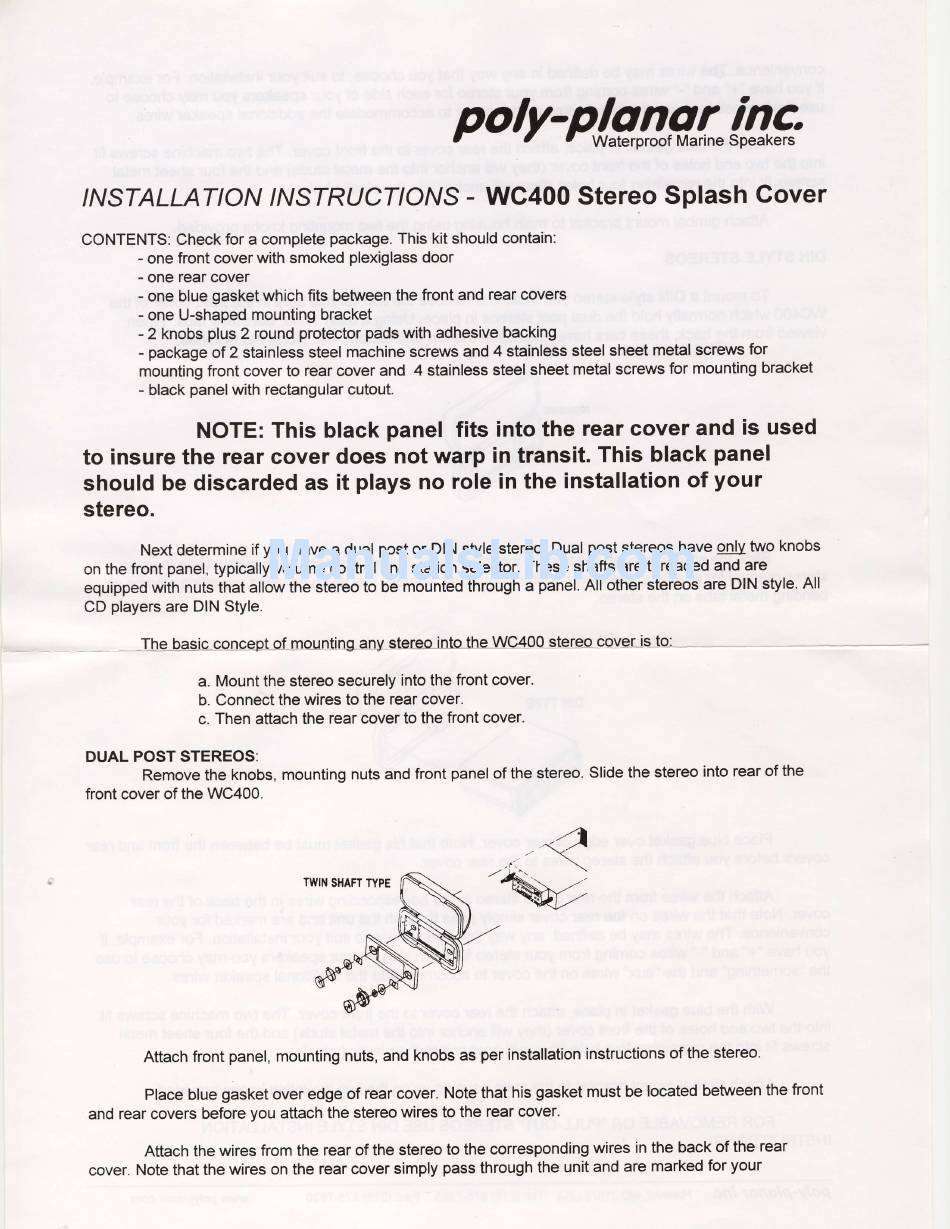

/NSIAL LATION /NSIRUCI/ONS - WC400 Stereo Splash Cover
CONTENTS: Check for a complete package. This kit should contain:
- one front cover with smoked plexiglass door
- one rear cover
- one blue gasket which fits between the front and rear covers
- one U-shaped mounting bracket
- 2 knobs plus 2 round protector pads with adhesive backing
- package of 2 stainless steel machine screws and 4 stainless steel sheet metal screws for
mounting front cover to rear cover and 4 stainless steel sheet metal screws for mounting bracket
- black panel with rectangular cutout.
NOTE: This black panel fits into the rear cover and is used
to insure the rear cover does not warp in transit. This black panel
should be discarded as it plays no role in the installation of your
stereo.
Next determine if you have a dual post or DIN style stereo. Dual post stereos have only two knobs
on the front panel, typically volume control and station selector. These shafts are threaded and are
equipped with nuts that allow the stereo to be mounted through a panel. All other stereos are DIN style. All
CD players are DIN Style.
, _ The basic coneepldoeuntjng_any slereo into the WCl00 stereo cover,is to,
a. Mount the stereo securely into the front cover.
b. Connect the wires to the rear cover.
c. Then attach the rear cover to the front cover.
DUAL POST STEREOS:
Remove the knobs, mounting nuts and front panel of the stereo. Slide the stereo into rear of the
front cover of the WC400.
-M
Attach front panel, mounting nuts, and knobs as per installation instructions of the stereo.
Place blue gasket over edge of rear cover. Note that his gasket must be located between the front
and rear covers before you attach the stereo wires to the rear cover.
Attach the wires from the rear of the stereo to the corresponding wires in the back of the rear
cover. Note that the wires on the rear cover simply pass through the unit and are marked for your
