IMR- 2 Wired Remote
Supplement Instructions for CMR-60 extension cables.
The MRD-60 requires a pull up resistor when using the
MRR7 with 60 Ft., or more, extension cable length.
A Pull up resistor Poly Planar # CMR-P is available for
the Expansion Port Ribbon Connector
520 McCormick Drive, Suite F, Glen Burnie, MD 21061 Phone: 410 761-4000 Fax: 410 761-6274

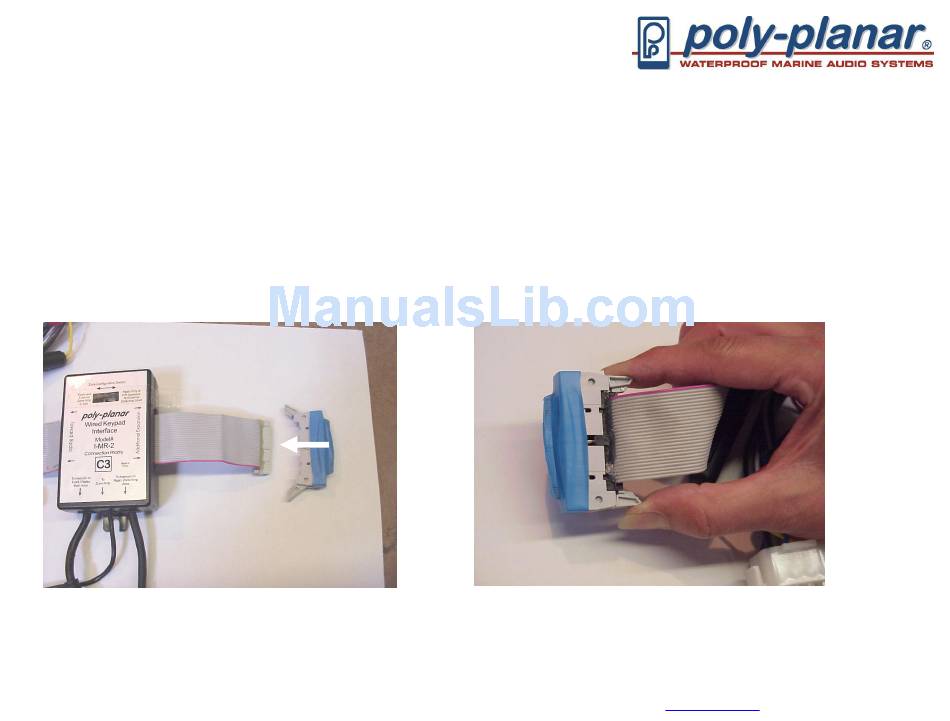

Attach the CMR-P to the IMR-2 interface ribbon cable.
Be sure the unit is fully seated and the latches are
closed.
This device is not needed on connections under 60 Ft.
www.polyplanar.com
