RD-44 Audio Network Control Panel
Introduction:
The RD-44 is designed to control the audio functions of Poly-Planar marine
radios, amplifiers and audio sources. With versatile mounting options, the RD-
44 can be installed up to 60 feet away from the radio or amplifier in a variety
of positions. In addition, the built-in intercom function allows communication
between the vessel's audio zones.
Features:
•
Full control of audio functions and sources
•
32 character back-lit digital display
•
Self-dimming for night time use
•
Back-lit keypad
•
Waterproof, corrosion resistant enclosure
•
Dash or bracket mount options
•
Built-in Intercom
•
Infrared remote control sensor
Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
www.polyplanar.com

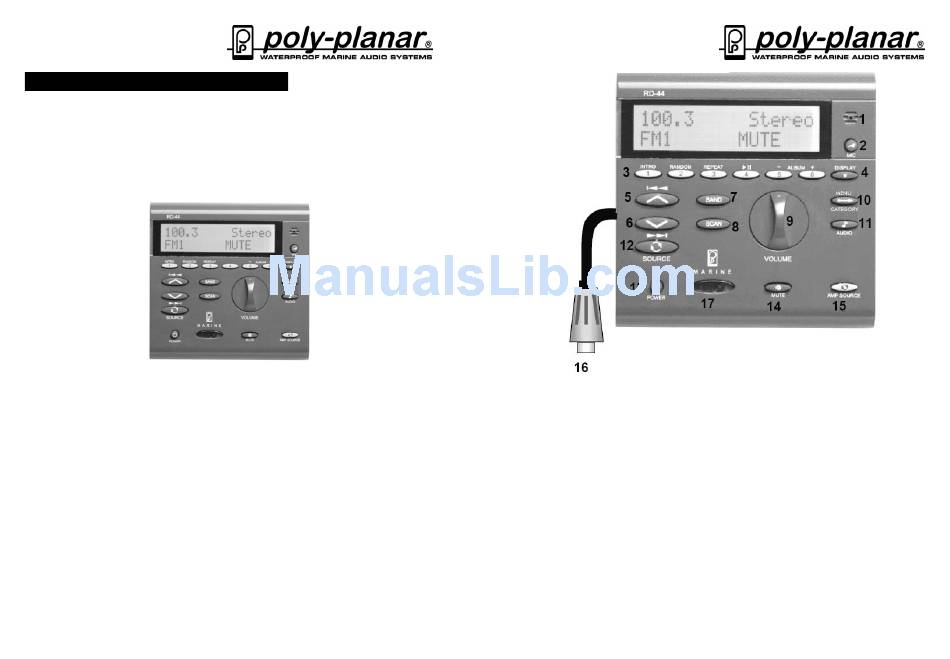

Controls
1 Microphone
2 Intercom Switch
3 Presets
4 Display Options
5 Tune/Track Up
6 Tune/Track Down
7 AM/FM Band/Preset Bank
8 Scan Channels
1
2
Poly Planar LLC 520 McCormick Dr. Glen Burnie MD. 21061 410-761-4000
9 Volume Control
10 Menu/Category/Preset Scan
11 Audio Controls
12 Audio Source Select
13 Power On/Off
14 Mute
15 Amplifier Source Select
16 Network Cable
17 Infrared Port, Ambient
light sensor
www.polyplanar.com
