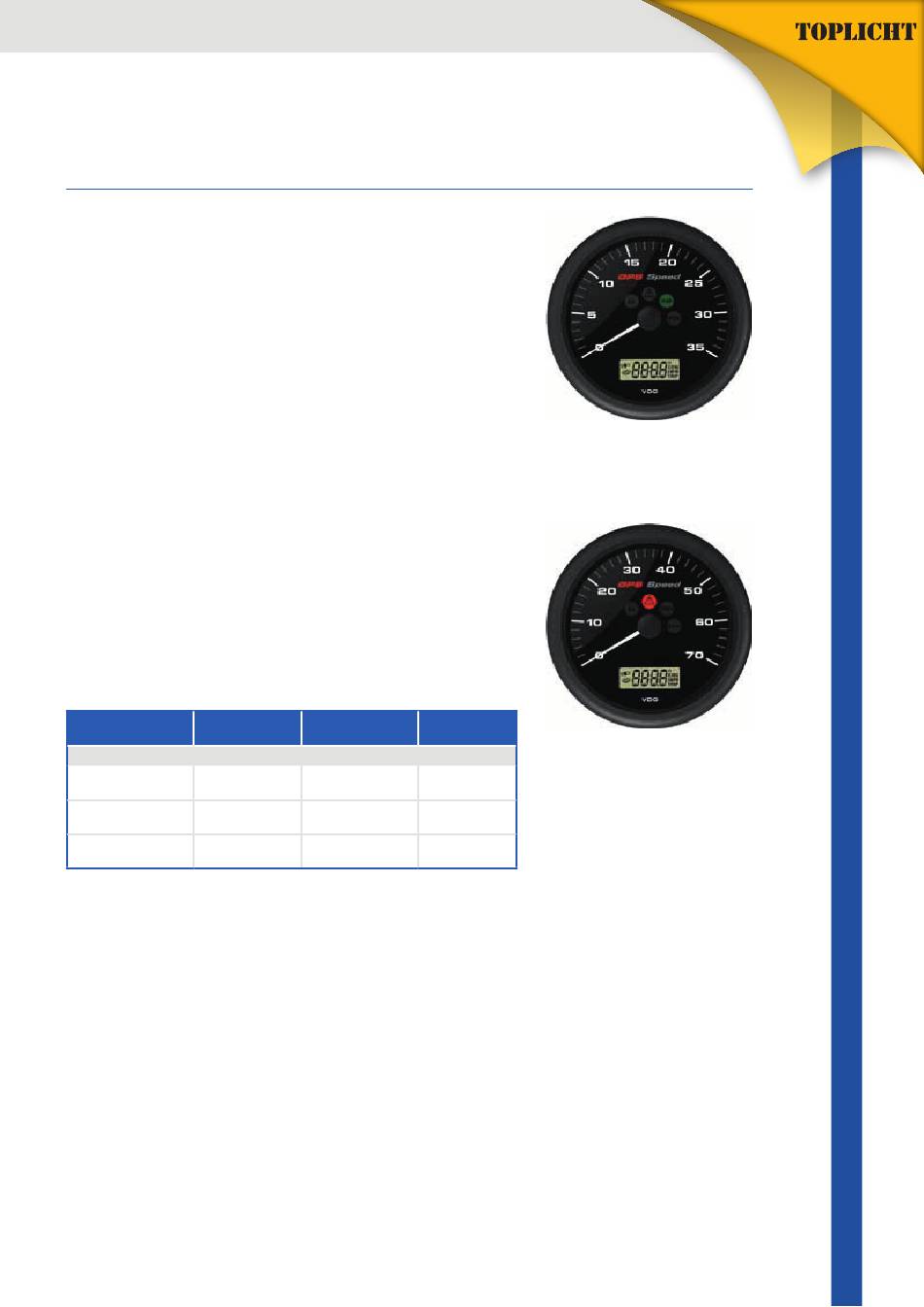

GPS Speedometer
Dieses multifunktionale Messinstrument mit Segmentanzeige ist für die
Verwendung in offenen Booten vorgesehen.
Das Kombi-Instrument basiert auf dem ViewLine-Gehäusekonzept und
vereint in sich eine ideale IP-Schutzklasse, ein modernes Erscheinungsbild
und hohe Qualitätsstandards. Es liefert viele Kenngrößen in NMEA 2000
und bietet verschiedene Anpassungsmöglichkeiten, um spezifischen
Kundenanforderungen gerecht zu werden.
• Integrierte GPS-Antenne
• Robuste und flexible Konstruktion für vielseitige Anwendungen
• CAN-Fähigkeit (NMEA 2000
• Zeiger für die analoge Anzeige der Geschwindigkeit über Grund
• Programmierbarer Geschwindigkeitsalarm
• LCD-Anzeige mit festen Segmenten
• Bündige Montage möglich
• Vorderseite mit Schutzklasse IP67
• Kompass für Kurs über Grund
• Uhr
• 110 mm Einbaudurchmesser
• 126 mm Außendurchmesser
• 50 mm Einbautiefe
Aftermarket-Paket:
GPS Speed-Messinstrument, GPS Speed-Kabel, runde Blende,
Drucktasten für Modus und Konfiguration, Spinlock-Mutter,
Kautschukdichtung, QR-Code, Sicherheitshinweise
Bereich
Spannung
Knoten / km/h / mph
Ø 110 mm
0 – 12 Knoten / km/h
8,5 – 16 V
/ mph
0 – 35 Knoten / km/h
8,5 – 16 V
/ mph
0 – 70 Knoten / km/h
8,5 – 16 V
/ mph
)
®
Betriebstemperatur
– 20 °C/+ 85 °C
– 20 °C/+ 85 °C
– 20 °C/+ 85 °C
®
GPS Speed, Anzeigebereich
0 bis 35 Knoten, km/h oder mph.
Artikelnummer
GPS Speed, Anzeigebereich
0 bis 70 Knoten, km/h oder mph.
A2C59501987
A2C59501782
A2C59501781
Schiffsausrüster
GPS Speedometer
Tel.: +49 ( 0 ) 40 - 88 90 100
www.toplicht.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A2C59501987 and is the answer not in the manual?

Questions and answers

Summary of Contents for Toplicht A2C59501987

  • Page 1 0 bis 70 Knoten, km/h oder mph. 0 – 12 Knoten / km/h 8,5 – 16 V – 20 °C/+ 85 °C A2C59501987 / mph 0 – 35 Knoten / km/h 8,5 – 16 V – 20 °C/+ 85 °C...
  • Page 2: Safety Information

    INSTALLATION INSTRUCTIONS: Viewline 110 mm 10/14 GPS Speedometer TU00-0758-5307102 Safety information No smoking! No open fire or lights! • The product was developed, manufactured and inspected according to the basic safety requirements of EC Guidelines and state-of-the-art technology. must have sufficient insulation and electric strength and the contact •...
  • Page 3: Recommended Installation

    INSTALLATION INSTRUCTIONS: Viewline 110 mm 10/14 GPS Speedometer TU00-0758-5307102 Recommended installation The GPS Speed gauge is ideally suited for horizontal mounting. Vertical mounting is also possible, however performance may be impaired. The gauge can be installed in open vessels as well as cabins. For cabin installations the signal will be stronger if the gauge can “see”...
  • Page 4: Flush Assembly

    INSTALLATION INSTRUCTIONS: Viewline 110 mm 10/14 GPS Speedometer TU00-0758-5307102 Conventional assembly. (Instrument is put into the drill hole from the front). The panel width may be within a range of 0.5 to 20 mm. The drill hole must have a diameter of 111 mm. •...
  • Page 5 INSTALLATION INSTRUCTIONS: Viewline 110 mm 10/14 GPS Speedometer TU00-0758-5307102 Depending on the configuration, insert the cable into the 8-pin contact housing according to the following pin assignment. The contacts must audibly lock into place. 8-pin contact housing Pin 1 – Power (Term. 30) – 12 VDC battery Pin 2 –...
  • Page 6: Connector Cable

    INSTALLATION INSTRUCTIONS: Viewline 110 mm 10/14 GPS Speedometer TU00-0758-5307102 Use the following connector cable to connect the instrument: Connector cable - A2C95822600 The connector cable is designed for a cable cross-section of 0.25 - 0.5 mm For other cross-sections, please use contacts made by Tyco. Single contacts: Tyco No.
  • Page 7 INSTALLATION INSTRUCTIONS: Viewline 110 mm 10/14 GPS Speedometer TU00-0758-5307102 Align the instrument and hand-tighten the fastening nut. Ensure that the nut is not tightened with a torque greater than 400 Ncm. * Make sure the seal lays flat between the panel and the front ring.
  • Page 8: Change Settings

    INSTALLATION INSTRUCTIONS: Viewline 110 mm 10/14 GPS Speedometer TU00-0758-5307102 1. Switching through display modes Press the mode button to display the course over ground screen. Press the mode button briefly (<2 sec.) to switch to the next screen. The next screen displays the UTC time. Press the mode button briefly (<2 sec.) to switch to the next screen.
  • Page 9 INSTALLATION INSTRUCTIONS: Viewline 110 mm 10/14 GPS Speedometer TU00-0758-5307102 3. In Operation 3.1 Signal strength indicator Function Gauge searching for GPS signal (no fix). Gauge has a fix, but data may be inaccurate. Gauge has a fix, but signal is weak. Gauge has a fix, signal is strong.
  • Page 10 INSTALLATION INSTRUCTIONS: Viewline 110 mm 10/14 GPS Speedometer TU00-0758-5307102 1. Connect pin 1 to terminal 30 (Bat. +) 3.3 Resetting the day counter 2. Switch on the ignition (Term. 15, pin 4) Press the mode button repeatedly until the trip distance is displayed. Press and hold the mode button for longer (>2 sec.).
