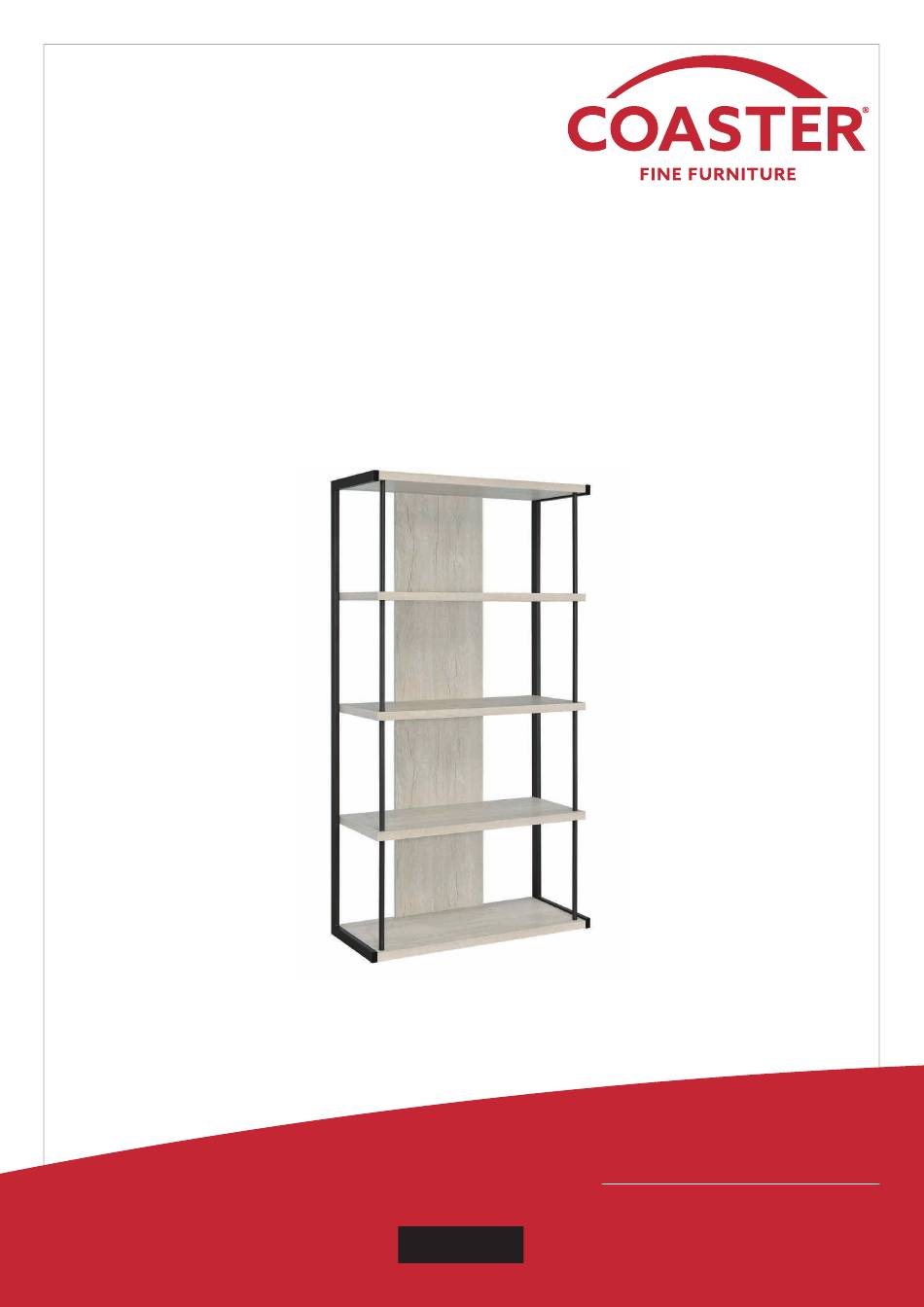

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 805884 BOOKCASE REVISION 0 : 03/09/2022 REVISION 1 : 06/27/2022 PAGE 1 OF 9 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
805884 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
805884 ITEM: HARDWARE IDENTIFICATION DESCRIPTION FIGURE Q’TY DESCRIPTION FIGURE Q’TY BOLT GLUE 15g 1 PC 6 PCS M6x61mm SR WOODEN DOWEL FLOOR PROTECTOR 10 PCS 4 PCS Ø8x30mm 40x20mm CAM BOLT 14 PCS PLASTIC FEET 4 PCS Ø7x31.5mm BLK CAM LOCK... - Page 4 805884 ITEM: STEP 1 x 10 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 2 x 14 E - 1 PAGE 4 OF 9 COASTERFURNITURE.COM...
- Page 5 805884 ITEM: STEP 3 E - 1 E - 1 E - 1 E - 1 E - 1 E - 2 E - 1 E - 2 STEP 4 Apply glue on all wooden dowels to ensure integrity of the structure.
- Page 6 805884 ITEM: STEP 5 STEP 6 x 14 x 14 PAGE 6 OF 9 COASTERFURNITURE.COM...
- Page 7 805884 ITEM: STEP 7 STEP 8 COMPLETE PAGE 7 OF 9 COASTERFURNITURE.COM...
- Page 8 805884 ITEM: 15.55" 15.75" 16.42" 35.43" 14.92" 16.42" 16.42" 16.42" 15.55" 14.92" 12.4" Note : Dimension tolerance ±5% PAGE 8 OF 9 COASTERFURNITURE.COM...
- Page 9 ANTI-TIPPING INSTALLMENT INSTRUCTIONS FURNITURE TIPPING RESTRAINT WARNING Injury may result from tipping furniture. This restraint may protect against tipping furniture. Do not allow children to climb on furniture. This restraint is not a substitute for proper adult supervision. Failure to detach this restraint before moving the furniture may result in injury and damage.
