Operating Instructions
VA7016WTC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VA7016WTC and is the answer not in the manual?

Questions and answers

Related Manuals for Atag VA7016WTC

Summary of Contents for Atag VA7016WTC

  • Page 1 Operating Instructions VA7016WTC...

  • Page 2: Table Of Contents

    You can remote control this dishwasher with your smartphone/tablet. Connect the dishwasher to your local wireless network to be able to remote control the dishwasher using the ATAG Connect Life app. The app can be used to find information, change settings and monitor the dishwasher.

  • Page 3: Safety Instructions

    Safety instructions Activate child lock (button lock) Read the operating instructions and keep them in a safe place! You can activate the child lock (button lock) to prevent children from starting the dishwasher. See the chapter Settings. Number of standard place settings: 14 Never use the dishwasher for any purpose Installation other than that specified in these operating...

  • Page 4: Before Washing For The First Time

    Connect the dishwasher to your local wireless network to be able to coating on dishes and the dishwasher. remote control the dishwasher using the ATAG Connect Life app. The app can be used to find information, change settings and monitor the Water hardness is specified using the German water hardness scale dishwasher.
  • Page 5 3. Basic settings Water hardness 0/1/2/3/4/5/6/7/8/9 Open the door and press the main power switch. Adjusting the water softener. Select a setting depending on the hardness of the water supply. It is important that this setting is correct! "This is a first time set up." is shown on the display. It is important Do not forget to put salt in the salt compartment after you have set that you choose the right settings to ensure good dishwashing results.
  • Page 6 Pair the dishwasher with your smartphone/tablet to be able to remote control the machine. Use your smartphone/tablet to download the ATAG Connect Life app (from App Store / Google play). Open the app. Register an account and log in. In the app's My Appliances menu, select Add A New Appliance and continue in the dishwasher's Settings menu.

  • Page 7: Loading The Dishwasher

    Loading the dishwasher Greener dishwashing Fragile dishes Do not rinse under running water Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged Simply scrape off large food particles before loading the dishwasher. by dishwashing detergent.

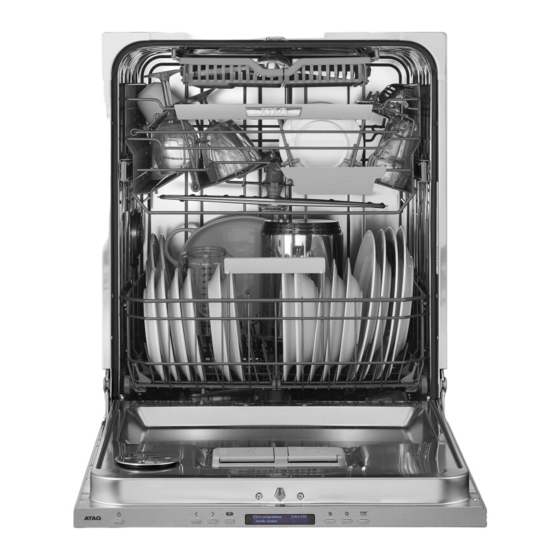

  • Page 8 The dishwasher's baskets The dishwasher is equipped with a top cutlery tray, an upper basket and a lower basket with a cutlery basket. The appearance of the baskets may differ depending on the dishwasher setup. Top cutlery tray The top cutlery tray has space for cutlery, ladles, whisks, serving cutlery and similar items.
  • Page 9 Washing large plates Move foldable tines and their mounts to widen the distance between the tine rows to adapt the lower basket to plates with a diameter greater than 25 cm. Cutlery basket Place cutlery with the handles facing down, except for knives, and spread them out as much as possible.

  • Page 10: Using The Dishwasher

    Press to open Connect the dishwasher to your local wireless network to be able to remote control the dishwasher using the ATAG Connect Life app. The app can be used to find information, change settings and monitor the dishwasher. You can even start and cancel a programme.
  • Page 11 Open the door and press the main power switch. Starting the dishwasher START STOP 2:00 Speed mode Select the programme Select a programme mode Select any options Hygiene wash The main power switch This programme is ideal to use where demands on hygiene are extra high, e.g.
  • Page 12 The programme has started, but you can still load more dishes. Flashing blue indicates that Remote start is activated. In the ATAG Connect Life app, select the desired programme and start the dishwasher.

  • Page 14: Settings

    Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the Navigation button until Settings menu is shown on the display and confirm your selection with the mode selector To exit the dishwasher's Settings menu, select Exit and confirm your selection with the mode selector Navigation buttons for choosing setting Mode selector to confirm current setting START...
  • Page 15 Turn off network/Turn on network Connect the dishwasher to your local wireless network to be able to remote control the dishwasher using the ATAG Connect Life app. Once you have connected the dishwasher, you can select Turn off network to deactivate the connection.
  • Page 16 Network Device pairing Pair the dishwasher with your smartphone/tablet to be able to remote control the machine. Use your smartphone/tablet to download the ATAG Connect Life app (from App Store / Google play). Open the app. Register an account and log in.

  • Page 17: Care And Cleaning

    Care and cleaning Fine filter Top up rinse aid Debris that collects on the fine filter is automatically rinsed away during When the rinse aid needs topping up, the above symbol lights on the each wash. Clean the fine filter when necessary. display.
  • Page 18 Unblocking the drainage pump If the dishwasher still contains water after the programme has finished, something may be blocking the drainage pump. Such items are easily removed. 1. Turn off the machine using the main power switch and unplug it from the wall socket.

  • Page 19: Troubleshooting

    Troubleshooting Type of fault on the display Action Overfilling water 1 Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. Water outlet fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department.
  • Page 20 Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings blocked. Clean the spray arms. See the chapter Care and cleaning.
  • Page 21 Problem Possible causes Action The dishwasher has not been connected to the Connect the dishwasher to the local network. The dishwasher's network symbol is not lit. local network. See Network in the chapter Settings. The dishwasher has no connection to the local Check the connection to the router and that the network.

  • Page 22: Technical Information

    Privacy statement, terms and conditions When using the ATAG Connect Life app we will request you to agree to the applicable Privacy Statement and the Terms and Conditions for the use of the app / website. In case of an update, in which the conditions could also change, we will request from you to agree again.

  • Page 23: Installation

    Installation [mm] 1198 30-94 *Remove locking nuts for an installed height of 820-821 mm. **Door length. Nominal dimensions. Actual measurements may vary. It is important that you read through and follow the instructions and directions below. Conduct installation and connection in accordance with the separate installation instructions. Make sure the area on which the dishwasher is to be installed is Safety instructions firm.

  • Page 24: Service

    Service Read the chapter Troubleshooting before contacting the service Drainage connection department. If you have encountered a problem that you cannot resolve, See the separate installation instructions for necessary information. please contact your nearest dealer. This dishwasher is suitable for installing in a raised recess (to attain When making contact, provide the details on the serial number plate.

  • Page 25: Information For Test Institute

    Information for test institute Request test institute information via e-mail dishwashers@appliance-development.com. The request should include the details on the serial number plate. Include the article number (1) and the serial number (2). ART. NO. SERIAL NO.

  • Page 26: Your Notes

    Your notes...
  • Page 27 Your notes...

  • Page 28: Quick Guide

    To remote start the dishwasher, press the navigation buttons until Remote start active appears on the display. Close the door. In the ATAG Connect Life app, select the desired programme and start the dishwasher. The dishwasher can always be used without the app. See below.
