Features
• 5 Channel Amplifier with AccuBASS® Processing
• Configurable as 3 or 5 channels
• 4 x 100 W @ 4 Ohms + 1 x 300 W @ 4 Ohms
• 4 x 200 W @ 2 Ohms + 1 x 500 W @ 2 Ohms
• High Current Design
• 6 RCA Line Inputs
• 8 Summable Speaker-Level Inputs for OEM integration
• MILC
Level Matching Technology (Patent pending)
TM
• GTO
TM
Signal Sense (Great Turn On)
• Independent 12 dB Linkwitz-Riley Crossovers
• Optional ACR-1 Dash Remote
• Non-GMO, Grade AA goodness

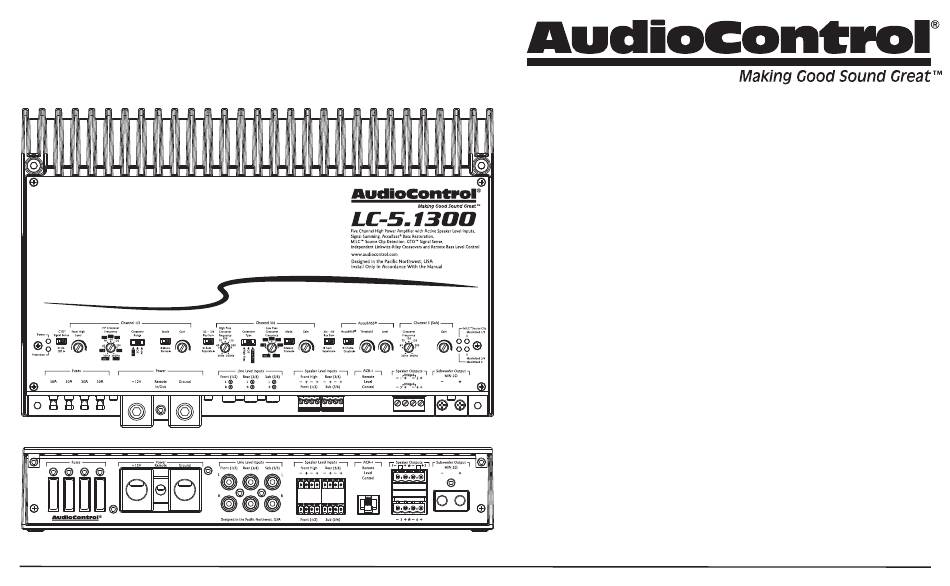

LC-5.1300
High Power Five Channel Amplifier
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AudioControl LC-5.1300
Summary of Contents for AudioControl LC-5.1300
- Page 1 • 8 Summable Speaker-Level Inputs for OEM integration • MILC Level Matching Technology (Patent pending) • GTO Signal Sense (Great Turn On) • Independent 12 dB Linkwitz-Riley Crossovers • Optional ACR-1 Dash Remote • Non-GMO, Grade AA goodness LC-5.1300 High Power Five Channel Amplifier Quick Start Guide...
-
Page 2: Important Safety Instructions
LC-5.1300 Important Safety Instructions Read these instructions. 14. This apparatus shall not be exposed to dripping or splashing, and no object filled with liquids, shall be placed on the apparatus. Keep these instructions. 15. Fuses shall be replaced only with the correct type and fuse value, and Heed all warnings. -
Page 3: Connection Panel Features
LC-5.1300 will turn on. Alternatively, level control. this terminal will output +12V if the LC-5.1300 turns on using GTO 8. Speaker-Level Output Terminals – These screw terminals signal sensing. This can be used to remotely turn-on power ampli- connect with speaker wire to your loudspeakers Make sure that fiers when the LC-5.1300 is awoken by the GTO. - Page 4 LC-5.1300 Control Panel Features 10 11 15 16 17 18 20 21 22 25 26 Quick Start Guide...
- Page 5 If the crossover switch is set to bandpass, then this selects the top frequency of the band. 11. GTO Signal Sense – In the ON position, the LC-5.1300 amplifier will turn on gracefully when it detects an incoming audio signal 19.
- Page 6 LED will fulfill its prime objective and shine forth. The long-awaited moment when “plethora” is used in a manual The plethora of LC-5.1300 controls allows for a wide variety of in- With this advanced feature, you are able to optimize the level of stallation possibilities.
-
Page 7: Quick Start
Quick Start Here are a few general steps to get your LC-5.1300 amplifier up and 8. Connect the Ground terminal of the unit to the chassis of the running: vehicle, using the same wire gauge as the +12V power wire. - Page 8 LC-5.1300 amplifier when an audio input signal is de- unit is turned on, it will turn on the LC-5.1300 amplifier. tected on inputs 1 and 2. In this case, the LC-5.1300’s remote input terminal becomes a +12V trigger out to remotely turn on a power Use 4 to 0 AWG insulated wire for the +12V and Ground connec- amplifier for example.
- Page 9 System #1: Using speaker-level inputs Front left/right Speaker-level output 90 Hz and above Factory Radio Rear Speaker-level output Front Speaker-level output Rear left/right Speaker-level output 90 Hz and above ACR-1 Speaker-level output 90 Hz and below Notes: The +12V Power and Ground connections are not shown (see page 8) Speaker outputs 1 and 2: Stereo, 90 Hz and above, plays inputs 1 and 2 Subwoofer Speaker outputs 3 and 4: Stereo, 90 Hz and above, plays inputs 3 and 4...
- Page 10 LC-5.1300 System #2: Tri-amping Front L/R tweeters Speaker-level output 3.5 kHz and above Factory Radio Front L/R Woofers Speaker-level output Front Speaker-level output 90 Hz to 3.5 kHz ACR-1 Subwoofer Speaker level output 90Hz and down Notes: The +12V Power and Ground connections are not shown Speaker outputs 1 and 2: Stereo, 3.5 kHz and above, plays inputs 1 and 2, no AccuBASS or ACR-1 effect...
- Page 11 System #3: Using optional ACX-BT1 Bluetooth receiver Front left/right Speaker-level output 90 Hz and above ACX-BT1 Rear left/right Speaker-level output 90 Hz and above ACR-1 Speaker-level output 90 Hz and below Notes: The +12V Power and Ground connections are not shown Subwoofer Speaker outputs 1 and 2: Stereo, 90 Hz and above, plays inputs 1 and 2, AccuBASS is on, ACR-1 adjusts level of all outputs Speaker outputs 3 and 4: Stereo, 90 Hz and above, plays inputs 1 and 2, AccuBASS is on, ACR-1 adjusts level of all outputs...
- Page 12 The AudioControl ACR-1 dash control is a remote level for your The top lid must be removed to gain access to the controls, and then LC-5.1300 amplifier. It may be mounted under the dash using its own put back on again to protect the controls from dust bunnies.
-
Page 13: Specifications
Specifications All specifications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously change our specifica- tions, like our Pacific Northwest weather, although we are working on a surround-sound umbrella as well. LC-5.1300 Multi-Channel Amplifier LC-5.1300 Amplifier Codes:... -
Page 14: Block Diagram
LC-5.1300 Block Diagram Inputs Level Power Amplifiers Active Speaker Level Speaker 4 x 200 W @ 2 ohm Speaker Level Front High Outputs Conversion Variable HP Mono/ Gain Crossover Stereo Bridged Active Signal Sense Speaker Level Speaker Level Front (1/2)
