Summary of Contents for SECURICO VENUS

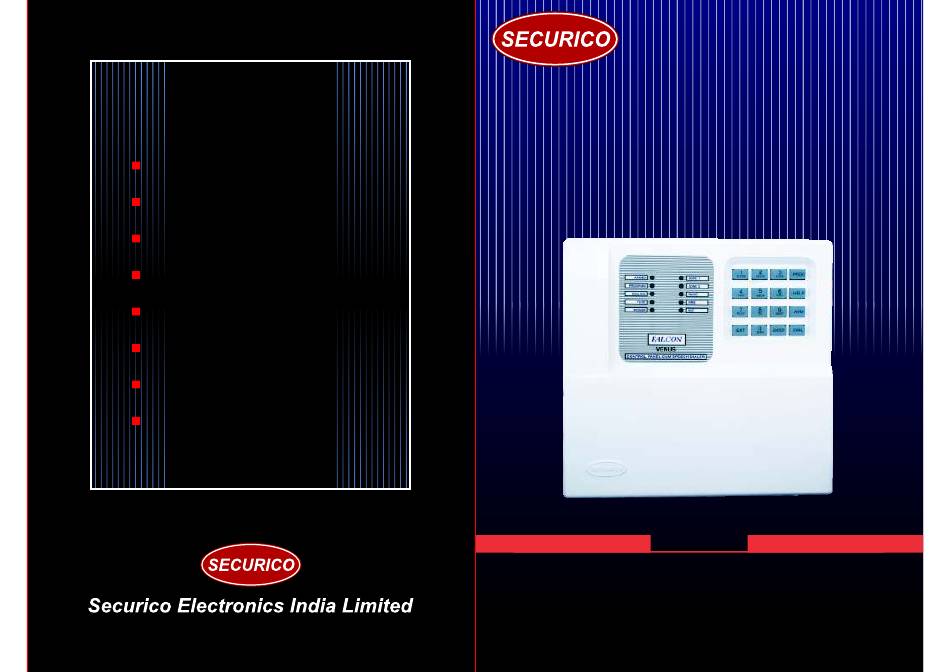

- Page 1 WIRELESS INTRUDER ALARM SYSTEMS HYBRID INTRUDER ALARM SYSTEMS AUTOMATION & IP SYSTEMS VIDEO DOOR PHONES STAND ALONE PIR MOTION SENSORS FIRE ALARM SYSTEMS GUARD MONITORING SYSTEMS VENUS User Manual User Manual User Manual Manufacturers of World Class Security, Fire & Automation Systems www.securicoelectronics.com...
-
Page 3: Armed Mode
ARMED MODE The system is in the armed mode when all active* zones are operational and can bring the system into alarm state. *certain zones can be temporarily omitted from the system. See section 2-6. 1-2 ZONES There are four types of zones in the control panel: ENTRY/EXIT: An entry/exit zone will actively raise an alarm only if the system is Armed. -
Page 4: Factory Settings
FIRE : A Fire zone is a 24 hour zone and will raise an alarm in case a fire is detected irrespective of whether the system is armed or disarmed. In the case of an alarm, the sounders will be activated and the automatic speech dialer will call all programmed numbers and play the corresponding emergency messages. - Page 5 Press ENTER *If the two codes entered do not match, the system will sound fast error Press ARM beeps and return to day mode. The previous code will be retained. Press 0 (Please see Factory Settings in Section 1-3) Enter MASTER CODE Enter MASTER CODE to disarm the whole system.
- Page 6 *If the time entered is not within the specified time range, the system will Press PROG sound fast error beeps and return to day mode. The previous Sounder PROGRAM LED will glow delay will be retained. Press ZONE Press PROG Press SERV to change SERVANT ZONES Press PROG - Enter MASTER CODE...
- Page 7 Enter MASTER CODE Enter MASTER CODE PROGRAM LED will blink PROGRAM LED will blink Press PROG Press PROG PROGRAM LED will glow PROGRAM LED will glow Press REC Press TEL Press PROG Press PROG Press 1 to record Intrusion Message 2 or to record fire message Press 1 to set intrusion message numbers 2 or to set fire The recording will start and you must record the message within message numbers...
-
Page 8: Power Supply
ELECTRICAL Quiescent current: 75m A typical Current with dialing & massage play: 160m A If the user has FORGOTTEN the code, the panel has to be RESET to Maximum sounder1 current output: 1A FACTORY SETTINGS Maximum sounder2 current output: 1A To reset to Factory Settings : Sounder saturation Voltage: <1V at 1A Disconnect all power supply and the battery from the main... - Page 9 1) +Z1- To ZONE NO. 1 Devices (Short with jumper if not applicable 2) +Z2- To ZONE NO. 2 Devices (Short with jumper if not applicable 3) HELP To PANIC ZONE Devices (Short with jumper if not applicable 4) FIRE To FIRE ZONE Devices (Short with jumper if not applicable 5) -HT1+ To SOUNDERS...
- Page 10 - 14 -...
