Summary of Contents for ShopBot MAX

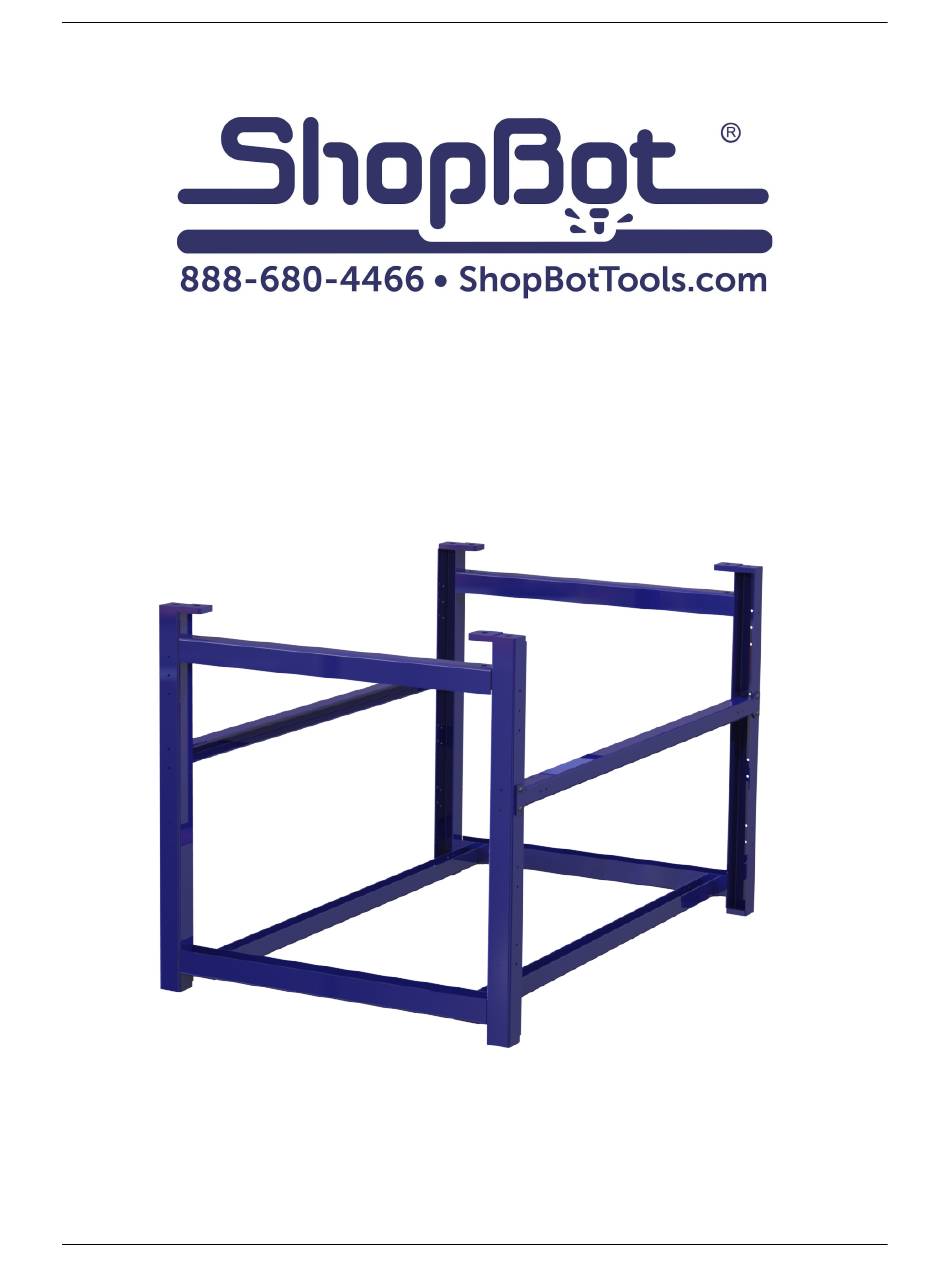

- Page 1 Desktop Stand Assembly and Usage Doc ID: Part SBG00607 Desktop Stand MAX Assembly and Usage © Copyright Apr, 2023 ShopBot Tools, Inc.
-
Page 2: Table Of Contents
Desktop Stand Assembly and Usage Doc ID: Part SBG00607 Table of Contents Introduction Stand Assembly Caster Wheel Kit 006317 (Optional) Invision Enclosure Mounting Kit 006384 (Optional) Routing the Dust Hose © Copyright Apr, 2023 ShopBot Tools, Inc. -
Page 3: Introduction
Introduction The ShopBot Desktop Stand is designed to serve as a convenient, space-efficient place to mount your ShopBot Desktop tools. It is compatible with either the D3624 DT2 Desktop MAX or the D3624 DT2 Desktop MAX ATC. Recommended Tools (including ones used to install addons): -1/2”, 9/16”, and 5/8”... - Page 4 Desktop Stand Assembly and Usage Doc ID: Part SBG00607 Part lists for optional accessory kits: 006384 DT Stand MAX Enclosure Kit (Optional) 006317 DT Stand Caster Kit (Optional) © Copyright Apr, 2023 ShopBot Tools, Inc.
-
Page 5: Stand Assembly
The distance between them should be roughly equivalent to the length of your stand struts (006309 for D3624 or 006310 for D2418). <Overhanging tabs on the bottom © Copyright Apr, 2023 ShopBot Tools, Inc. - Page 6 Hold up the remaining stand struts one at a time to the sides of the stand and use 4 BHSCS ¼-20 x ⅝” to secure each one. Do not tighten the side struts all the way. Now go back and tighten the screws on the first two struts. © Copyright Apr, 2023 ShopBot Tools, Inc.
- Page 7 Remove the nuts on the levelers, then screw the levelers into the threaded holes on the bottom of each leg as far as they will go. Reattach the nuts to the end of the threaded studs inside the legs. © Copyright Apr, 2023 ShopBot Tools, Inc.
-
Page 8: Caster Wheel Kit 006317 (Optional)
Attach the caster wheels into the holes next to the stand struts. Use a ⅜” Flat Washer (000444) and the included nut to secure them. You will need to use a 9/16” deep socket to reach the nut. © Copyright Apr, 2023 ShopBot Tools, Inc. - Page 9 If you also purchased an Invision Enclosure Mounting Set, continue on to the next page for installation instructions. © Copyright Apr, 2023 ShopBot Tools, Inc.
-
Page 10: Invision Enclosure Mounting Kit 006384 (Optional)
There are two different types of support brackets for the Invision Enclosure, small (006314) and large (006315). They will be attached to the corners of the stand as shown with the two larger brackets being located on the same side as the VFD. © Copyright Apr, 2023 ShopBot Tools, Inc. - Page 11 ⅝” each. Make sure they are attached to the upper two of the three holes on each leg, using the two smaller holes on the bracket. Just like with the large brackets, the flanges on each side should be facing each other. Do not tighten all the way. © Copyright Apr, 2023 ShopBot Tools, Inc.
- Page 12 Desktop Stand Assembly and Usage Doc ID: Part SBG00607 Lay the 2 DT Stand General Side Enclosure (006311) and 2 DT Stand MAX Side Enclosure (006312) across the brackets. Parts 006311 should go across the tool’s Y-axis and parts 006312 should go across the X-axis.
- Page 13 Use 8 BHSCS 5/16-18 x ¾” (002033) to secure the enclosure from underneath each bracket. They should thread up and into the T-slot on the bottom of the enclosure’s frame. They do not need to go in all the way as long as the enclosure is secure. © Copyright Apr, 2023 ShopBot Tools, Inc.
-
Page 14: Routing The Dust Hose
Secure the top of the hose with zip-ties. Tighten the band around the base of the hose. It does not need to be tightened all the way, it’s okay for the hose to move up and down the vacuum tube a little. © Copyright Apr, 2023 ShopBot Tools, Inc. - Page 15 The first connection should be somewhat loose, try moving the YZ-car back and forth to make sure that the hose routes accordingly. © Copyright Apr, 2023 ShopBot Tools, Inc.
- Page 16 The dust hose has now been installed properly. Make sure to run the squaring routine and home the tool with C3 before using it. Any crashes that occurred while moving each axis to its extremes may have thrown off the tool’s calibration. © Copyright Apr, 2023 ShopBot Tools, Inc.
- Page 17 Desktop Stand Assembly and Usage Doc ID: Part SBG00607 You have now finished setting up your ShopBot Desktop Stand. If you have any questions or issues with the product, feel free to contact us through one of the methods below. If your question pertains to a missing or damaged part, please include the relevant part number in your message.
