Pyramid 901GC Instruction Manual

Multi - band graphic equalizer
Hide thumbs
1
2

Advertisement

Quick Links

Enlarged version

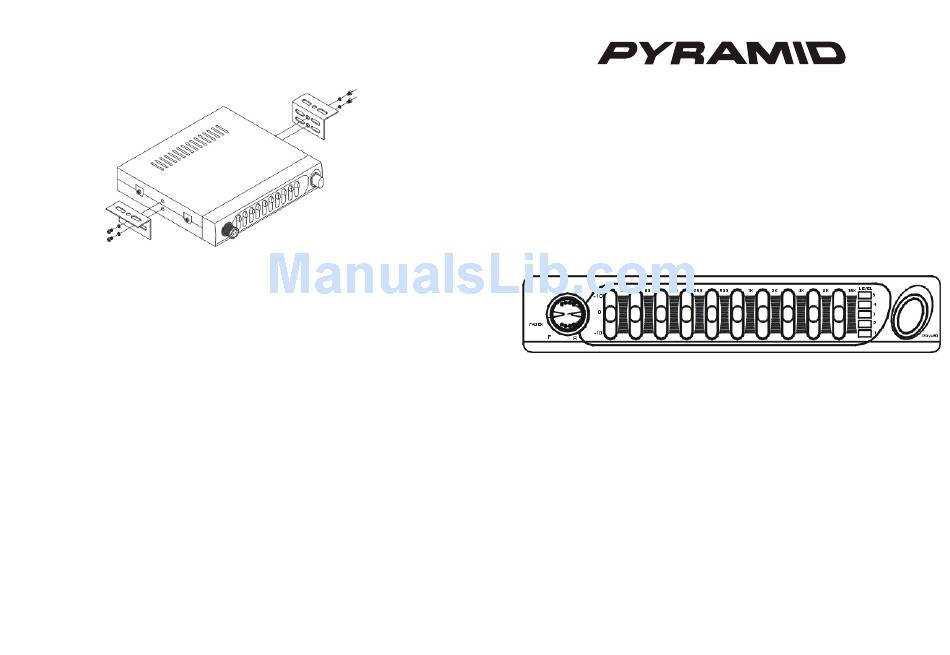

INSTALLATION
INSTRUCTION MANUAL
SPECIFICATION
NORMAL
EQ Center Frequencies...............................................................10 BAND.
Equalization Range.......................................................................+/- 10dB
Frequency Response @ 3dB Down..........................................20Hz - 20KHz
Channel Separation...........................................................................45dB
200 WATTS OUTPUT
T.H.D. @ Reference Output.................................................................0.5%
10% T.H.D. Output Power.............................................6X4CH./16X2CH.W
MAX. Output Power.....................................................2X100/4X50 Watts
BEFORE INSTALLATION /OPERATION
Power Requirements : 11-16V DC negative ground, 5 Amp, Maxiam.
READ THIS MANUAL COMPLETELY
Accessories included : Mounting brackets for optional under-dash, mounting
trimplate.
Dimensions [W X H X D] : 153 X 27 X 121mm.
MODEL: 901GC
Due to out continuing efforts towards product improvement, the above
specifications are subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 901GC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyramid 901GC

Summary of Contents for Pyramid 901GC

  • Page 1 Accessories included : Mounting brackets for optional under-dash, mounting trimplate. Dimensions [W X H X D] : 153 X 27 X 121mm. MODEL: 901GC Due to out continuing efforts towards product improvement, the above specifications are subject to change without notice.

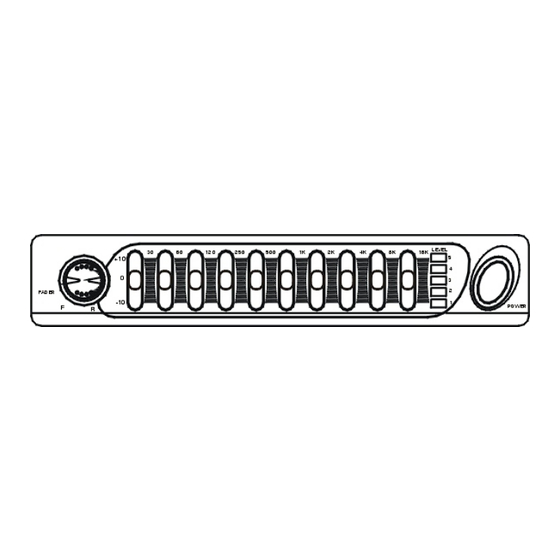

  • Page 2: Location And Function Of Control

    This model is intended for those who value the acoustic benefits of a multi - band Graphic Equalizer but who also desire higher audio power level capabilities than can be obtained in an in-dash unit. Being a passive Equalizer, it contain power amplifiers to drive speakers directly, Also provides one stereo signal line output and 1 pair sub-woofer output can be connected to remote high- power amplifiers.
