Summary of Contents for UKIAH LOOM X TK-1015-LX

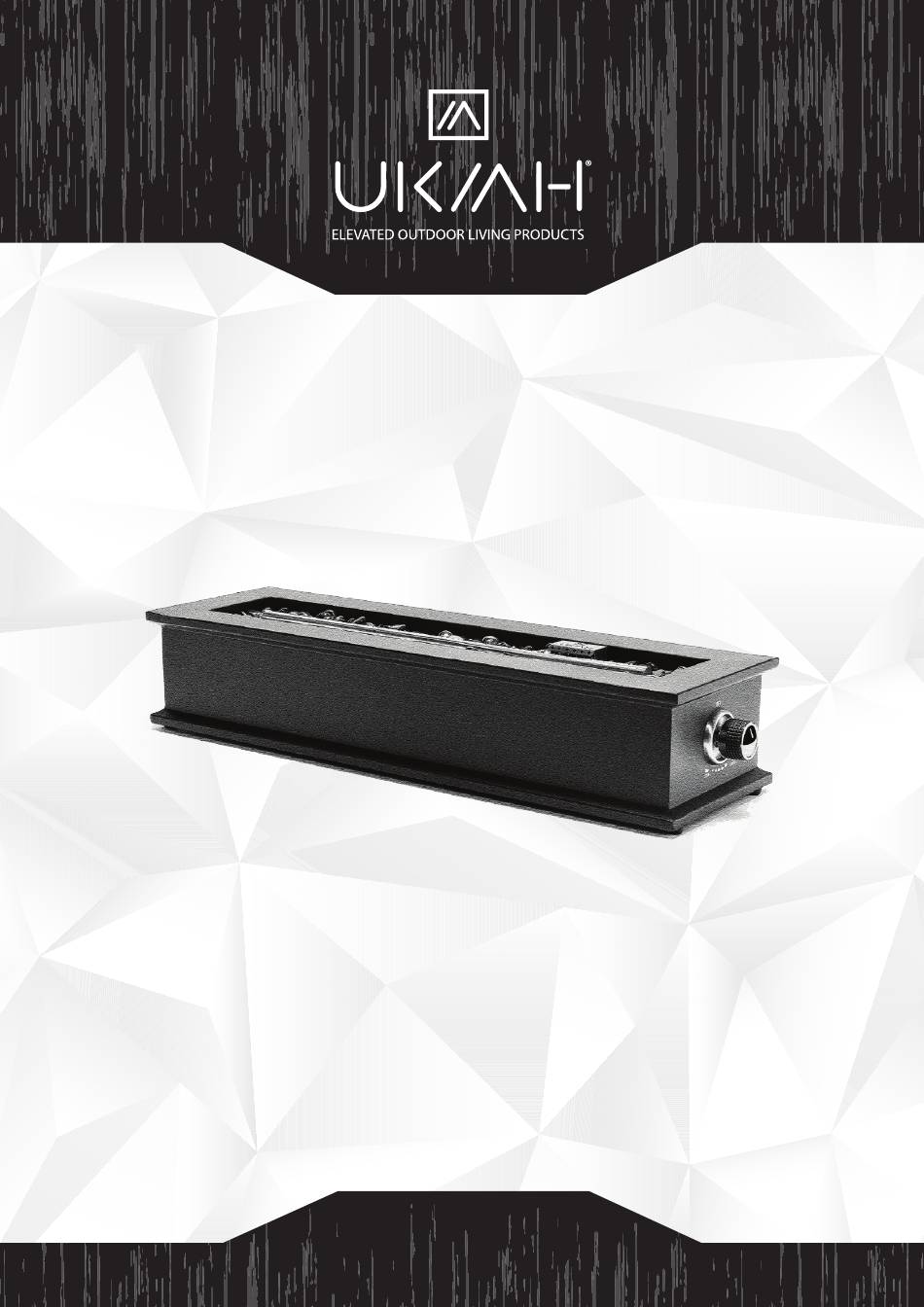

- Page 1 L O O M X M A N U A L TK-1015-LX | 7 2802848398 7 .UKIAHCO.
- Page 2 DANGER FIRE OR EXPLOSION HAZARD If you smell gas: Shut off gas to appliance. Extinguish any open flame. If odor continues, leave the area immediately. After leaving the area, call your gas supplier or fire department. Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.
-
Page 3: Safety Information
SAFETY INFORMATION WARNING Please read these setup and operating instructions carefully before setup, operation or service of this gas fire pit. Do not operate if you are uncertain as to the meaning of any instructions or warnings. Improper installation, adjustment, alteration, maintenance, service or use of this product may result in property damage, personal injury or the potential loss of life. - Page 4 WARNING: Do NOT attempt to move fire pit when in use. WARNING: Always keep children and pets away from fire pit. WARNING: Never lean over the fire pit when lighting or in use. WARNING: Do NOT attempt to repair or alter the pressure regulator for any assumed defect. Any modification to this assembly will void your warranty and create the risk of a gas leak and fire.
- Page 5 WARNING: Special care must be taken to keep children and pets away from hot surfaces. WARNING: Deaths, serious injury or damage to property may occur if the above is not followed exactly. DANGER - If you smell gas fumes: 1. Shut off gas to the appliance by turning the fuel knob to “OFF” and turn LP tank off. 2.
- Page 6 WARNING Keep out of reach of children. The content of this package includes small parts and cords that can cause choking or strangulation. WARNING Fuels used in gas or oil-fired appliances, and the products of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
- Page 8 ™ WELCOME TO THE UKIAH Co. FAMILY Based in the Pacific Northwest, Ukiah Co. was founded with a mission to offer the world products never before seen in the outdoor living market. Our goal is to offer affordable, top quality outdoor entertainment with unique and trend-setting styles that bring people together.
-
Page 9: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION PAGE 3 PRODUCT DIAGRAMS PAGE 7 GENERAL INFORMATION PAGE 10 LEAK TESTING PAGE 11 LIGHTING SAFETY PAGE 12 BEFORE USE PAGE 13 SETUP INSTRUCTIONS PAGE 14 LIGHTING INSTRUCTIONS PAGE 15 MAINTENANCE & STORAGE PAGE 16 TROUBLE SHOOTING PAGE 17 WARRANTY... -
Page 10: General Information
GENERAL INFORMATION • This device can produce carbon monoxide that has no odor. Never use in an enclosed space of any kind, including but not limited to the inside of a home, garage or building. Use in such an enclosed space can be potentially fatal. •... -
Page 11: Leak Testing
7. A leak is identified by a flow of bubbles from the area of the leak. 8. If a leak is detected, close the gas cylinder “shut-off” valve, tighten the connection and retest (Step 5) 9. If the leak persists, do not attempt to operate appliance and contact Ukiah Co. -
Page 12: Lighting Safety
LIGHTING SAFETY FOR YOUR SAFETY, READ BEFORE LIGHTING • Make sure you are familiar with the owner’s manual and you understand all precautions noted. • Before operating, smell around the appliance and next to the ground for gas odors because some gases are heavier than air and may settle on the ground. -
Page 13: Before Use
BEFORE USE IGNITION BATTERY 1. Install one AA battery for the electronic ignition located inside of the unit (AA battery included). Unscrew igniter cap counterclockwise, insert battery with positive side facing out, then tighten igniter cap back on (make sure the battery is installed the proper direction). -
Page 14: Setup Instructions
SETUP INSTRUCTIONS REGULATOR CONNECTIONS: Your Ukiah Co gas fire pit is equipped with a specialized pressure regulator, which is a device to control and maintain uniform gas pressure as gas is released from the LP cylinder. This pressure regulator is designed for vapor withdrawal. -
Page 15: Lighting Instructions
LIGHTING INSTRUCTIONS WARNING: Before lighting, remove weather cover and remove lid when applicable. WARNING: DO NOT stand with your head or arms over the fire pit at any time. 1. Make sure gas control knob on unit is set to “OFF”, then turn on the gas supply. -
Page 16: Maintenance & Storage
MAINTENANCE 1. The appliance should be inspected before initial use and inspected at least annually by a qualified service technician. 2. Tampering or failure to follow all directions and warnings is DANGEROUS and voids all warranties. Any component found to be faulty or damaged must be replaced by a qualified service technician with an approved component. 3. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Propane cylinder is frosted over. Wait until the propane cylinder warms up and becomes unfrosted. Burner won’t light. Blockage in orifice. Clear blockage. Control knob is not in ON position. Turn control knob to ON. Gas pressure is low. -
Page 18: Warranty
• In no event will Ukiah Co., its directors, officers or agents be liable to the purchaser of this device or any third party, whether in tort, or in contract, or on any other basis, for any indirect, special, punitive, exemplary, consequential, or incidental damage, loss, or cost arising in connection with or out of the sale, use, maintenance, or inability to use the product, even if Ukiah Co. - Page 19 • No distributor, dealer, retailer, reseller, vendor, sales person or other person is authorized by Ukiah Co. to modify the terms of this Limited Warranty or to make any warranty, promise, or representation which is different from, in addition to, or inconsistent with the warranties, promises, or representations expressly set forth in this Limited Warranty.
- Page 20 I G N I T E T H E M U S I C ™ .UKIAHCO. © UKIAH CO. 2020 ALL RIGHTS RESERVED // PATENTED SEE WWW.UKIAHCO.COM...
