Product name: DAB Receiver & Voice Recorder
Model name: DDR-4200
Thank you for purchasing PORTABLE DIGITAL AUDIO PLAYER from DIASONIC.
Please carefully Read the Instruction manual for safe use of the product. We
recommend you to keep this instruction manual for future reference.

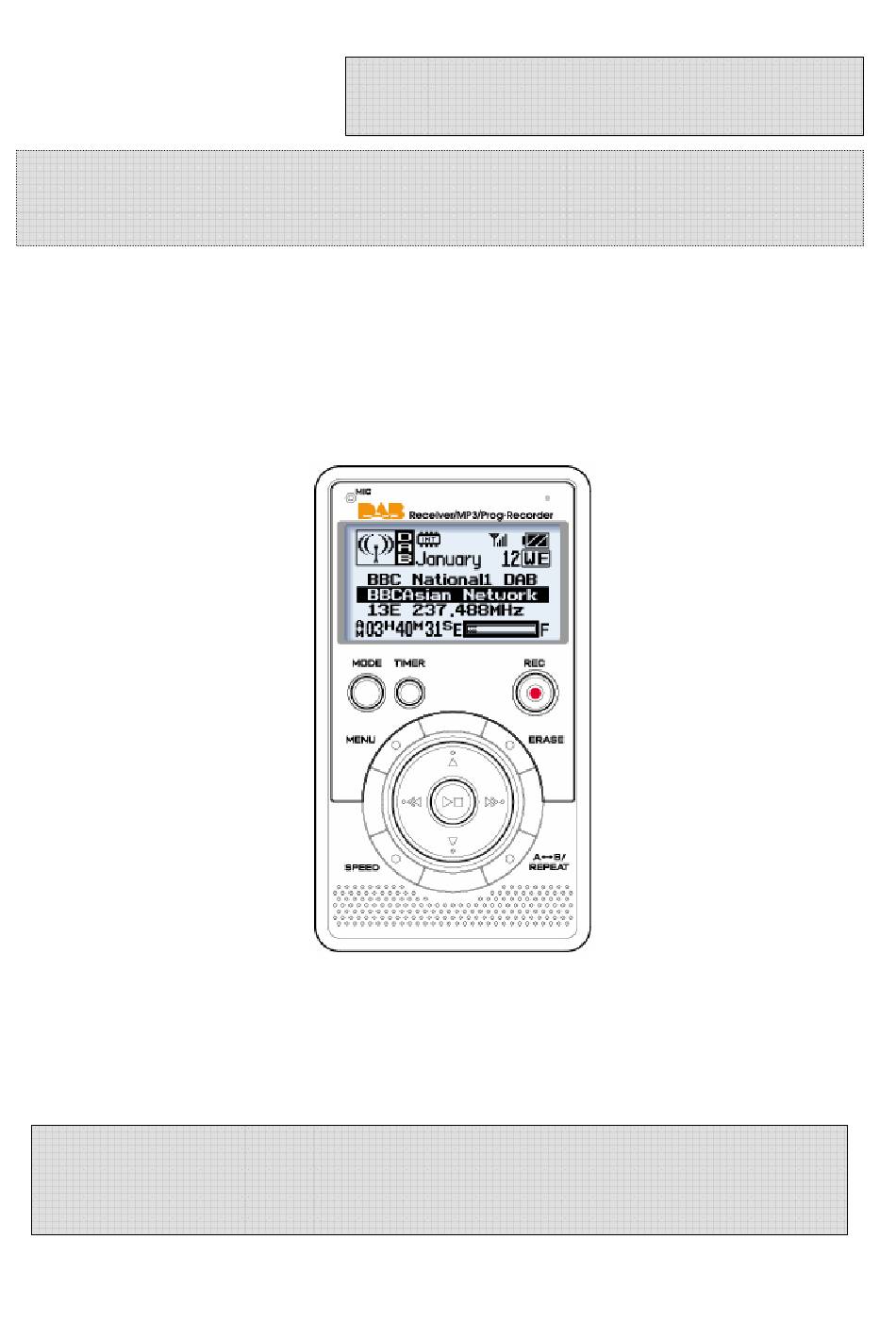

DAB & FM Receiver & Digital Voice Recorder &
User's Guide manual
1
Audio Player

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDR-4200 and is the answer not in the manual?

Questions and answers

Related Manuals for DAB DDR-4200

Summary of Contents for DAB DDR-4200

  • Page 1 DAB & FM Receiver & Digital Voice Recorder & Audio Player Product name: DAB Receiver & Voice Recorder Model name: DDR-4200 User’s Guide manual Thank you for purchasing PORTABLE DIGITAL AUDIO PLAYER from DIASONIC. Please carefully Read the Instruction manual for safe use of the product. We...

  • Page 2: Information To The User

    INFORMATION TO THE USER ※ WARNING Changes or modifications not expressly approved by the manufacturer could void the user’s authority operate the equipment. This device complies with Part 15 of the FCC Results. Operation is subject to the following two conditions: (1) This Device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Safety Precautions

    ● We are not responsible for any loss of files caused by any reason. ● Do not repair, disassemble or make modifications to Receiver. ● Do not use DAB Receiver in any area designated No Electronic Devices like airports or medical facilities. ● Do not operate while driving.
  • Page 4 ● Repeat (NORMAL/SECTION REPEAT/1 TRACK/ALL TRACK) ● Download and playback of MP3 Files ● Real time or reserved FM RECEIVER RECORDING function ● Real time or reserved DAB RECEIVER RECORDING function ● DAB/FM PRESET CH function ● DAB Region setting EUROPE (9) or USA (10) ●...

  • Page 5: Parts And Components

    Ear phone Mode File Up Hold On/Off External Timer Memory Slot Menu Erase Rewind Forward Reset Speed A↔B/Repeat File Down Play/Stop USB Jack 2) LCD Memory Type DAB Received Indicator Mode Selection Battery Strength Date & Weekdays Ensemble File Info/Frequency...
  • Page 6 Check the polarities of the batteries if the LCD Display doesn’t turn ON after inserting new batteries. ※ Note If you do not use DAB Receiver for a long time, the batteries may be run down naturally. Take out the batteries if you do not plan on using DAB Receiver for a long time.
  • Page 7 When the lock button is in the upper position, the player is in HOLD and will not operate. Use this recorder & player only after checking the lock switch is released from the HOLD position. HOLD OFF HOLD ON Released Player not operable VOICE/DAB/FM/MP3 Buttons ● VOICE MODE (VOICE)
  • Page 8 (push erase to confirm when blinking) Showa remaining Showa remaining record time in REMAIN ㅡ record time in voice mode voice mode VOL+ Volume+ Volume+ Volume+ VOL- Volume- Volume- Volume- HOLD ON/OFF ON/OFF ON/OFF ● DAB/FM Receiver Domain (RECEIVER/KEY Operation)
  • Page 9 Changes to the next preset ㅡ Changes to the previous preset ㅡ, SEEK TUNNING ㅡㅡ AUTO TUNNING ㅡ SEEK TUNNING/AUTO TUNNING ㅡㅡ MODE ㅡ VOICE/DAB/FM/MP3 ㅡ Checks TIME and reserved settings TIMER ㅡㅡ Sets and modifies TIME VOL+ VOLUME+ VOLUME+ VOL- VOLUME- VOLUME-...
  • Page 10 Selects from the ㅡ Repeats playing section between A-B external/internal memory REPEAT ㅡ Changes repeat setting Changes repeat setting ㅡ Deletes the current file ERASE ㅡㅡ Deletes all files ROCK/CLASSIC/NORMAL ㅡ ROCK/CLASSIC/NORMAL/POP/LIVE /POP/LIVE VOL+ VOLUME+ VOLUME+ VOL- VOLUME- VOLUME- HOLD ON/OFF ON/OFF...

  • Page 11: Timer Recording

    Button. ① Select the mode by pressing the MODE Button. (When you are in the DAB/FM Mode, the frequency currently received is recorded). ② Press and hold the RECORD (REC/STOP) Button for about 1 second with the internal microphone toward the sound source.
  • Page 12 lost or a malfunction Take out the battery only when the player is stopped. - If the corresponding file exceeds the recording capacity or there is not enough room for a recording, the recording will not be available. When the memory is FULL, a message "FULL" will display. - Recording to MP3 or H/D domains is not available (Only playback is available in MP3).

  • Page 13: External Memory

    External Memory SD Memory External Memory Slot ① If you press the A-B Button in the stop status after inserting an external memory card, the display screen of INT/CARD will be converted and the internal and external memory domains will be separated. ②...
  • Page 14 SD/MMC Card Recording 1. Push the A-B button on DAB Receiver to switch to the SD/MMC card and next press the TIMER Button twice and the reserved recording screen appears. The minute needle clock indicator and setting channel should be flickering. Press FW or RW to select the file number and then push PLAY.

  • Page 15: Playback Mode

    Playback Mode ● Playing a VOICE file ① Select the message you want to listen to. (Select the file you want 01-99 using Button.) ② You may play by pressing the PLAY ( ) Button. ③ Adjust the volume with the DIGITAL VOLUME button. Listen to music in quiet areas using the micro speaker.
  • Page 16 ● Repeat playing in the MP3 Domain You may set the repeat functions by pressing the REPEAT Button during playback. NOR: Plays and stops all music NOR (1): Plays and stops only one music file (1) ALL: Repeats playing music ALL: Keeps playing all music in order ●...
  • Page 17 ※ Make sure you are in the desired mode to set a reserved (future) recording and/or tuned to the desired DAB/FM station prior to setting a reserved (future) recording. ③ After the time setting is done, if you press the TIMER Button once, the time displays and...
  • Page 18 Once END Setting is done, the TIMER icon displays and the recording is automatically initiated at the designated time. * You may set up to 10 reserved recordings for all the sections in DAB/FM/VOICE. It is set the same way described on the last page. A reserved recording is automatically initiated even when the power is OFF.

  • Page 19: Connecting External Device

    Connecting External Device ● Connecting an External Microphone - Plug a pre-amplified microphone in the line in terminal of the body. ※ When an external microphone is connected to the line in, the built-in microphone is not operational. ● Connecting to External Devices You may record from almost any device using the line in and audio cable.
  • Page 20 REW or FF KEY. ● How to Save a Channel ① Convert to DAB/FM mode by pressing the MODE Button. ② The frequency will display on the LCD. Select the frequency using ③ Press the PLAY Button, a file number (01-10) will be flickering on the display screen.
  • Page 21 ● DAB/FM Reserved Recording * Make sure you are in tuned to the desired DAB/FM station prior to setting a reserved (future) recording. 1. Press the TIMER Button twice and the reserved recording screen appears. The minute needle clock indicator and setting channel should be flickering.

  • Page 22: General Specification

    General Specification DAB Receiver & Voice Recorder MODEL RECORD TIME 256M byte : 1086Min / 2173Min Bit rate 32Kbps / 64Kbps/96Kbps/128Kbps/192Kbps/256Kbps FILE VOICE : 999個 / MP3 FM Record Stereo (87.5MHz~108MHz) DAB Record 174 ~ 245MHz Timer Record Date / Daily/ Weekly...
  • Page 23 RECIVE Approx. 7hour during the DAB Receiver play (ear phone output: volume middle position) RECEIVER/VOICE Approx. 9hour during the Receiver play expect from DAB Receive (ear phone output: volume middle position) Connecting cable for external equipment (1)/ install CD (1)/...
