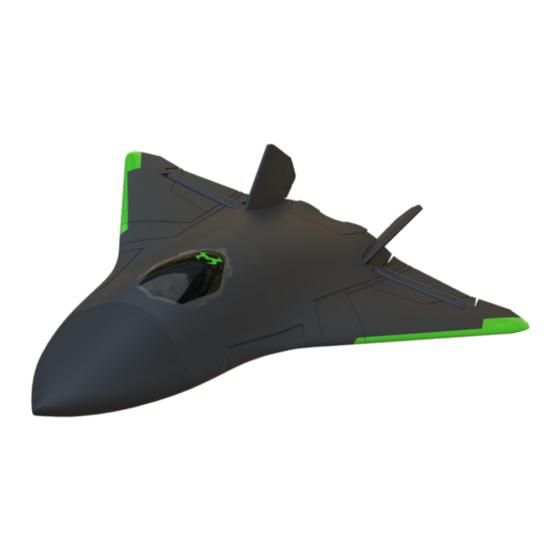

sky viper VECTOR Quick Start Manual

vector
CHARGING PLANE BATTERY
Remove battery from plane and attach to
charging cable. (Use included cable only)
5V, 2A adapter RED =
Recommended
charging
(Sold Separately)
Once charged, disconnect battery from cable and
reattach to plane. Tuck back into plane and secure
door with screw. Remote will beep 1x every couple
seconds when LiPo battery runs low.
LANDING GEAR INSTALLATION
Landing gear is recommended when landing
on concrete or other smooth paved surfaces
to avoid damage.
Firmly insert wheels into slots as shown,
ensuring that the longer wheel is inserted in
front, with wheel pointing forward. Back
wheels should point outward.
TROUBLESHOOTING
Plane is beeping after crash or landing and no longer responds to remote.
Remote beeps 5x quickly during flight, while plane is far away.
Remote beeps 5x quickly during flight, and plane starts radial descent.
- Plane cannot maintain altitude and drifts to ground.
- Plane LED is flashing.
- Remote starts to beep 1x every couple seconds.
Remote beeps 2x every couple seconds and/or doesn't connect to plane.
Plane bounces around or flips over when attempting runway take-off.
- Plane does not respond to remote.
- Plane starts to fly erratically or becomes difficult to control.
SKYROCKET TOYS 30-DAY LIMITED WARRANTY
Skyrocket warrants to the original purchaser that this product is free of defects in materials or workmanship for
30 days from the original purchase. This warranty only applies to defects in material and workmanship and is not
valid if the product has been misused or not assembled and maintained per instructions. Proof of defect or
malfunction must be provided and verified, along with original sales receipt with date. For quickest resolution,
defective product should be returned to the original point of purchase for exchange or refund. If you have questions
or difficulties, please contact Skyrocket Toys customer service department at support@skyrockettoys.com.
PLANE CONTAINS A LITHIUM-POLYMER BATTERY 3.7V 500mAh:
LiPo batteries have a severe risk of fire and injury if they are improperly handled or misused. They may explode,
overheat or ignite. Read all following precautions and instructions regarding the care and use of LiPo batteries.
The LiPo battery is only to be used with the drone and charger included with this product.
• Keep away from flammable materials.
• Do not expose to direct sunlight.
• Do not place in a fire or leave in hot places.
• Do not drop or make subject to strong impact.
• Keep dry and away from water.
• The supply terminals are not to be short circuited.
• Never throw into a fire or attempt to open outer case.
• Do not stress, press or drop.
• Never charge unattended. When charging you should always remain in constant observation to monitor the charging
process and react to potential problems that may occur.
• Disconnect charging cable if fully charged.
• Never store or charge inside a car in extreme temperatures, since extreme temperature could ignite fire.
• Use caution to avoid puncture. Puncture of battery may cause a fire.
LiPo Battery Disposal: LiPo batteries must be recycled or disposed of properly. They should not be disposed of
with other household waste. Check your local laws and regulations for correct recycling and/or battery disposal.
This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
CAUTION: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna - Increase the
separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help.
INITIAL SET-UP & MAINTENANCE
GREEN =
full charge
IMPACT RESISTANT DESIGN
AGES
12+
Vector (model no. 18601) FCC ID: O5318601RX
Remote controller (model no. 18601TX)
FCC ID: O5318601TX
FLY MORE !
Why wait for your battery to recharge.
Increase your flight time with an extra
battery on standby! (Sold separately).
3.7V 500mAh
LiPo BATTERY
CAUTION: Consumers should con rm the lawful use of
this product with local authorities as laws may vary.
Sky Viper 500mAh LiPo battery
recommended, or comparable 3.7V
LiPo battery with JST connector plug.
INSPECTING AND REPLACING DAMAGED PROPS
For best performance, periodically inspect prop blades for
damage or debris wrapped around motor shaft. If damaged,
firmly hold motor housing and pull damaged blade from
shaft. Make note of A or B marking on prop and replace
with corresponding new prop.
Vector is designed to take the abuse of
learning to fly. However, if plane is damaged
from severe impact or rough extended use, it
can likely be sufficiently repaired with the
included mending tape.
Turn plane off then on again to deactivate crash detection (auto-beep) and restore normal plane controls.
You are in danger of flying out of range. Turn back immediately to prevent losing remote connection.
Plane has flown out of range. Plane auto-lands for safety and starts auto-beeping to help you locate it.
Plane battery is running low. Recharge LiPo battery to full power.
Remote batteries are running low. Replace with fresh batteries.
Take-off surface may be too bumpy or plane battery may no longer have enough power to complete a runway
take-off. Try again with a freshly charged battery, or launch by hand instead.
Turn off both remote and plane. Unplug then re-attach plane battery. Ensure remote batteries are new and
plane battery is fully charged, then reattempt flight.
Before each use, an adult should check this product and the LiPo battery to ensure no
damage or hazards exist. Plane has rotating blades that move at high speed, posing
danger of damage and injury. Pilots are responsible for any actions that result in
damage or injury from the improper operation of plane. Do not fly near spectators or
animals. Keep spinning props away from fingers, hair, eyes and other body parts.
Never leave plane unattended while it is turned on. Read all enclosed information
before operating. Please do not remove the triangle screws for any maintenance.
REMOTE AAA BATTERY WARNINGS & SPECIFICATIONS:
• Do not use rechargeable batteries.
• Non-rechargeable batteries are not to be recharged.
• Do not mix old and new batteries and Do not mix alkaline, standard (carbon-zinc)
or rechargeable (ni-cad, ni-mh, etc.) batteries.
• Batteries are to be inserted using correct polarity.
• Remove exhausted batteries as soon as possible and discard properly.
• Remove all batteries from compartment if beacon is not used for a long period of
time.
• The supply terminals are not to be short circuited.
• Batteries should be replaced by an adult.
• Never throw batteries in a fire or attempt to open the
outer casing.
WARNING: Batteries are harmful if swallowed. Please keep away from children.
Battery Disposal: Dispose of batteries according to the local laws and regulations
of your region. Some batteries may be recycled, and may be accepted for disposal
at your local recycling center. If you are not able to identity the application rules in
your areas, please check the instructions of the battery manufacturer.
REMOTE BATTERIES
Insert batteries as shown. Replace door and
secure with screw. Remote will beep 2x every
couple seconds when batteries run low and
need to be replaced.
3x
Install
AAA (LR 03) 1.5V
(Not Included)
A B
A B
