Max-Ability R8592318301 Installation Drawing Manual

Height adjustable changing table
Hide thumbs

Advertisement

Quick Links

Download this manual
Installation
Drawing

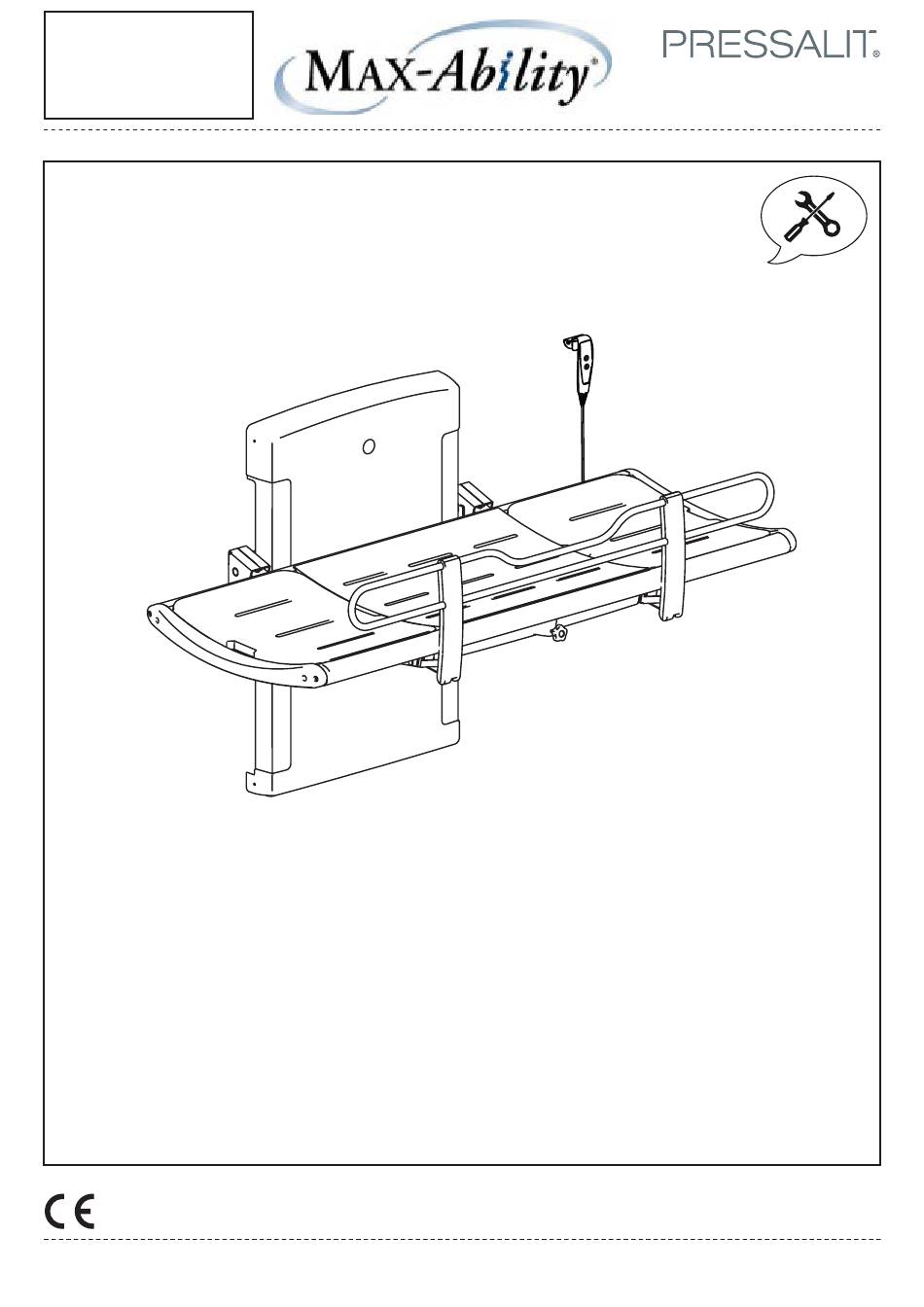

Pressalit 3000 Height Adjustable Changing Table
Adult
Graphite Gray: R8592318301 - EAN: 5708590374161
Sapphire Blue: R8592318299 - EAN: 5708590374154
Previous version: R8520, R8539
Child
Graphite Gray: R8592313301 - EAN: 5708590374147
Sapphire Blue: R8592313299 - EAN: 5708590374130
Previous version: R8516, R8534R
MAX-Ability, Inc.
800.577.1555 info@max-ability.com
Subject to change without further notice.
www.max-ability.com
rev. Jan 2022
Pressalit
Telephone:
Pressalitvej 1
Telefax:
DK 8680 Ry
E-mail:
Danmark
Web:
Page 1/20
+45 87 88 87 88
+45 87 88 87 89
pressalit@pressalit.com
www.pressalit.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the R8592318301 and is the answer not in the manual?

Questions and answers

Related Manuals for Max-Ability R8592318301

Summary of Contents for Max-Ability R8592318301

  • Page 1 Jan 2022 Page 1/20 Pressalit 3000 Height Adjustable Changing Table Adult Graphite Gray: R8592318301 - EAN: 5708590374161 Sapphire Blue: R8592318299 - EAN: 5708590374154 Previous version: R8520, R8539 Child Graphite Gray: R8592313301 - EAN: 5708590374147 Sapphire Blue: R8592313299 - EAN: 5708590374130 Previous version: R8516, R8534R Subject to change without further notice.

  • Page 2: Installation Drawing

    If the product does not function, check that that all cables are securely connected, and that the electrical circuit is powered. A more detailed troubleshooting guide can be found in the product’s operation and maintenance manual. Contact your Pressalit agent, if assistance is needed when installing the product. MAX-Ability, Inc. Pressalit Telephone:...
  • Page 3 Drywall water-resistant, re-enforced with steel plates (2 x 12,5 mm) 2 mm Drywall water-resistant (2 x 12,5 mm) Concrete anchors included at no additional charge. MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com...
  • Page 4 Installation Drawing www.max-ability.com rev. Jan 2022 Page 4/20 Operation and maintenance manual (OMM) for this product is enclosed in the box. Please hand over to the user. It can also be downloaded at www.pressalit.com. An operation signage (quick guide) for use by people with reading or cognitive disabilities, is enclosed in the box.
  • Page 5 V8577 ① ③ ② 540 (21.25) 340 (13.38) 1030 1050 (40.5) (41.38) 510 (20.07) (3.38) MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com Danmark Web: www.pressalit.com...
  • Page 6 If installing in a dry environment, skip to page 7. 100 (4) 110 (4.33) (5.7) (5.7) MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com...
  • Page 7 Page 7/20 max 2000 (79) max 2000 (79) 100 (4) 200 (7.87) 110 (4.33) 50 (2) (5.7) (5.7) MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com...
  • Page 8 7 0 0 m a x ( 2 7 . 5 7 0 0 m a x Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com...
  • Page 9 Installation Drawing www.max-ability.com rev. Jan 2022 Page 9/20 V8577 Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com Danmark Web: www.pressalit.com...
  • Page 10 Installation Drawing www.max-ability.com rev. Jan 2022 Page 10/20 V8577 Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalit.com...
  • Page 11 Installation Drawing www.max-ability.com rev. Jan 2022 Page 11/20 ② ① ③ Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalit.com...
  • Page 12 (11.81) Child Size (R8592313) Product weight: 171 lbs Weight capacity: 440 lbs Adult Size (R8592318) Product weight: 182 lbs Weight capacity: 440 lbs MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com...
  • Page 13 Child Graphite Gray: R8592313301 - EAN: 5708590374147 Sapphire Blue: R8592313299 - EAN: 5708590374130 Previous version: R8516, R8534R Adult Graphite Gray: R8592318301 - EAN: 5708590374161 Sapphire Blue: R8592318299 - EAN: 5708590374154 Previous version: R8520, R8539 MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88...
  • Page 14 The below recommendations are based on experience and internal test results. The below recommendations are to be considered as guidelines only. Subject to alteration without further notice. Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com...
  • Page 15 FTP K 6 M5 x 50 88 Ibs Please refer to installation drawings and specification pages (go to max-ability.com) for further information about which types of bolts/anchors are recommended on specific wall types. MAX-Ability provides concrete anchors at no additional charge.
  • Page 16 M8 X 35 143 Ibs fischer FTP K 6 M5 x 50 88 Ibs Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalitcare.com...
  • Page 17 (2 X 0.5”) water-resistant fischer KD8 toggle 187 Ibs Wingit 187 Ibs Snaptight 187 Ibs Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web:...
  • Page 18 Drywall (other side) Hollow between walls Washer Anchor to fit wall type Wood (1.5-2”) Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalitcare.com...
  • Page 19 Drywall (other side) Washer Hollow between walls Screw to fit wall type Plywood (1 X 0.5”) Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com...
  • Page 20 Screw to fit wall type Hollow between walls NO GO Steel plate (1 X 0.1”) Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com...
