Setting up
Note: If you have a ChargePAK C6L rechargeable battery (sold separately) fi t the battery BEFORE plugging the radio in. Follow the fi tting instructions supplied with the ChargePAK C6L.

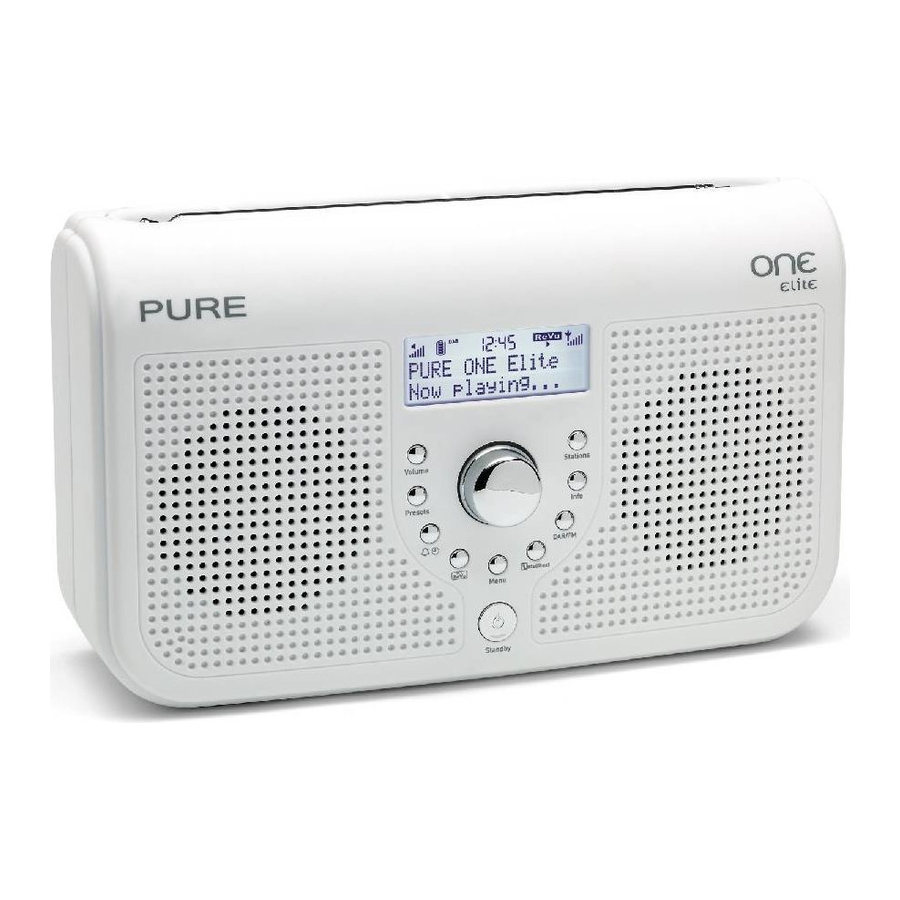

Controls at a glance
Volume
Press to display volume level then rotate dial to adjust.
Stations
Press to display station list. Rotate dial to browse stations; press dial to select.
Info
Press to change the on-screen information.
DAB/FM
Switch between DAB and FM.
View news, sports results and more from participating stations.
Menu
Display setup options.
Presets
Store up to 50 DAB or FM preset stations.
Alarm/Timer
Set the alarm, kitchen timer or sleep timer.
Press to pause and play live radio then rotate dial to fast-forward/ rewind. Press and hold to return to live radio.
Standby
Switch on and into standby or off if ChargePAK/ batteries fi tted.
Centre dial
As well as changing the station and adjusting the volume the dial is also used for other functions like textSCAN and fast-forward and rewind, which are explained in the relevant sections of this manual.
Connectors
Connecting an iPod or MP3 player
(AUX cable not supplied)
Adjusting the volume
(From menus and ReVu ® )
Switching between DAB and FM
Press the DAB/FM button.
Changing stations
When listening to DAB
When listening to FM
Seek Tuning
Press the Stations button and rotate the dial right or left to seek to the next or previous FM station that has a strong signal.
Manual Tuning
Using Presets
You can store up to 25 DAB and 25 FM presets.
Storing a Preset
Selecting a Preset
Changing the information displayed on screen
Press the Info button to switch between the following information:
Scrolling text | Information broadcast by most DAB stations and some FM (RDS) stations. |
Date | Today's date automatically updated by the DAB signal. |
Using textSCAN™ to pause and control scrolling text
Intellitext ®
Intellitext provides on-demand text information such as sports headlines, weather forecasts and news from DAB stations that support the service including BBC Radio Five Live in the UK. The text is updated by the broadcasters and stored in your radio while you listen to stations. Intellitext is listed by station and split into categories, eg, Football, Cricket, Headlines, etc.
To view Intellitext messages
Note: You can use textSCAN to pause and control Intellitext messages.
ReVu ™ − pause and rewind live radio
ReVu enables you to pause and rewind radio by saving an audio 'buffer' of the current station. You can rewind for approximately 10–15 minutes depending on the broadcast quality of the current station and/or how long you've been tuned to the current station.
To pause and rewind live radio
Setting the alarm
Set alarm
Push dial to choose between 'On' (alarm sounds) or 'Off' (alarm does not sound). The symbol on the screen indicates that the alarm is on.
Set time
Push dial to set the alarm time. Rotate the dial to set the hour then push to confi rm. Repeat to set the minutes.
Set days
Push dial to set the days that the alarm sounds. Choose between: Daily (every day), Weekday (Monday to Friday), Weekend, Saturday, Sunday and Once only (alarm does not repeat)
Set alarm mode
Push dial to choose between: DAB, FM or Tone (buzzer).
Select station
If you've set alarm mode as DAB or FM you can choose 'Select station' and choose a DAB station or an FM Preset and push to confi rm. Last tuned tunes to the most recent FM station.
Alarm volume
If the alarm mode is set to DAB or FM, push the dial to change the alarm volume. Rotate the dial left to decrease the alarm volume and right to increase it then push to confi rm.
Cancelling a sounding alarm
To cancel a tone alarm push the dial or press the Standby button. To cancel a radio alarm press any button.
Note: A sounding alarm will switch off after one hour unless you cancel it.
Note: The alarm will not sound if an iPod, auxiliary device or auxiliary cable is connected to the LINE IN socket. Instead, the radio will play any audio from the connected auxiliary device. Setting the alarm & timers
Setting the kitchen timer
ONE Elite has a countdown timer which will sound a beeping tone after a set time period – handy for use in the kitchen.
To set a kitchen timer
To cancel a kitchen timer
To stop and reset the kitchen timer before it sounds a beeping tone, press and hold down the (Alarm/Timer) button for three seconds until you see the message 'Timer cleared'.
Setting the sleep timer
ONE Elite has a sleep timer that switches your radio into standby (or off if powered by a ChargePAK) after a number of minutes has elapsed. Use this if you want to fall asleep to the radio.
To set a sleep timer
To cancel a sleep timer
Select the Sleep timer screen (see above) and set the duration of the Sleep timer to Sleep Off. Alternatively, press and hold the (Alarm/Timer) button for three seconds until you see the message 'Timer cleared'.
Press the Menu button to access the options menu, rotate the dial to scroll through and change the options and push the dial to select.
DAB options
Autotune
Scans all DAB Band III and L-Band frequencies for stations, automatically adds any new stations found to the station list and removes inactive stations. To stop an Autotune press Menu.
Intellitext options
Press and rotate the dial to access the following options for managing Intellitext messages.
Set timeout Choose to delete old Intellitext messages after 1 week (default) or 1 day. Clear all Delete all stored Intellitext messages immediately.
FM options
FM tuning mode
Seek | When you rotate the dial, the radio tunes to the next station with a good signal. |
Manual | When you rotate the dial, the radio tunes up or down in steps of 0.05 MHz. |
FM stereo mode
Choose from Stereo (default) or Mono. Mono may improve clarity where stereo signals are weak.
General options
Backlight
Timed | The backlight turns on for 7 seconds when any button is pressed (default). |
Off | The backlight does not switch on. |
On | The backlight is always on when the radio is on. |
Audio
Rotate the dial to adjust the treble or bass and press to confi rm.
Treble | Adjust the treble between -5 (minimal treble), 0 (neutral) and 5 (high treble). |
Bass | Adjust the bass between -5 (minimal bass), 0 (neutral) and 5 (maximum bass). |
Clock
The clock will automatically set itself and also update for GMT/BST clock changes in the UK. However, if you cannot receive a DAB signal, the time and date can be manually set by selecting Set Clock from the options menu.
Energy saving
ONE Elite is part of the PURE EcoPlus product family, designed and manufactured to minimise power consumption when the unit is switched on and to use less than 1 Watt in standby. One way this low power consumption is enabled is by not collecting and storing Intellitext messages when the unit is in standby. Two options are available:
On (default) | ONE Elite updates the Intellitext data when you tune to a station that broadcasts Intellitext. Intellitext data is not collected in standby. |
Off | ONE Elite collects Intellitext data in standby from the last station you viewed Intellitext, which increases standby power consumption. |
Note: If you fi t the optional ChargePAK C6L or 6 x 'C' cell batteries (see below) the unit will switch off when you press the Standby button and not enter standby, as long as the unit is not connected to mains power.
Software upgrade
Software updates for your ONE Elite may be made available in the future. If you register your product and include a valid e-mail address you will receive notifi cation of software updates (register at www.pure.com/register or fi ll in the supplied warranty card). Available software updates are also listed at www.pure.com/support.*
To upgrade your radio
Reset your radio
Resetting your radio removes all presets, clears the station list and resets all options to defaults.
Using a ChargePAK™
PURE ChargePAK C6L is a rechargeable battery pack which plugs into the socket in the radio's battery compartment. Whenever your radio is connected to a mains supply the ChargePAK will charge up and the battery icon on screen will animate. When the ChargePAK is fully charged the battery icon will disappear.
To purchase a PURE ChargePAK C6L, contact your nearest PURE dealer, visit the shop on our website at www.pure.com or call the PURE order line on +44 (0)845 148 9001.
Note
ONE Elite can only be powered with a ChargePAK C6L or 6 x 'C' cell batteries. Do not use any other ChargePAK model. Carefully follow the separate fi tting instructions that are supplied with the ChargePAK C6L.
*Requires a PC (not Mac) with internet access running Windows XP or Vista and a suitable USB cable (not included).
Using the alarm when using ChargePAK C6L or batteries
When a ChargePAK rechargeable battery or 'C' cell batteries are fi tted and the unit is not connected to mains power the radio switches off completely when the Standby button is pressed. In this case, the message 'Disabling alarm' will be briefl y displayed after the Standby button is pressed and the alarm will not sound.
(<</>>) Secondary DAB services
Secondary services accompany some stations, providing extra information or alternative content and may only be broadcast at certain times. If a station has secondary services available, the station shows '>>' next to its name in the station list and the secondary service appears next to the station in the list. A secondary service has a '<<' before its name in the station list.
(?) Inactive or unavailable DAB stations
Inactive or unavailable stations appear on the station list preceded by '?' and cannot be tuned to. A station may be inactive or unavailable because the station is not broadcasting at the current time (check with the station) or has stopped broadcasting altogether. Alternatively, you may not have a strong enough signal to receive the Multiplex on which the station is broadcast.
Hints and tips
Use Autotune to search for stations. Try adjusting your aerial or radio position.
Use Autotune to scan for new stations and add any new DAB stations to the station list.
Technical Specifications
General | Stereo digital radio with full Band III, L-Band and FM reception. ETS 300 401 compliant and capable of decoding all DAB transmission modes 1-4 up to and including 192 kbps. Supports FM RDS and RadioText. DAB+ supported as standard in certain countries and available as an upgrade in others. See www.pure.com/support for more details. |
Frequency ranges | DAB Band III 174–240 MHz, L-Band 1452-1490 MHz, FM 87.5–108 MHz. |
Speakers | 2 x full-range 3" drive units. |
Audio power output | 2.5W RMS per channel; 5W RMS total. |
Input connectors | 12V DC power adapter socket (230V adapter supplied), Mini USB connector for software upgrades, 3.5mm Line in for auxiliary devices. |
Output connectors | 3.5mm headphone socket |
Mains power supply | 230V AC to 12V (0.8A) DC external power adapter. |
Power consumption | In standby 0.67W (industry average 2.64W); in operation 2.46W on average (industry average 5.49W). |
Battery power supply | Six C (R14) batteries or ChargePAK C6L (not supplied). |
Approvals | CE marked. Compliant with the EMC and Low Voltage Directives (89/336/ EEC and 73/23/EEC). |
Dimensions (mm) | 256 wide x 155 high x 88 deep (excluding controls). |
Aerial | Integral telescopic aerial. |
Go to www.pure.com/support for a list of frequently asked questions relating to this product.
Need help?
We want you to get the most out of your ONE Elite and enjoy all that digital radio has to offer. If you have any questions about the product after reading this manual, please visit our support website or contact a member of our support team by phone or e-mail.
Returns & Repairs
If this product develops a fault within the warranty period we'll organise a repair or replace it if necessary. Read the 'Warranty information' inside for information about the warranty period, terms and conditions.
+44 (0)845 148 9001 (9am–5:30pm, Mon–Fri) | |
support@pure.com www.pure.com/support |
Copyright
Copyright 2008 by Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited.
Trademarks
ONE Elite, the ONE Elite logo, Intellitext, textSCAN, ChargePAK, ReVu, PURE, the PURE logo, PURE Digital, the PURE Digital logo, EcoPlus, the EcoPlus logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited. All other product names are trademarks of their respective companies.
