Celestron POWERTANK GLOW 5000, 93585 - LED Flashlight Manual

INTRODUCTION

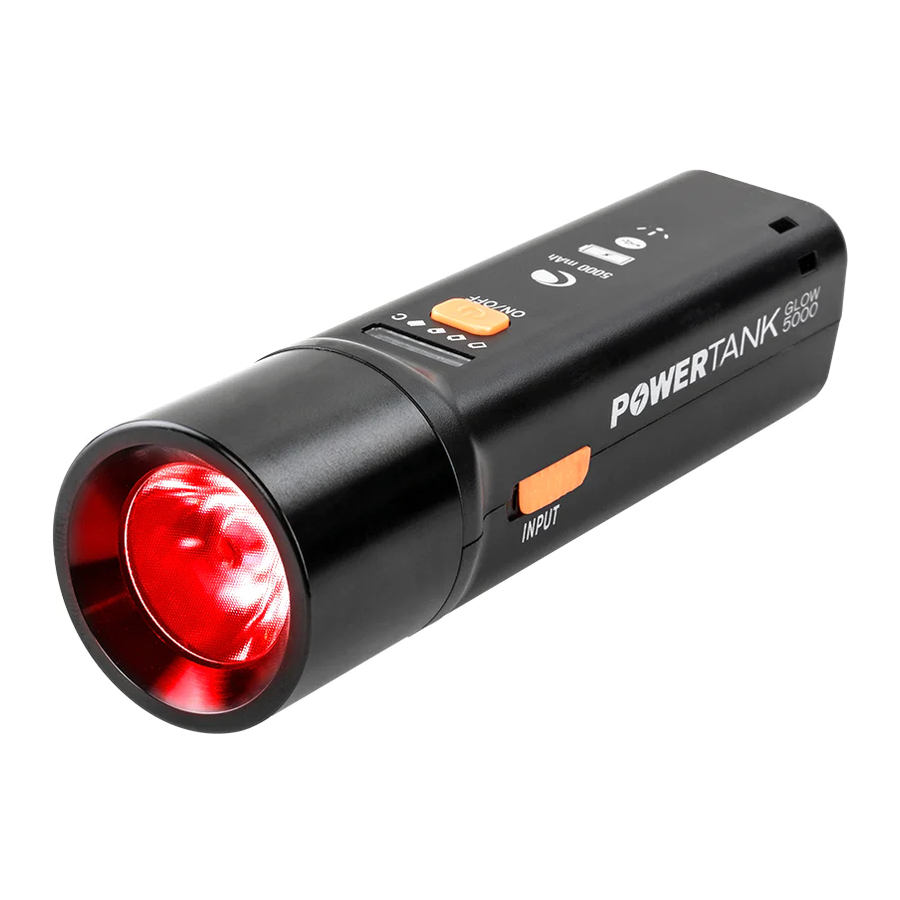

This dual-purpose flashlight and rechargeable power pack is easy to carry, handy when you need it, and ready to be mounted in a variety of ways. The red LED flashlight has 3 modes of illumination, while the high-capacity 5000 mAh rechargeable Lithium-Ion battery can charge cell phones, MP3 players, and many other electronic devices via USB port.

WHAT'S IN THE BOX

• PowerTank Glow 5000
• Two silicone mounting straps
• Wrist strap
• Micro USB charging cable
• Instruction sheet

CHARGING THE LI-ION BATTERY

Your PowerTank Glow comes with a partial charge out of the box. However, before initial use, we recommend fully charging the battery. Simply plug the device into a powered USB port using the included Micro USB cable. Plug the Micro USB end into the input on the flashlight and the USB type A end into a powered USB port. A computer, a USB power brick, or even a car charger with USB port will all work. The red power indicator LEDs on the flashlight will blink to indicate that charging is in progress. When your PowerTank Glow is fully charged, the LEDs will glow solid red.
NOTE: PowerTank Glow has built-in overcharge protection to prevent overcharging the Li-Ion battery.

FLASHLIGHT MODES

Disconnect the charging cable from your PowerTank Glow. Press the power button once to turn on the flashlight. Continue pressing the power button to increase the brightness of the light. The flashlight has three different levels of brightness. You can cycle through the flashlight modes in the following order: Off > Low > Medium > High > Off

MOUNTING POWERTANK GLOW

There are multiple ways to mount PowerTank Glow using one of the two provided silicone straps. You can use the strap color of your choice, either black or orange. Keep the other strap as a back-up.
For mounting instructions, see the next drawing below or visit celestron.com/ptglow-mount

CHARGING A DEVICE

1. Connect your desired USB-powered device to the PowerTank Glow using the output port on the PowerTank Glow and the appropriate USB charging cable for your device.
2. Press and hold the power button on the PowerTank Glow until you see a Green LED turn on. This indicates that the unit is now charging your device.
3. To turn off charge mode, press and hold the power button again.
4. You can use the PowerTank Glow's red flashlight while the unit is charging a device. Quickly push the power button to turn on the red flashlight while in charge mode.
   NOTE: If your PowerTank Glow's battery is about to be depleted while charging a device, the Red LED will flash and the charging process will be terminated.

SPECIFICATIONS

BATTERY: Rechargeable Lithium Ion – 5000 mAh
OUTPUT: 5V – 1A
INPUT: 5V – 1A
CHARGE TIME: Power Supply USB-PC / CC 500 mAh – 11 hours
POWER SUPPLY: 5V/1A/CC 900 mAh – 6.2 hours
POWER SUPPLY: 5 V/2A/CC 1800 mAh – 3.5 hours
DISCHARGE TIME: 2.7 hours (based on 1800 mAh device)
NUMBER OF CHARGE CYCLES: >500
FLASHLIGHT: 1W Red LED
BATTERY LIFE FLASHLIGHT MODE:
Low - 90 hours
Medium - 30 hours
High - 15 hours
WEIGHT: 178 grams (0.4 lbs.)
DIMENSIONS: 5.5" x 1.3" | (140mm x 33mm)

Exposure to extreme temperatures is not recommended when storing your PowerTank Glow.
OPERATING TEMPERATURE RANGE: 14 to 140°F (-10 to 60°C)
STORAGE TEMPERATURE RANGE: 40 to 77°F (4 to 25°C)
CHARGE TEMPERATURE RANGE: 32 to 113°F (0 to 45°C)

Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion, damages for which you ("Purchaser"), and not Smart Team or Celestron (collectively "Manufacturer") are responsible.

• Do not store PowerTank Glow in high temperature environment, including intense sunlight heat. Do not place battery in fire or other excessively hot environments.
• It is not recommended that you leave your PowerTank Glow unused for an extended period of time as the lithium polymer battery will discharge over time.
• If left for more than 3 months without use, it is recommended that you discharge the battery and then recharge it fully before using it again.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this battery. If there is any damage to the battery such as dents, punctures, tears, deformities or corrosion, due to any cause, discontinue use and contact manufacturer or dispose of it in an appropriate manner at your local batteryrecycling center.
• Do not disassemble this battery or attempt to repair or modify it in any manner.
• Do not expose this battery to moisture or submerge it in liquid. Keep battery dry at all times.
• Do not attempt to charge battery using any method, apparatus or connection other than the device's USB connector. For questions or instructions on the various ways to charge the PowerTank Glow, refer to this manual's "CHARGING THE LI-ION BATTERY" section.
• Do not attempt to replace any part of this battery.
• This battery is intended for adult use only. If this battery is intended by Purchaser to be used by a minor, purchasing adult agrees to provide detailed instructions and warnings to any minor prior to use. Failure to do so is sole responsibility of Purchaser, who agrees to indemnify Manufacturer for any unintended use/misuse by a minor.
• All batteries have gone through a thorough quality assurance inspection. If you find that your battery is excessively hot, is emitting odor, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all battery use and contact Manufacturer.
• Never dispose of batteries in the garbage. Disposal of batteries in the garbage is unlawful in the United States, under state and federal environmental laws and regulations. Always take used batteries to your local battery-recycling center.

DISCLAIMER

This battery is meant for use only in conjunction with the appropriate devices. Please consult your device packaging to determine whether this battery is compatible with your particular device. Manufacturer is not responsible for any damages to any device incurred through the use of this product.
Manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this battery in conjunction with any device or accessory other than the appropriate device. Manufacturer will not be responsible for any damages you or any third party may suffer as a result of misuse of this battery as outlined above. If you are responsible for battery use with an unintended device and damages result from such use, you agree to indemnify Manufacturer for any resulting injuries to any third party or parties.

MODIFICATION

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device.
(Products or instructions may change without notice or obligation.)
Designed and intended for those 14 years of age and older. v1.0 2835
Columbia St. Torrance, CA 90503 celestron.com/pages/technical-support
Tel (800) 421-9649
Copyright. 2019 Celestron | All rights reserved.
