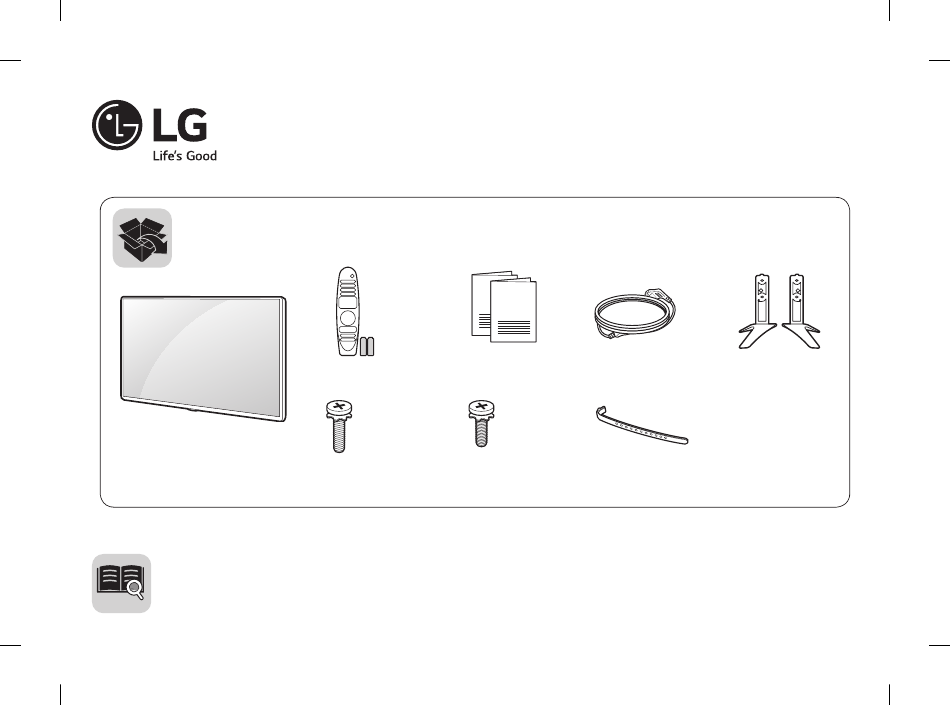

- Page 1 LED TV UH63** (M4 X L16) (M4 X L14) 50UH63** 58UH63** P/No: MFL69343702 (1601-REV00) www.lg.com Printed in Korea...
- Page 4 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN AUDIO OUT/ H/P OUT...
- Page 5 AUDIO OUT/ H/P OUT Satellite IN OPTICAL DIGITAL AUDIO OUT : Depending on model / Selon le modèle / Dependendo do modelo /...
- Page 6 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
- Page 8 50UH630T-TA 1122 53.3 16.5 16.2 50UH630V-TA 50UH630Y-TA 58UH630T-TA 1298 54.2 22.8 22.3 58UH630V-TA 58UH630Y-TA...
- Page 9 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69340912* P/NO : MFL69340912 (1607-REV03) Printed in Korea...
-
Page 10: Safety Instructions
Safety instructions Please read these safety precautions carefully before using the product. Make sure to connect Mains cable to compliant AC mains socket with WARNING Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. Do not place the TV and/or remote control in the following Insert power cable plug completely into wall socket otherwise if not environments:... - Page 11 Do not plug too many electrical devices into a single multiple electrical Do not put or store inflammable substances near the product. There is a outlet. Otherwise, this may result in fire due to over-heating. danger of combustion/explosion or fire due to careless handling of the inflammable substances.
- Page 12 Only use an authorized AC adapter and power cord approved by Do not disassemble, repair or modify the product at your own LG Electronics. Otherwise, this may result in fire, electric shock, discretion. Fire or electric shock accident can occur.
- Page 13 If you install the TV on a stand, you need to take actions to prevent the Make sure there are no objects between the remote control and its product from overturning. Otherwise, the product may fall over, which sensor. may cause injury. If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product.
- Page 14 Periodically examine the cord of your appliance, and if its appearance As long as this unit is connected to the AC wall outlet, it is not indicates damage or deterioration, unplug it, discontinue use of the disconnected from the AC power source even if you turn off this unit appliance, and have the cord replaced with an exact replacement part by SWITCH.
- Page 15 • If you watch a 3D video for a long time, you may experience eye fatigue. In this case, stop watching the 3D video and take a rest. • Only use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
-
Page 16: Separate Purchase
AN-TD700 distribution system has therefore to be provided through a Dual Play Glasses LG Twin TV Engine device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)” - When applying the RF Isolator, a slight loss of signal sensitivity... -
Page 17: Lifting And Moving The Tv
Using the button Lifting and moving the TV (Depending on model) Please note the following advice to prevent the TV from being scratched You can simply operate the TV functions, pressing or moving the button. or damaged and for safe transportation regardless of its type and size. NOTE • ... -
Page 18: Mounting On A Table
We recommend the use of LG’s wall mount bracket. LG’s wall mount » Only using furniture that can safely support the television. bracket is easy to move with cables connected. When you do not use »... - Page 19 Separate purchase(Wall mounting bracket) Provided item 43UH75** 43UH65** Model 40UH63** 55/65UH95** 43UH61** 43UH60** VESA (mm) (A x B) 200 x 200 300 x 200 Adhesive label Standard screw Provided item Number of screws 4 LSW240B Wall mount bracket OTW420B MSW240 49/55UH85** 60/65UH85** 49/55UH77**...
-
Page 20: Connections (Notifications)
Connections (notifications) CI module connection (Depending on model) Connect various external devices to the TV and switch input modes to View the encrypted (pay) services in digital TV mode. select an external device. For more information of external device’s • Check if the CI module is inserted into the PCMCIA card slot in the connection, refer to the manual provided with each device. -
Page 21: Remote Control
Remote control Q.MENU RATIO Number buttons Enters numbers. SUBTITLE Shows programme guide. INPUT (Depending on model) LIVE ZOOM Returns to the previously viewed programme. The descriptions in this manual are based on the buttons on the remote Adjusts the volume level. control. -
Page 22: Magic Remote Functions
By Pressing AD button, audio descriptions function will be (POWER) Turns the TV on or off. enabled. (Depending on model) (STB POWER) You can turn your set-top box on or off by Starts to record and displays record menu. (Only Time adding the set-top box to the universal remote control for your TV. -
Page 23: Open Source Software Notice Information
(Q. Settings) Accesses the Quick Settings. button displays the All Settings * Pressing and holding the LG Electronics will also provide open source code to you on CD-ROM menu. for a charge covering the cost of performing such distribution (such Coloured buttons These access special functions in some menus. -
Page 24: Troubleshooting
Troubleshooting Specifications Wireless module specifications Cannot control the TV with the remote control. • As band channels can vary per country, the user cannot change or • Check the remote control sensor on the product and try again. adjust the operating frequency. This product is configured for the • ... - Page 25 CI Module Size (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating 0 °C to 40 °C Temperature Operating Less than 80 % Humidity Environment condition Storage -20 °C to 60 °C Temperature Storage Less than 85 % Humidity 1 Only Satellite models.
- Page 26 Regulatory WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set. • ...
- Page 27 (Only Jordan) 0197 WEEE Disposal of your appliance The symbol indicating separate collection for electrical and electronic equipment consists of the crossed-out wheeled bin. 0197...
- Page 28 Refer to the label on the back cover and quote this 19960 in Egypt information to your dealer when requiring any service. 021 36 54 54 in Algeria Other countries, Please contact our MODEL local dealer or log into SERIAL http://www.lg.com...
-
Page 29: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 30: Key Codes
KEY CODES key CODeS • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 31 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
-
Page 32: Customer Computer
(TV) (PC) EXTERNAL CONTROL DEVICE SETUP (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 33: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 34: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 35 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 36 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
- Page 37 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
- Page 38 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
- Page 39 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
- Page 40 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : Run Auto Configure Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
