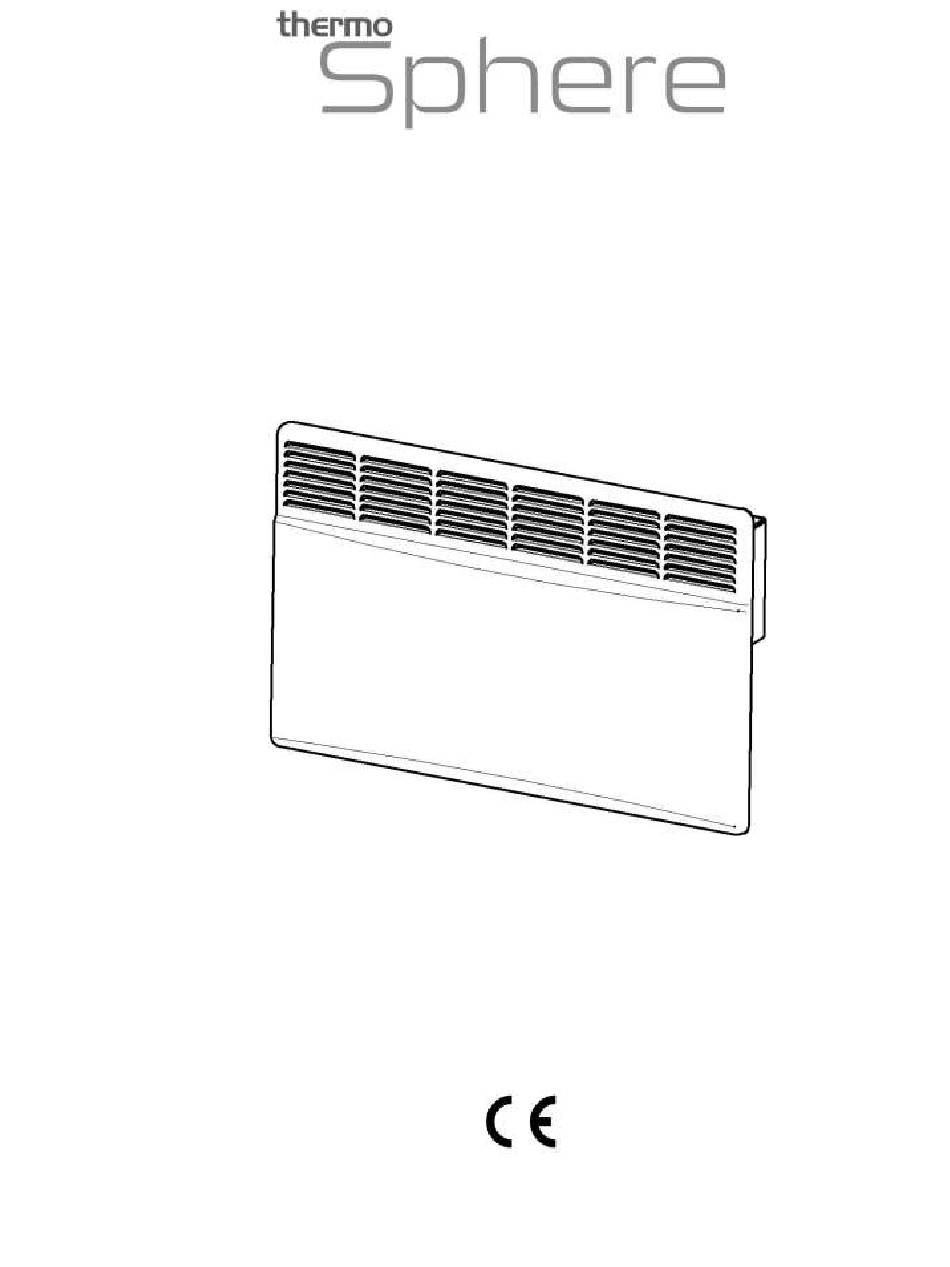

  • Page 1 ELECTRIC CONVECTOR Model: TSCR-0500 TSCR-1000 TSCR-1500 TSCR-2000 OPERATION INSTRUCTIONS...
  • Page 2: Technical Data

    - Current frequency 50 Hz ± 1 Hz - Protected against water projections IP24 - Class of protection from electric current shock Table 1 Model TSCR-0500 TSCR-1000 TSCR-1500 TSCR-2000 Rated power, kW Rated current, А Sizes, mm, no more 460×120×450 530×120×450...
  • Page 3: Safety Requirements

    4 SAFETY REQUIREMENTS The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction, children being supervised not to play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 4: Preparations For Operation

    5 PREPARATIONS FOR OPERATION 5.1 Unpack the convector. Keep the convector at room temperature not less than one hour after placing the convector in a warm room from cold in case of the dew fall-out. 5.2 This equipment was designed to be installed in a residence. Please ask your distributor before using it for any other purpose.
  • Page 5: Order Of Operation

    5.5 Convector with protected against splashed water IP24 can be installed in bathroom (see fig. 4). Do not install the convector: In zone 1 of bathrooms; In zone 2, if the person being in a bath or shower can touch to switches and other controls. In humid areas such as bathrooms and kitchens the power socket must be installed at least 25 cm above the floor.
  • Page 6 6.2.2 Selecting the operating mode of the convector and setting the mode parameters. 6.2.2.1 Heating Modes Pictogram Description When used Comfort When at home. The convector works to maintain the comfort temperature set. Used to select the preferred. The default temperature is 21˚C, you can adjust it from Economy temperature +1˚C to 30˚C.
  • Page 7 Pre-record programs: Pr1 is recommended for a constant presence Pr2 is recommended for absence in the day Pr3 is recommended for absence in the day and if you return to home for lunch time Pr4 permanent Comfort Pr5 permanent Economy The initial view of the programs P6, P7, P8 is permanent ECONOMY mode.
  • Page 8 6.2.2.7 Adjust time and date. To adjust date and time push the button ON-OFF/MENU several times until the selection of the wrench icon ● Press the button ►, when the hour icon blinks you can adjust the hours by press the top ▲ or bottom ▼button.
  • Page 9 ● Use the ▲ or ▼ buttons to change the hour value of the start of the COMFORT mode. Set the beginning of the first period to 4 hours. Indication of the start time of the COMFORT mode (1b-beginning) ● Press the ► button to confirm the selected value of the beginning of the COMFORT mode. The program switches to the mode for selecting the hour of the end of the COMFORT mode.
  • Page 10 ● Use the ▲ or ▼ buttons to change the hour value of the end of the second period COMFORT. Set the end of the second period to 12 hours. The scale of the daily program displays the sector of the second period COMFORT.
  • Page 11: Maintenance

    6.3 Dismounting the convector. Press and hold the button ON-OFF/MENU until the convector turns off, the indication goes out and will to show the time. Disconnect the convector cord plug from the power socket. Lift up the convector until the bottom hooks of the brackets come out of the holes of the air intake grate of the convector.
  • Page 12 Information with regard to ecodesign requirements according to Regulation (EU) 2015/1188 EN – Information requirements for electric fixed local space heaters TSCR-0500 TSCR-0500 TSCR-0500 TSCR-0500 Model identifiers Heat output Nominal heat output P , kW Minimum heat output Pmin, kW...
