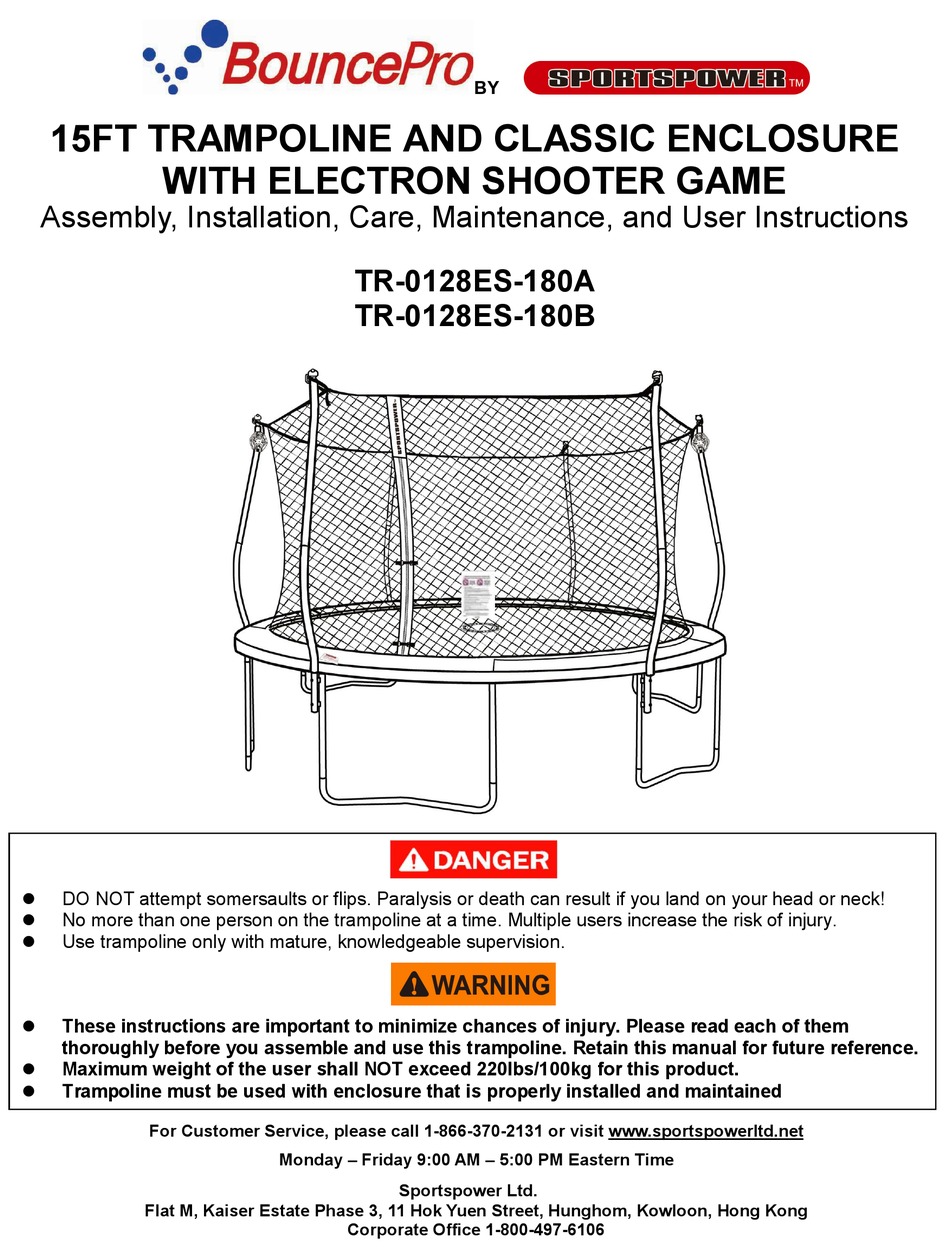

15FT TRAMPOLINE AND CLASSIC ENCLOSURE
WITH ELECTRON SHOOTER GAME
Assembly, Installation, Care, Maintenance, and User Instructions
DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!
No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
Use trampoline only with mature, knowledgeable supervision.
These instructions are important to minimize chances of injury. Please read each of them
thoroughly before you assemble and use this trampoline. Retain this manual for future reference.
Maximum weight of the user shall NOT exceed 220lbs/100kg for this product.
Trampoline must be used with enclosure that is properly installed and maintained
For Customer Service, please call 1-866-370-2131 or visit www.sportspowerltd.net
Flat M, Kaiser Estate Phase 3, 11 Hok Yuen Street, Hunghom, Kowloon, Hong Kong 
TR-0128ES-180A
TR-0128ES-180B
Monday – Friday 9:00 AM – 5:00 PM Eastern Time
Sportspower Ltd. 
Corporate Office 1-800-497-6106
BY 

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BouncePro TR-0128ES-180A and is the answer not in the manual?

Questions and answers

Related Manuals for SportsPlay BouncePro TR-0128ES-180A

Summary of Contents for SportsPlay BouncePro TR-0128ES-180A

  • Page 1 BY    15FT TRAMPOLINE AND CLASSIC ENCLOSURE WITH ELECTRON SHOOTER GAME Assembly, Installation, Care, Maintenance, and User Instructions TR-0128ES-180A TR-0128ES-180B       DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck! ...
  • Page 2 NO SOMERSAULTS OR FLIPS – PARALYSIS OR DEATH can result if you No more than ONE user at a time land on your head or neck! (maximum weight - 220 lbs /100 kg). Do not use if in a Do not allow Remove all hard Do not use cast or have...
  • Page 3 INTRODUCTION Thank you for purchasing a Sportspower product! This trampoline was designed and manufactured with quality materials and craftsmanship, providing fun and exercise in the enjoyment of your own backyard. It is very important that the owners and users of this trampoline have adequate knowledge of techniques and rules for proper use.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS  Use trampoline only with mature, knowledgeable adult supervision.  Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ...

  • Page 5: Before You Start To Assemble

    BEFORE STARTING…  Use trampoline only with mature, knowledgeable adult supervision.  Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ...

  • Page 6: Important Warnings

    IMPORTANT WARNINGS  Use trampoline only with mature, knowledgeable adult supervision.  Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ...
  • Page 7 IMPORTANT WARNINGS  Use trampoline only with mature, knowledgeable adult supervision.  Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ...
  • Page 8 IMPORTANT WARNINGS  Use trampoline only with mature, knowledgeable adult supervision.  Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ...
  • Page 9 IMPORTANT WARNINGS  Use trampoline only with mature, knowledgeable adult supervision.  Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ...

  • Page 10: Important Instructions For Enclosure Netting And Mat

    IMPORTANT INSTRUCTIONS FOR ENCLOSURE NETTING AND MAT Important Instructions for Enclosure Netting and Mat Failure to follow these instructions to ensure proper operational condition of your trampoline may lead to serious injury or death.  1. Maintenance of Trampoline Enclosure Net, Mat and Pad Enclosure nets and padding are prone to wear and tear like tires on a car.
  • Page 11 IMPORTANT INSTRUCTIONS FOR ENCLOSURE NETTING AND MAT How to Inspect the Trampoline Net for Proper Use Always check the enclosure netting for signs of UV damage, deterioration, brittleness, cracking, and tearing every time before using the trampoline and enclosure. Step1 - Inspect the enclosure netting before EACH use for wear or tear by pinching and pulling a section of the netting between fingers and pulling downward.

  • Page 12: Trampoline And Enclosure Parts List

    HARDWARE PARTS LIST Trampoline and Enclosure Parts List Trampoline Key Number Part Picture Description Quantity Trampoline Mat, stitched with Triangle-Rings Frame Pad Top Rail with Leg Sockets Top Rail Leg Base Vertical Leg Extension Vertical Leg Extension (two holes) Spring Trampoline Safety Instruction Placard Enclosure...

  • Page 13: Hardware Parts List

    HARDWARE PARTS LIST Hardware Parts List Key Number Part Picture Description Quantity Gap Spacer Cord End Cap Bolt Self-Locking Screw (M4x12mm) Screw (15mm) Small Spring Lock Washer Spring Lock Washer Arc Washer Cap Nut Wrench Allen Wrench Spring Loading Tool Electron Shooter Ball Shooter...

  • Page 14: Assembly And Installation Instructions

    ASSEMBLY AND INSTALLATION INSTRUCTIONS Assembly and Installation Instructions Review all steps before assembly and read all precautions before using this product. Failure to do so can result in serious injury or death. During periods of non-use, this trampoline and trampoline enclosure can be easily disassembled and stored by reversing the order of installation.

  • Page 15: Trampoline Frame Assembly

    TRAMPOLINE FRAME ASSEMBLY Trampoline Frame Assembly BEFORE YOU BEGIN: Review all steps before assembly and read all precautions before using the trampoline. At least two adults are required to assemble this trampoline. Protective gloves should be used during assembly to avoid injuries during installation. Goggles should be worn to avoid injuries to the eyes. Step 1 –...
  • Page 16 TRAMPOLINE FRAME ASSEMBLY Step 2 – Leg Support and Top Rail with Leg Socket Assembly At this point, two people will be needed to assemble the trampoline.  Connect Vertical Leg Extensions (# 6A and # 6B) to Leg Base (# 5) as shown below (the assembled parts will be hereinafter referred to as “Leg Support”).
  • Page 17 TRAMPOLINE FRAME ASSEMBLY Step 3 –Top Rail Assembly  Complete the trampoline frame by inserting all of the Top Rails (# 4) in between Top Rail with Leg Sockets (# 3) as shown below. DO NOT PLACE HANDS NEAR THE OPENING WHEN CONNECTING THE TUBES.
  • Page 18 TRAMPOLINE FRAME ASSEMBLY Step 4 –Secure Leg Support to Top Rail  Secure Vertical Leg Extension (# 6A) to the frame using Self-Locking Screw (# E), Small Spring Lock Washer (# G) and Allen Wrench (# L) as shown below. If the holes do not match up, rotate Vertical Leg Extension back and forth until the holes are aligned.

  • Page 19: Trampoline Mat Assembly

    TRAMPOLINE MAT ASSEMBLY Trampoline Mat Assembly When attaching the springs, do not place your hands, arms, legs or any other body part close to the connector points (i.e. joints connecting the steel tubes). The connector points can become pinch points as the trampoline springs tighten up.
  • Page 20 TRAMPOLINE MAT ASSEMBLY Step 6 – Spring Assembly  Continue to attach springs in the same manner. For even distribution of tension and ease of assembly, the springs must be placed on opposite sides of the mat in an alternating manner, i.e. 12 then 60, 36 then 84, etc.
  • Page 21 TRAMPOLINE MAT ASSEMBLY Step 7 – Spring Assembly  Continue to attach springs in the same manner. For even distribution of tension and ease of assembly, the springs must be placed on opposite sides of the mat in an alternating manner, i.e. 6 then 54, 18 then 66, 30 then 78, 42 then 90, etc.
  • Page 22 TRAMPOLINE MAT ASSEMBLY Step 8 – Spring Assembly  Continue to attach the remaining springs in the same manner as the previous step, i.e. the springs must be placed on opposite sides of the mat in an alternating manner to ensure even distribution of tension. IMPORTANT: Once all the springs are properly installed, you must go back to Step 4 and now tighten the screws on all Leg Supports.

  • Page 23: Frame Pad Assembly

    FRAME PAD ASSEMBLY Frame Pad Assembly Never use the trampoline without the Frame Pad, the Frame Pad reduces the risk of getting injured by hitting the metal frame or springs. Inspect the Frame Pad before each and every use to ensure all exposed metal parts are fully covered by the Frame Pad! Step 9 ...

  • Page 24: Trampoline Enclosure Assembly

    ELECTRON SHOOTER ASSEMBLY Trampoline Enclosure Assembly BEFORE YOU BEGIN: This trampoline must only be used when the enclosure netting is properly assembled. The trampoline netting  must be checked thoroughly before each use to ensure there are no tears or damages. Please carefully read all the Important Warnings contained in this manual and all warnings on the product before use.
  • Page 25 ELECTRON SHOOTER ASSEMBLY Step 11 – Connect the Enclosure Upper Frame to the Lower Frame  Attach Tube Cap (# 11) to Upper Frame Tube with Foam (# 9) using Self-Locking Screw (# E) and Allen Wrench (# L) as shown below. ...
  • Page 26 ELECTRON SHOOTER ASSEMBLY  Secure the buckles located at the top of the netting enclosure through Tube Cap (# 11) as shown below. Hint: Please make sure the cap holder is facing outward.  Keep some looseness on the strap of the buckles. ...
  • Page 27 ELECTRON SHOOTER ASSEMBLY Step 12 – Connect the Enclosure Upper Frame to the Lower Frame Tubes  Connect all six Upper Frame Tube with Foam (# 9) to Lower Frame Tube with Foam (# 10). Secure with Self-Locking Screw (# E) using Allen Wrench (# L) as shown below. Helpful Tips: One person should stand inside the trampoline to hold the netting in place while another person installs all the frame tubes from the outside.
  • Page 28 ELECTRON SHOOTER ASSEMBLY Step 13 – Tie the Enclosure to the Mat  Secure the trampoline netting to the trampoline frame using the Cords (# B). Lift up the frame pad and tie one end of the cord to any one of the triangle-rings on the trampoline mat as shown below. ...
  • Page 29 ELECTRON SHOOTER ASSEMBLY Step 14 - Secure the Frame Pad  Wrap and tie the inner elastic straps on the frame pad around the triangle-rings and the outer straps around the trampoline frame as shown below. Diagram 14-1...
  • Page 30 ELECTRON SHOOTER ASSEMBLY  For the elastic straps near the leg sockets, wrap them BEHIND the leg sockets and then tie a one-sided bow in front as shown below. Diagram 14-2 Make sure that the knots and bows are tight for all elastic straps. ...

  • Page 31: Electron Shooter Assembly

    ELECTRON SHOOTER ASSEMBLY Electron Shooter Assembly Note:  Assembly of this equipment must be done by adults.  Batteries are not included with this product.  Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel- cadmium) batteries.
  • Page 32 ELECTRON SHOOTER ASSEMBLY Step B Attach the Target to the Enclosure Pole (#A1 and #A2 together) by wrapping and securing the strap buckle and Velcro strap around the Enclosure Pole as shown in FIGURE 2.
  • Page 33 ELECTRON SHOOTER ASSEMBLY Step C Activate the system by pressing the Small Button of the Ball Shooter. Once the unit is activated, press the Big Button on the Ball Shooter and aim the Electron Emitter towards the Target to score. Be sure to focus the Electron Emitter at the target when you shoot! TARGET Small Button...

  • Page 34: Disassembly Of The Trampoline And Enclosure

    DISASSEMBLY OF THE TRAMPOLINE AND ENCLOSURE IMPORTANT Once you have finished the assembly of the trampoline, go back over all of the nuts and bolts and properly tighten all of them before using. Read this entire manual and make sure all jumpers completely understand all of the safety rules printed in the manual and on the various warning signs.

  • Page 35: Care And Maintenance

    CARE AND MAINTENANCE Care and Maintenance Failure to follow these instructions to ensure proper operational condition of your trampoline may lead to serious injury or death.    The springs, trampoline legs and enclosure netting must be inspected prior to every use. The legs should be locked securely into place, all the springs attached to the frame and there should be no tears in the enclosure netting.

  • Page 36: Proper Use Instructions

    PROPER USE INSTRUCTIONS Proper Use Instructions Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death. Responsibilities of the user The key here is to stay in control of your jumps. DO NOT move onto more complicated, more difficult maneuvers until you have mastered the basic, fundamental bounce.
  • Page 37 PROPER USE INSTRUCTIONS  Do not intentionally rebound off the enclosure barrier. Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death.  Read all instructions before using the trampoline. Warnings and instructions for the care, maintenance and use of this trampoline are included to promote proper and enjoyable use of this equipment.

  • Page 38: Learning The Fundamental Trampoline Skills

    USE INSTRUCTIONS Learning the fundamental trampoline skills The following lessons are suggested for you to learn basic steps and bounces. Before using the trampoline, you should read and understand all warnings. A complete discussion and demonstration of body mechanics and trampoline guidelines should occur between the supervisor and student as well.
  • Page 39 USE INSTRUCTIONS BASIC TRAMPOLINE BOUNCES THE BASIC BOUNCE 1. Start from the standing position, with your feet having shoulder width apart and with head up and eyes on mat 2. Swing arms forward and up in a circular motion 3. Bring feet together while in mid-air and point toes downwards.

  • Page 40: Product Warranty

    PRODUCT WARRANTY Product Warranty Sportspower Ltd warrants its products to be free from defects in material and workmanship under normal use and service conditions for ninety (90) days after the date of purchase. The steel frame on trampolines is warranted for two (2) years after the date of purchase. All warranty coverage extends only to the original purchaser of the product and is not assignable or transferable.
  • Page 41 PRODUCT WARRANTY SPORTSPOWER IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
