- Page 1 Vue (Landscape) 5-8kW (Nom 5kW) Mul� Fuel Free Standing Installa�on and opera�ng manual English 1 of 24...
- Page 2 Vue (Landscape) 5-8kW (N. 5kW) Mul� Fuel Free Standing Vue Landscape Data NB0608 EZKA/2021-11/00015-1 Essen�al Characteris�cs Test fuel Beech Fire Safety Pass CO: 0.08 vol% Emissions of combus�on products : 85 mg/m³ (Related to 13% O2) : 32 mg/m³ Dust: 26 mg/m³...
-
Page 3: Table Of Contents
CONTENTS Introduc�on and safety Safety - Installa�on ......................5 Safety - Ven�la�on ....................... 5 Safety - Clean air act 1993 and smoke control areas............6 Before you start Before you start ........................7 Item check list ........................8 Safety check list ........................8 Considera�ons ........................ - Page 4 4 of 24...
-
Page 5: Introduc�On And Safety

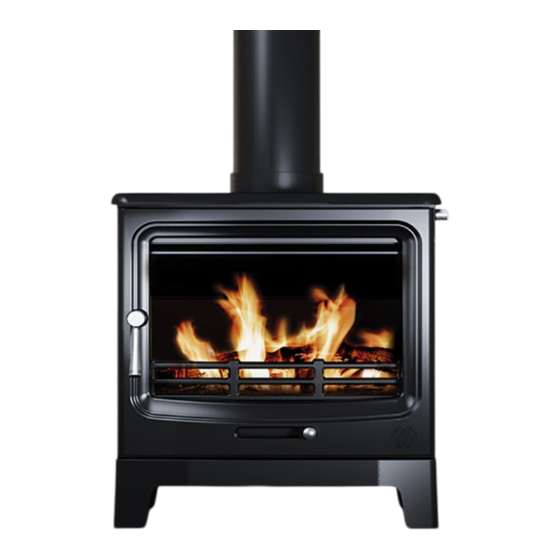

Si�ng in the light and warmth of the fire, you will understand that we simply Create Atmosphere. This manual is for the 5-8kW (n. 5kW) Vue Landscape Stove, which is designed to be used as a Freestanding stove. Throughout this manual, we will refer to this model as the ‘appliance’. To further appreciate your new appliance please... -
Page 6: Safety - Clean Air Act 1993 And Smoke Control Areas
Clean Air Act requirements. Our appliance - the 5-8kW Vue Landscape mul�fuel stove, has been recommended as suitable for use in smoke control areas when burning wood logs. All appliances have been fi�ed with a modified air control to prevent closure of the secondary air control beyond 6mm (30%) open. -
Page 7: Before You Start
BEFORE YOU START First, check the load bearing capacity of your floor Before installing the appliance, you must ensure that the load bearing capacity of the floor is equal to the weight of the appliance, as well as any flue pipes and connec�ons. -
Page 8: Item Check List
The appliance must not be modified in any way. Any changes will invalidate your warranty and may damage the appliance or cause an unforeseen safety issue. Any replacement parts that you may require over the life�me of the appliance must be official F2 Fires appliance parts ONLY. -
Page 9: Considera�Ons
Considera�ons Test the chimney thoroughly We recommend that a smoke test is carried out to check for gas �ghtness within your flue and for chimney draughts. Lining and insula�ng your chimney before installa�on is highly recommended. Ensure there is adequate access to the chimney to allow for sweeping on a regular basis. -
Page 10: Fi�Ng And Connec�Ons
Fi�ng and connec�ons Adjustment points on the appliance This is a free standing appliance designed to be suitable for 12mm hearths. Once the flue is in posi�on, the appliance should be secure. However if the floor surface is uneven, addi�onal fixings are supplied to allow the adjustment of the four feet. Always ensure the appliance is level and secure a�er adjustments are made. -
Page 11: Stove Controls
Stove Controls Opera�ng tool For ash pan and secondary air control opera�on Door handle Ter�ary air control Ter�ary air is required for ensuring the clean combus�on of the vola�le gases produced by wood. When burning smokeless fuels this should be in the closed posi�on once the fire Primary air control has established as smokeless fuel produces far less vola�le gases as it is... -
Page 12: Ligh�Ng With Wood
OPERATION Ligh�ng Before ligh�ng the appliance Before ligh�ng the appliance for the first �me, please ensure all firebrick linings and other internal components are in posi�on and that all packaging has been removed. When ligh�ng your appliance for the first �me, it should not be stoked excessively as the materials must be given �me to adapt to the effects of heat. -
Page 13: Ligh�Ng With Smokeless Fuel
OPERATION Ligh�ng Ligh�ng the appliance with smokeless fuel Quality Firelighters should be used when ligh�ng the stove. (Never use methylated spirit, petrol or other flammable liquids). Ligh�ng your stove with firelighters will be more reliable and easier than using paper. Step 1. -
Page 14: How To Light And Sustain A Fire
HOT SURFACES DURING OPERATION All parts of the appliance will become hot during use. Always use the glove provided to operate any element on the appliance, especially the air control and the door handle. Once lit, ensure that adequate precau�ons are taken to ensure that others, including children, pets and combus�bles cannot come into contact with any of the appliance’s hot surfaces. -
Page 15: Types Of Fuel
Types of fuel Wood Wood needs to be well seasoned before it is burnt. For the best performance, you should use kiln dried wood or seasoned wood with no more than 20% moisture content. As a general guide, wood should be cut to length, split and then stacked under cover outside with the sides open to the air, for at least 12 months. -
Page 16: Maintenance Maintenance
�me will also help to prevent the gradual buildup of deposits and make future cleaning much easier. For more stubborn stains, a suitable stove glass cleaner will be available from your authorised F2 Fires dealer. -
Page 17: Opera�Onal Issues
OPERATIONAL ISSUES Problem solving Problem Possible causes and solu�ons The wood is too damp. Only use wood that has been stored for at least 12 months ● under cover and ideally with a moisture content of less than 20%. (See How to light and sustain a fire - Types of fuel) Insufficient intake of air from the air control. -
Page 18: Running Temperature
Before using the appliance again a�er a chimney fire, the chimney should be thoroughly cleaned and inspected by a qualified person to ensure further damage has not occurred. Opera�ng parameters Vue Landscape 5kW & Vue Landscape Logstore Wood Smokeless solid fuel... -
Page 19: Specifica�Ons
490mm Height 570mm 765mm Depth 380mm 380mm Firebox width 395mm internal 395mm internal Appliance 101kg Appliance 110kg Weight Packaging 8kg Packaging 10kg Combined 109kg Combined 120kg Vue Landscape 5kW Vue Landscape Logstore 5kW 142mm 243mm 125mm 486mm 19 of 24... -
Page 20: Warranty Details
Thank you for choosing F2 Fires Warranty If you have purchased your stove from a F2 Stoves registered retailer, then your stove will carry a 2 year warranty as standard. The 2 year warranty can be further extended to a total warranty period of 5 years by registering your F2 Stove within one month of the la�er of the purchase date or installa�on date. -
Page 21: Warranty Card
Warranty Vue (Landscape) PLEASE RETURN TO THE RETAILER 5-8kW (N. 5kW) Mul� Fuel FAILURE TO DO SO WILL AFFECT THE WARRANTY Free Standing Your stove is guaranteed for 2* year from the date of purchase *See page 20 for more details on the stoves extended warranty This document must be completed by the installer;... -
Page 22: Installer Notes
Installer notes 22 of 24... - Page 23 23 of 24...
- Page 24 Technical support UK Distributor Eurostove Ltd Unit H1 Mendip Industrial Estate Rooksbridge Somerset BS26 2UG Tel: +44(0)1934 750500 Fax: +44(0)1173 156207 technical@eurostove.co.uk www.eurostove.co.uk F2 Fires Limited UK info@f2fires.co.uk | www.f2fires.co.uk © F2 Fires Vue Landscape REV8 May, 2022 24 of 24...
