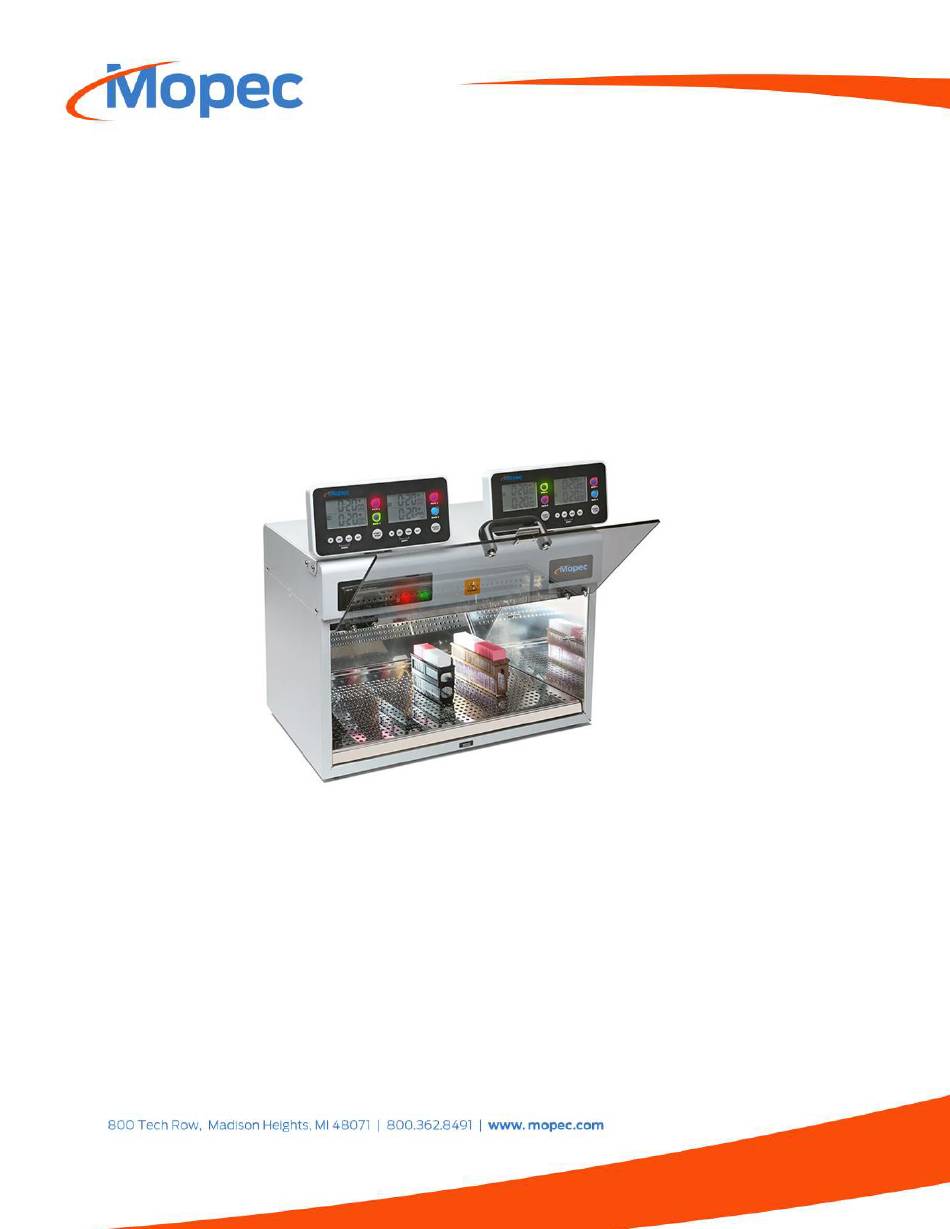

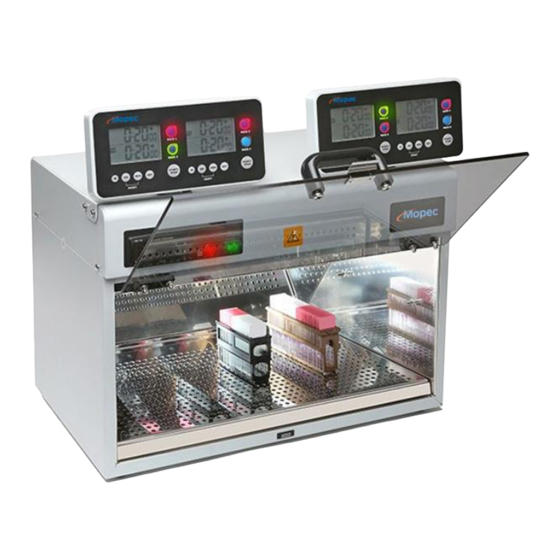

Page 1 MOPEC USER MANUAL HIGH CAPACITY SECTION DRYER - BK701...
Page 2: Table Of Contents
WARRANTY TERMS AND CONDITIONS INTRODUCTION Mopec’s High Capacity Section Dryer is the perfect solution for high workload laboratories. Similar to the Mini Section Dryer, it’s designed to efficiently and rapidly blow temperature-controlled air through the base of the instrument to dry specimens without the risk...
Page 3: General Notes
of overheating. Through this process, drying times are dramatically reduced by 75% compared to conventional drying ovens. Featuring a large chamber, the system can house up to 30 slides within each of its 13 slide racks. The transparent lid can be positioned at any angle, allowing users to use both hands to place or remove items from the dryer.
Page 4: User Safety
The instrument requires no regular servicing, but Mopec does recommend an annual inspection, as detailed in the manual, which will prolong the life of the instrument to ensure continued safety.
Page 5: Specification
SPECIFICATION The Mopec High Capacity Section Dryer is designed for busy histopathology laboratories providing maximum drying area whilst taking up the minimum of bench space. The section dryer operates by circulating digitally controlled warm air from the base of the instrument, which rises through the slide staining racks.
Page 6: Lean Timer Unit And Slide Rack Holder/Identifier
3. Turn on the High Capacity Section Dryer. 4. Select the desired temperature (Recommended Temperature 60°C). a. Press the DOWN arrow then release it (do not hold down the DOWN arrow continuously for 5 seconds). b. The display will show SP1 alternating with the current set temperature. c.
Page 7: Lean Timer Unit Operation
LEAN TIMER UNIT OPERATION 1. Place a slide rack containing sections to be dried into position 1, 2, 3, 4, 5, 6, 7 or 8 in the Slide Rack Holder. 2. Select the corresponding timer on the Lean Timer Unit by pressing the corresponding blue button, Rack 1, Rack 2, Rack 5 etc.
Page 8: Miniature Circuit Breakers
MINIATURE CIRCUIT BREAKERS Located at the rear of the instrument. In the event of a fault, push back in to reset. If fault situation continues, please contact your Service Engineer or Mopec. SAFETY CUT OUT Each fan is protected by a safety cut out, if the section dryer goes into a fault condition due to overheating.
Page 9: Portable Appliance Testing
RECOMMENDED CHECKS TO BE MADE: 1. Check fans are operating correctly. PORTABLE APPLIANCE TESTING Portable appliance testing should be carried out by a qualified person. THIS EQUIPMENT MUST NOT BE FLASH TESTED! DOOR ADJUSTMENT If the door/lid of the High Capacity Section Dryer are not closed as desired, it is recommended that the user checks the amount of tension which is set in the friction hinges of the lid.
Page 10: Setting Controller Offset Parameters
(offset). ROUTINE INSPECTION RECOMMENDATIONS Mopec recommends that a simple annual inspection be made for all Mopec laboratory equipment in order that any malfunction can be identified and rectified as early as possible. This is to ensure user safety and prolong instrument lifespan.
Page 11: Things To Check
1. Condition of Power Lead: A visual inspection to ensure the insulation is not damaged and that the correct fuse is fitted. 2. Functioning of Heater On Lamp: Heater lamp should be on when the instrument is warming up. 3. Functioning of the Airflow Fans: All fans at the rear of the section dryer should operate. All fans should begin to operate as soon as the instrument is plugged into a power socket.
Page 12: Warranty Terms And Conditions
4. Mopec will accept no liability, where in the opinion of the company the defect has been caused by damage due to the Customers failure to follow operating instructions, correct...
Page 13 It is the customers responsibility to ensure that the loan equipment is packed in the packaging provided by Mopec, in order that Mopec can arrange collection of the loan instrument. If the loan instrument is not packed and ready for collection within 48 hours of a repaired instrument being returned to the customer, costs for collection and equipment rental fee will be applied.
