geonovo Romad RSP-100 Quick Start Manual

Inserting the SIM card and battery

1 2
To remove the battery, push Insert the SIM card into the
the release latch upwards (1) socket making sure the notched
and pull the battery out (2). corner is at the top right and
the gold contact area is facing
downwards.

Setting up the phone

When first switching on your RSP-100 all settings relating to the numbers on the Speed Dial keys,
Pre-Alert and SOS alert are usually pre-configured. These are managed through a web platform
operated by your service administrator with commands sent remotely to update the RSP-100.
1 2
Switch your Phone on or Local Phone settings are
off by pressing and holding configured through the menus
the key. accessed by pressing the
key. The side key
to change selection and the
key will exit.
3
Re-insertion of the battery
is the reverse of removal, when
inserted apply downward
pressure until you hear the
fastening click.
NOTE: If you have no numbers
stored or Speed Dial keys have
not been configured, please
is used contact your Service
Administrator.

Welcome

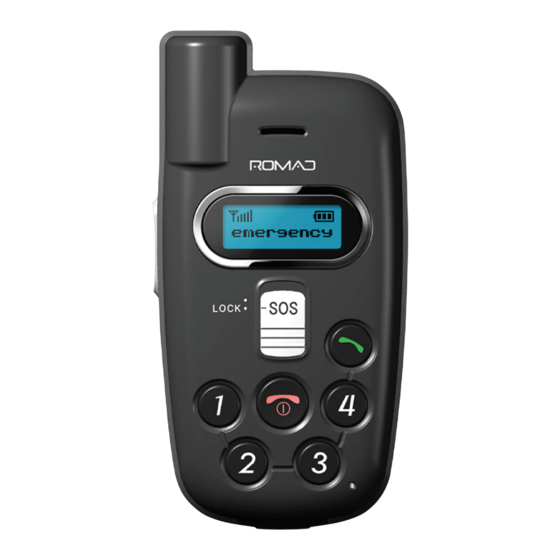

Welcome to the Romad RSP-100 Personal Safety Phone. This guide provides
a main functional summary of the RSP-100 and should be used in conjunction
with other training and procedures you may receive.

Further information

Additional information can be found on the Geonovo web site at
www.geonovo.com
A full user manual can be located on the downloads section
www.geonovo.com/downloads
For further information and technical questions contact your retailer or refer to
the Geonovo web site.
© Geonovo Ltd. 2011

Charging the phone

1 To charge the phone, open the rubber
socket cover on the base of the phone and
plug in the connector. Plug the other end into a
standard AC wall outlet or car power socket as
appropriate.

Accessing and using the menus

1 Unlock the keypad by 2 Use the side
pressing the button and scroll to the required option, us-
enter the main menu using . ing the button to select.
ENG012011
2 When the battery is charged "Full battery"
and the full battery icon are shown on the
screen. Remove the connector from the phone
by pressing the buttons on both sides and pull.

Battery Indicators

When the battery charge is low and depending
on configuration, there will be an audible alert
and an empty battery status icon flashes
at the top of the display. When the battery level
gets too low, the phone turns off automatically.
Watch the battery status icon and make sure
your battery is adequately charged.
key and 3 The button is used to to
go back up the menu hierarchy.
