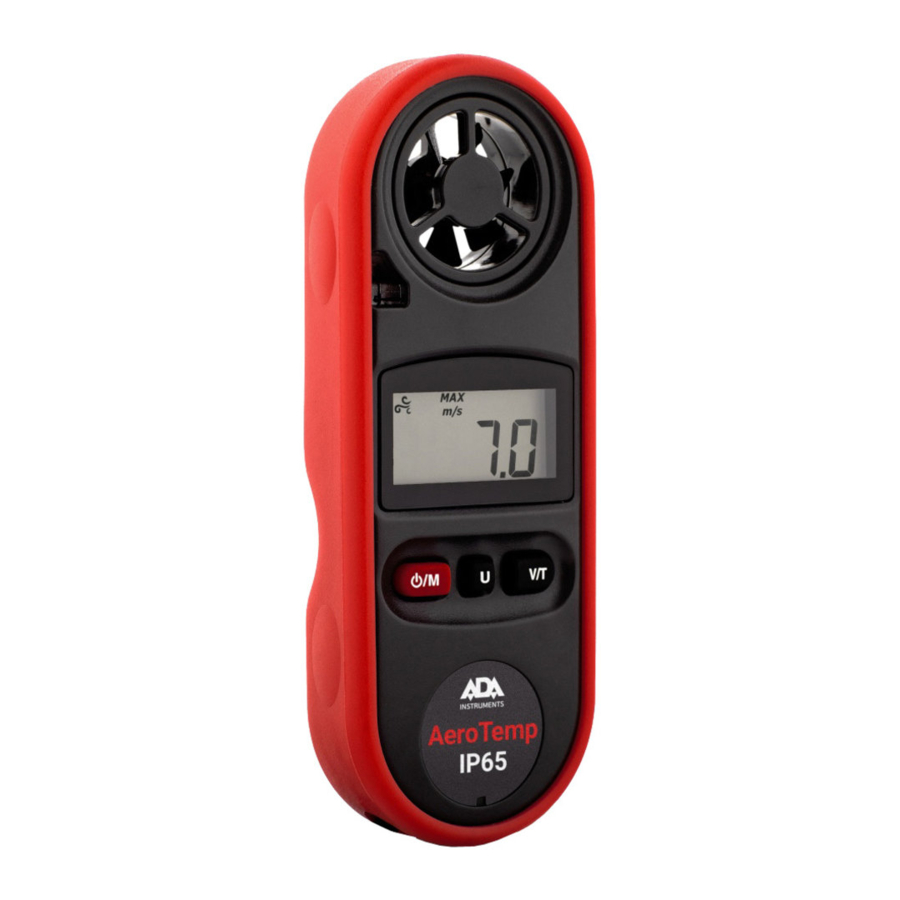

High accuracy, fast response
Color LCD display with backlight
Air velocity and temperature measurement
MAX/MIN/Data HOLD
Selectable measurement units: m/s, ft/min, MPH, km/hr or knots
Over range indication
Low battery indication
Enable/Disable auto power off
Open battery cover and install CR2032 battery into the battery compartment.
Note: Remove the battery when the meter is to be stored for long periods of time to avoid battery leakage. Make sure the wind is entered into the propeller right from the front side, i.e. LCD screen should be in face of the user.
Press and hold button (5) for 2 seconds to switch on the tool. Press and hold button (5) for 2 seconds to switch off the tool.
Air velocity and Temperature measurement
Press button (3) to switch between wind speed or temperature.
When wind speed icon is switched on, press button (4) to choose the wind speed unit: m/s, Km/h, ft/min, Knots, mph, bft (Beaufort scale). When temperature icon is displayed, press button (4) to choose the temperature unit between °C and °F.
Press button (5) to select the measurement mode: maximum and average value of wind speed, wind temperature and real-time value.
MAX icon shows the maximum value.
AVG icon shows the average mode for the average value for last 4 seconds.
Real-time value means when neither MAX nor AVG icon is displayed. Start the measurement after setting the measurement mode.
Icon "---" will be displayed when the wind speed exceeds the measurement range.
Press any button to switch on the backlight. The backlight will be automatically switched off if no buttons will be pressed within 10 seconds.
If the temperature is below 0°C, icon is shown on the display.
The tool will automatically shut off after 15 minutes of inactivity.
Low battery icon indicates that the battery is low and it's necessary to replace the battery with a new one.
Air velocity | ||||
Unit | Range | Resolution | Minimum wind speed | Accuracy |
m/s | 0~30 | 0,1 | 0,7 | ±5% |
ft/min | 0~5860 | 19 | 137 | |
knots | 0~55 | 0,2 | 1,4 | |
km/hr | 0~90 | 0,3 | 2,5 | |
mph | 0~65 | 0,2 | 1,6 | |
Temperature | ||||
Unit | Range | Resolution | Accuracy | |
°C | -10°C~+45°C | 0,2 | ±2°C | |
°F | 14°F~113°F | 0,36 | ±3.6°F | |
Operating temperature | -10°C~+45°C (14°F~113°F) | |||
Operating humidity | >90%RH | |||
Storage temperature | -10°C~+45°C (14°F~113°F) | |||
Battery | CR2032 3.0V | |||
Thermometer | NTC thermometer | |||
Dust/water protection | IP65 | |||
Current consumption | Approx. 3mA | |||
Dimensions | 47x21x126 mm | |||
Weight, with battery | 84,5 g |
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
