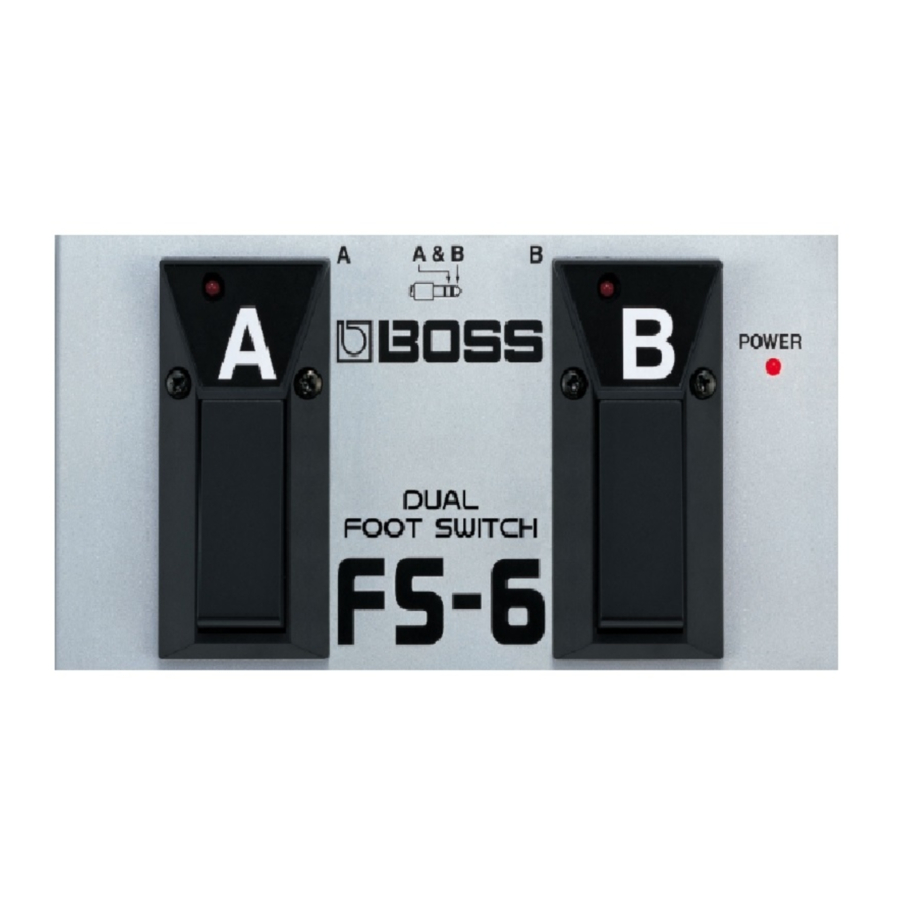

Boss FS-6 - DUAL FOOT SWITCH Manual

Introduction

Thank you, and congratulations on your choice of BOSS FS-6 Dual Foot Switch. Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES." These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, this manual should be read in its entirety.
The manual should be saved and kept on hand as a convenient reference.

Features

• This unit combines the functions of the FS-5L (latch type) and FS-5U (momentary type) foot switches. Both of the unit's foot switches may be set to function as either a latch or momentary type switch.
• You can connect to gear equipped with TRS 1/4" phone jacks using a connection cable with stereo 1/4" phone plugs at both ends.
• The FS-6 can be connected to another FS-6, a FS-5U/5L, or an AB-2.

Use the FS-6 with BOSS or Roland devices compatible with the FS-5L or FS-5U.
* No assurances can be given with respect to the proper functioning of this unit if it is connected with devices or jacks other than those specified.

Panel Description

fig.01

1. Pedal Switch A
   Use this as a switch for the device connected to Jack A or Jack A & B. Refer to "Connections."
2. Pedal Switch B
   Use this as a switch for the device connected to Jack B or Jack A & B. Refer to "Connections."
3. Pedal Switch A Indicator
   When pedal switch A is set to the latch type function, this indicator alternately lights or goes out each time the pedal switch is pressed. When pedal switch A is set to the momentary type function, this indicator lights only while the pedal switch is held down.
4. Pedal Switch B Indicator
   When pedal switch B is set to the latch type function, this indicator alternately lights or goes out each time the pedal switch is pressed. When pedal switch B is set to the momentary type function, this indicator lights only while the pedal switch is held down.
5. Jack A
   Connect the device being controlled with pedal switch A here. Use a connection cable with 1/4" phone plugs at both ends.
6. Jack B
   Connect the device being controlled with pedal switch B here. Use a connection cable with 1/4" phone plugs at both ends.
7. Jack A & B
   Connect devices equipped with TRS 1/4" phone jacks here. Use a connection cable with stereo 1/4" phone plugs at both ends.

   • Jacks A, B, and A & B also function as power switches. The power is switched on when a plug is inserted in any of these jacks, and switched off when no plug is connected. Unplug any cable from these jacks whenever you are not using the unit.
8. POLARITY Switch A
   This switches the polarity of pedal switch A. After referring to the owner's manual for the device you are connecting, switch this to the appropriate setting.
9. POLARITY Switch B
   This switches the polarity of pedal switch B. After referring to the owner's manual for the device you are connecting, switch this to the appropriate setting.
10. MODE Switch A
    This sets the function for pedal switch A to LATCH or MOMENTARY.
11. MODE Switch B
    This sets the function for pedal switch B to LATCH or MOMENTARY.
    • LATCH: Alternately switches on or off each time the pedal switch is pressed.
    • MOMENTARY: Switches on (off) while the pedal switch is held down, and off (on) when the switch is released.
12. POWER Indicator
    This lights when the power is on (when a plug is connected to a jack).
    • If this indicator goes dim or no longer lights while the power is on, the battery is near exhaustion and should be replaced immediately.
13. Battery Cover
    Open this cover to replace the battery. For instructions on replacing the battery, refer to "Changing the Battery."
14. FS Joint Panel
    The FS-6 can be connected to another FS-6, a FS-5U/5L, or an AB-2.

Before Using
Connect the battery supplied to the snap cord with correct polarity.

Connections

* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.

Connecting to Jack A & B

fig.02

* When connecting to Jack A & B, do not plug any device into Jack A or Jack B. This may result in damage and/or malfunction.

Connecting to Jack A or B

fig.03

Setting the POLARITY Switch

When matching the FS-6's polarity setting with the polarity setting for the FS-5U or FS-5L given in the owner's manual for the device being connected, set as described below.

* According to these settings, the setting switches to OPEN when the switch is on and CLOSE when the switch is off.

fig.04

Changing the Battery

When the POWER indicator goes dim or no longer lights while the power is on, it means that the battery is nearly dead and must be replaced.

* When turning the unit upside-down, handle with care to avoid dropping it, or allowing it to fall or tip over.

fig.05

* When changing the battery, be careful not to touch the circuit board inside the unit.

1. Open the battery cover.
2. Remove the old battery from the battery housing, and remove the snap cord connected to it.
3. Connect the snap cord to the new battery.
   * Be sure to carefully observe the battery's polarity (+ versus -).
4. Place the battery inside the housing.
5. Close the battery cover.
   * Press the cover until you hear it click into place.

Troubleshooting

Power not turning on (POWER indicator not lighting)

• Is the cable fully plugged into the jack?
  • The power switches when a cable is plugged into one of the jacks. Make sure the cable is plugged in firmly and securely.
• Is the battery dead?
  • Replace the battery with a new one as described in "Changing the Battery."
• Are you using a connection cable with stereo 1/4"phone plugs at both ends to connect to Jack A or Jack B?
  • Use a connection cable with mono 1/4" phone plugs at both ends.

Connected device not operating properly

• Have you connected to the appropriate jack on the device?
  • Check the type of jack used on the device being connected.
• Is the POWER indicator dimmed or off?
  • The battery may be dead. Replace the battery with a new one as described in "Changing the Battery."
• Is the setting of the POLARITY switch correct?
  • Set the polarity in accordance with the specifications for the connected device.
• Is the MODE switch setting correct?
  • Set the MODE in accordance with the specifications for the connected device.

Pedal switch indicator not lighting

• Is the switch off?
  • Depress the pedal switch.
• Is the POLARITY switch set firmly in the correct position?
  • Make sure the POLARITY switch is set securely in the correct position.

Indicator dimmed/off

• The battery may be dead. Replace the battery with a new one as described in "Changing the Battery."

Specifications

Controls

Pedal Switch A, B / POLARITY Switch A, B / Mode Switch A, B

Connectors

Jack A, Jack B (1/4 inch phone type)
Jack A & B (TRS 1/4 inch phone type)

Power Supply

DC 9 V: Dry battery/9 V 6F22 (carbon), 6LR61 (alkaline)
* Expected battery life under continuous use:
Carbon: 70 hours, Alkaline: 100 hours (A and B = ON, MODE = LATCH)
These figures will vary depending on the actual conditions of use.

Current Draw

8 mA (max.)

Dimensions

188 (W) x 91 (D) x 43 (H) mm
7-7/16 (W) x 3-5/8 (D) x 1-3/4 (H) inches

Weight

470 g / 1 lb 1 oz (including battery)

Accessories

Dry battery/9 V (6F22), Owner's Manual
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
