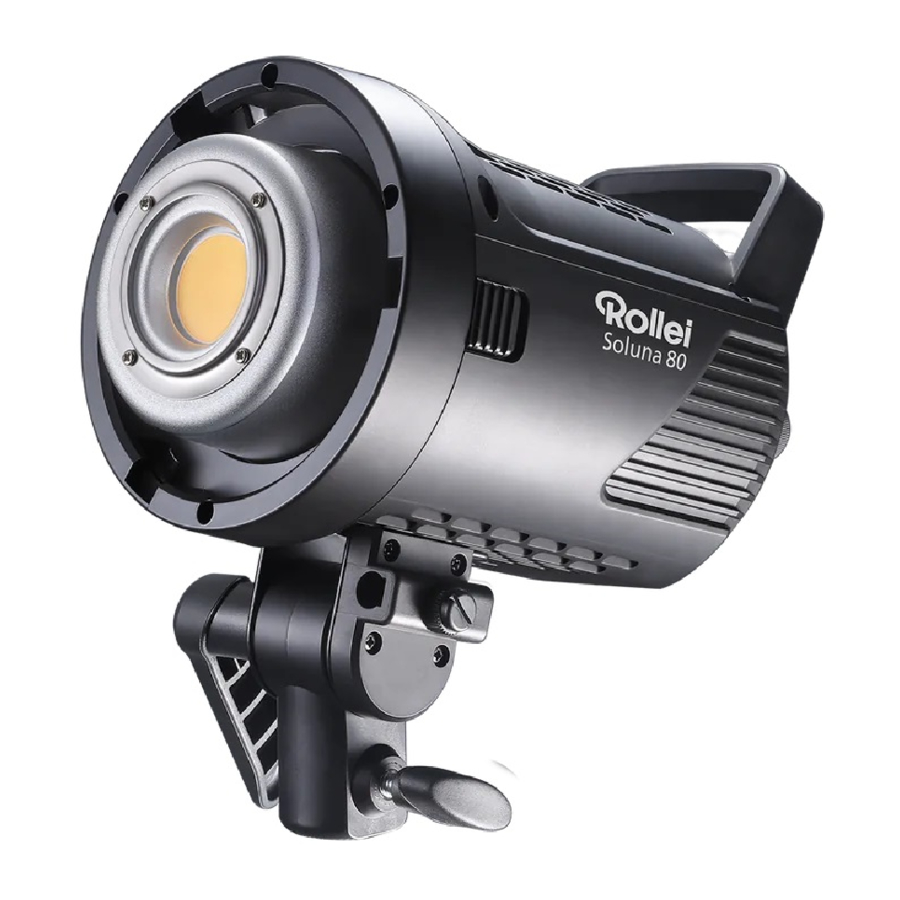

Rollei Soluna 80 / 80Bi / 120 / 120Bi - LED Steady Light Manual

Before the First Use

Before using the device for the first time, please read the operating instructions and safety instructions carefully.

Keep the operating instructions together with the device for future use. If other people use this device, make this manual available to them. If you pass on the device to a third party, this manual is part of the device and must be supplied with the device.

Intended Use

This device is designed for photo and video lighting only. It may not be used for other purposes, and especially not for domestic room lighting.

Explanation of Symbols

The following symbols are used in this manual, on the LED Light or on the packaging.

	Products marked with this symbol comply with all relevant community regulations of the European Economic Area.
	Products marked with this symbol are operated with direct current.
	Products marked with this symbol are operated with alternating current.
	Products with this symbol have additional or reinforced insulation and comply with protection class II.
	For indoor use only. Devices with this symbol may only be operated indoors (dry environment).

What's in the Box

• Rollei Soluna 80/80Bi/120/120Bi
• Power adapter
• Protective cap
• Reflector
• Diffuser cloth
• Safety rope
• Quick start guide

Product Overview

1) Only for Soluna 80Bi/120Bi.

1. COB LED
2. Bowens S-Type mount
3. Accessories release button
4. Display
5. Light effect knob
6. Power connection
7. Umbrella holder
8. Light stand locking screw
9. Power/color temperature knob
10. Bluetooth ® * button
11. On/off switch
12. Tilt locking screw

Display Overview

1. Power symbol
2. Light effect symbol
3. Light effect number
4. Frequency value symbol
5. Frequency value
6. Color temperature symbol
7. Battery symbol
8. Power symbol
9. Bluetooth^®* symbol

Operation

Switching On

• Plug the mains cable into the appropriate socket on the Soluna 80 / 80 Bi / 120 / 120 Bi, switch the unit on using the on/off switch, the LC display lights up.

Adjusting the Brightness

• Turn the power/color temperature knob [9] to adjust the brightness. The dimming range is 0 ~ 100%, the accuracy is 1%.
• With the Soluna 80/120, you can change the brightness in 25% steps by briefly pressing the power/color temperature knob [9].

Light Effects
Turn the light effect knob [5], set the desired light effect and choose between light effects 1 to 9.

1 = TV
2 = Defective light bulb
3 = Thunderstorm
4 = Flame
5 = Pulsation
6 = Paparazzi
7 = High / low beam
8 = SOS
9 = Warning light

Press the light effect knob [5] twice briefly to adjust the frequency of the respective effect.

Rollei App / Bluetooth^®*

Download the "Rollei Studio" app directly from the App Store or the "Studio" app from the Amazon App Store.

Connection with the Smartphone

1. Activate Bluetooth^®* on your smartphone.
2. Turn on the Rollei Soluna 80 /80 Bi / 120 / 120 Bi and use the Bluetooth^®* button to activate Bluetooth^®*.
3. Open the „Rollei (Studio)" app. App, the connection with the smartphone will be established automatically. If this does not happen, add the light via the „+" symbol in the app.

Note: If you want to connect the LED light with the app on a different smartphone, reset the Bluetooth^®*-. signal by briefly pressing the Bluetooth^®* button [10] twice until the Bluetooth^®* symbol flashes. The reset is now complete.

Note:

• The connection is established using "Bluetooth^®* Low Energy" (BLE). This requires a location release of the app.

The connection to the LED light is established directly in the app.

Troubleshooting / Fault Rectification

Unit Does Not Switch On

• Please check that the mains cable is correctly seated during mains operation.
• Please check (if necessary with a suitable measuring device) whether there is voltage for the mains cable at the socket.
• Please check the appliance/house fuse. Replace the fuse(s) if necessary.

If a problem persists, please contact your Rollei dealer.

Technical Data

We reserve the right to update functions or parameters without further notice. Misprints and errors excepted. Reproduction of these operating instructions – even in part – is not permitted.
*The Blue tooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Rollei is under license. Other trademarks and trade names are those of their respective owners.

Safety Instructions

Danger from electric current!

Faulty electrical installations or excessive mains voltage can cause electric shock.

• Only connect the product if the mains voltage of the socket corresponds to the specifications on the type plate.
• Connect the product to an easily accessible power outlet so that you can quickly disconnect it from the mains in case of problems.
• Use only the supplied power cord.
• Do not use the product if it is visibly damaged or if the cable is defective.
• If the product or its accessories are damaged, they must be replaced or repaired by the manufacturer, its service department or a similarly qualified person to prevent hazards.
• The housing must not be opened and repairs must only be carried out by a qualified technician. To do this, contact a specialist workshop. Any liability and all warranty claims are excluded in the event of repairs by the user, improper connection or incorrect operation.
• If you do not use the product for a long period of time, always disconnect it from the power source.
• Protect the product from moisture. Do not touch the product with wet/damp hands or immerse it in water.
• This product is not waterproof! Do not use this product in the rain or in wet environments. Never touch the product during a thunderstorm.
• Before disconnecting the power, turn off the power at the main switch.
• Do not store or use the device in locations where it is exposed to strong electromagnetic fields or dust. Keep the unit away from other sources of interference.
• Attention !
  Never use the power cord as a carrying handle.
• Keep the product and accessories away from naked flames, hot surfaces and highly flammable materials.
• Lay the power cord so that it does not present a tripping hazard.
• Do not bend the power cord or lay it over sharp edges.

Attention!
Danger for children and persons with limited physical, sensory or mental abilities (e.g. partially disabled, older persons with limited physical and mental abilities) or lack of experience and know-how (e.g. older children).

• This product may be used by persons with reduced physical, sensory or mental abilities or lack of experience and know-how, provided that they are supervised or have received instructions for the safe use of the product and understand the potential hazards arising from its use. Children must not play with the product. The product must not be cleaned or maintained by children. Keep children under eight years of age away from the product and its accessories.
• Do not insert any objects into the product.
• Do not leave the product unattended during operation.
• The product is not a toy. Keep the product, accessories and packaging materials away from children and pets to prevent accidents and suffocation.
• For photographic lighting purposes only. Not suitable for permanent room lighting.
• Do not film car, bus, bicycle, motorbike or train drivers while driving with this product. The driver may be blinded and cause an accident. This also applies to unlisted persons or groups if possible glare could cause an accident.
• Do not shine directly into the eyes of people or animals as this may cause damage to the retina, visual disturbances and even blindness.
• Ensure adequate ventilation during operation. Never cover the ventilation slits of the unit.
• Do not use or store the unit in high temperatures or in closed rooms with direct sunlight. The product should not be used in ambient temperatures above 40°C.
• Mount the device on a tripod with sufficient load-bearing capacity and set up the tripod so that it cannot tip over or slip.
• Allow the device to cool down before packing it for transport or storage.

Disposal

Dispose of the packaging according to its type. Use the local possibilities for collecting paper, cardboard and light packaging. (Applicable in the European Union and other European countries with systems for separate collection of recyclable materials.)

Devices marked with this symbol must not be disposed of with household waste! You are legally obliged to dispose of old appliances separately from household waste. Information on collection points that accept old appliances free of charge is available from your local authority or town council.

Conformity

Rollei GmbH & Co. KG declares that the radio equipment types "Rollei Soluna 80", "Rollei Soluna 80Bi", "Rollei Soluna 120" and "Rollei Soluna 120Bi" comply with Directive 2014/53/EU.

The full text of the EU Declaration of Conformity is available at the following Internet addresses:
www.rollei.com/egk/soluna80
www.rollei.com/egk/soluna80bi
www.rollei.com/egk/soluna120
www.rollei.com/egk/soluna120bi

Rollei GmbH & Co. KG
In de Tarpen 42, D-22848 Norderstedt
Germany
