Jacobs SNIFFER 430 User Manual

Hide thumbs Also See for SNIFFER 430:

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Jacobs SNIFFER 430

Summary of Contents for Jacobs SNIFFER 430

  • Page 2: Table Of Contents

    SNIFFER USER MANUAL Jacob’s Table of Contents Table of Contents The use and principal of application Safety and Liability Warranty Technical Specifications Operation Troubleshooting R 0 | JUNE 2021 | PAGE 2...

  • Page 3: The Use And Principal Of Application

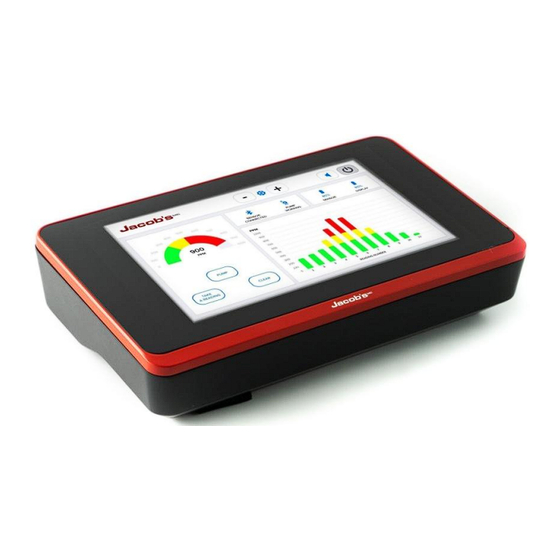

    SNIFFER USER MANUAL Jacob’s 1. The use and principal of application 1.1. SNIFFER system (System) is used to pinpoint leaks in pipes or vessels by the tracer gas (a mixture of 95 % nitrogen and 5% hydrogen gas) technique. SNIFFER system consists of a measurement Device and a wireless hydrogen H2 Sensor (Figures 1-2) used to detect and measure hydrogen gas concentration in the air.

  • Page 4: Safety And Liability

    SNIFFER USER MANUAL Jacob’s SNIFFER Figure 2. Sensor. 2. Safety and Liability 2.1. This manual contains important information related to safety and proper use of the SNIFFER system. Read it carefully before the first use of the equipment. Keep this manual for future reference. 2.2.

  • Page 5: Warranty

    SNIFFER USER MANUAL Jacob’s other works or factors related to the system operation or leak detection. The producer or reseller of the system is not liable for any damages arising from use of the system or decisions taken based on the system performance or readings.
  • Page 6 SNIFFER USER MANUAL Jacob’s SNIFFER sensor Specifications Gas detector Hydrogen, H PPM readings resolution 1 PPM H Gas sensor heat up time 1.5-10 minutes (vary under different environmental conditions) Gas sensor pump flow rate 1.5 liters/sec PPM update rate 1 sec Sensor to Device Wireless (Bluetooth BLE4), 10-meter communication...
  • Page 7 SNIFFER USER MANUAL Jacob’s Figure 3. SNIFFER System Kit. R 0 | JUNE 2021 | PAGE 7...

  • Page 8: Operation

    SNIFFER USER MANUAL Jacob’s 5. Operation 5.1. Switch on Device and H2 Sensor in an area where no traces of H gas are present. Device On/Off button is located on the top edge of Device (Figure 4). The H2 Sensor On/Off button is located on the top edge of H2 Sensor (Figure 4).
  • Page 9 SNIFFER USER MANUAL Jacob’s SNIFFER Figure 4. Device and H2 Sensor Device On/Off Device button Device AC adapter power socket Device battery status led Device reset button H2 Sensor On/Off button Air outlet H2 Sensor AC adapter power socket H2 Sensor battery status led SNIFFER Figure 5.

  • Page 10: Troubleshooting

    SNIFFER USER MANUAL Jacob’s 6. Troubleshooting Problem Solution Device do not detect the H2 Check if H2 Sensor is switched on Sensor Gas readings are reducing too Sensor air outlet (small opening on the slow after exposure to tracer gas top edge of H2 Sensor, see Figure 4) is blocked.
  • Page 11 .........
