Summary of Contents for Flavel FDW63

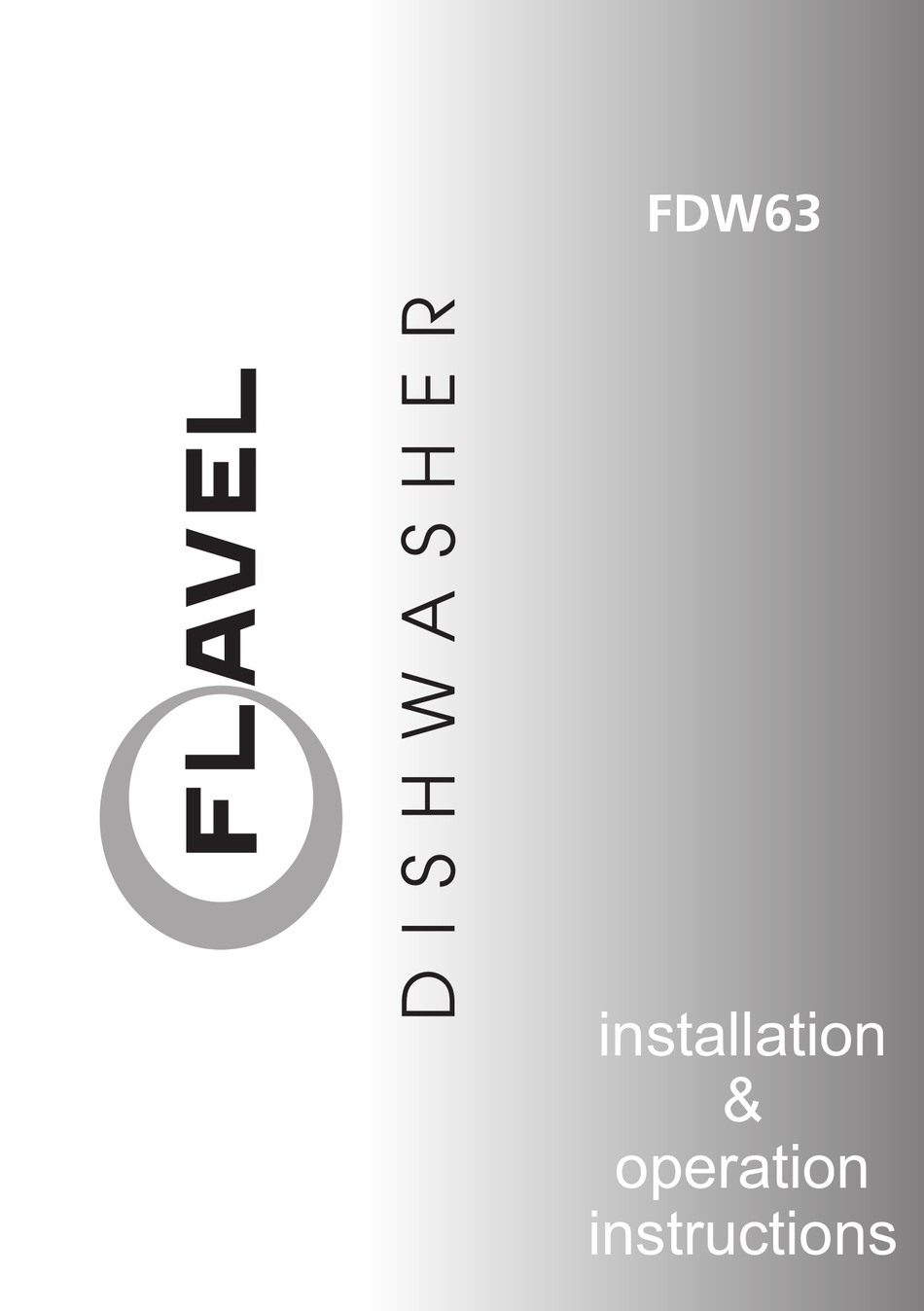

- Page 1 FDW63 installation & operation instructions...
- Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
What is not covered? ......37 Electrical connection......10 Important Notes .......38 This appliance must be earthed ..11 Does Flavel offer replacements? ..39 Fitting a different plug ....... 11 When will the repair take place?..39 Initial use .......... 11 4 PREPARATION Tips for energy saving ......12... -
Page 4: Instructions For Safety And Environment
Instructions for safety and envIronment This section contains safety electric shock! instructions that will help to • Never touch the plug with give protection from risk of wet hands! Never unplug by personal injury or property pulling on the cable, always damage. -
Page 5: Children's Safety
Instructions for safety and envIronment • This appliance is intended • Store all detergents and to be used in household and additives in a safe place similar applications such as: away from the reach of the - Staff kitchen areas in shops, children. -
Page 6: Compliance With Weee Directive And Disposing Of The Waste Product
Instructions for safety and envIronment Compliance with WEEE collection points designated by the local authorities. Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). -
Page 7: Dishwasher
Dishwasher Overview 1. Top Cover (depends on model) 2. Upper impeller 3. Lower basket 4. Lower impeller 5. Filters 6. Rating Label 7. Control panel 8. Door 9. Detergent dispenser 10. Lower impeller slot 11. Cutlery basket 12. Salt reservoir lid 13. -
Page 8: Technical Specifications
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 9: Installation
Installation To make the product ready for use, • Do not install the product at places make sure that the electricity, tap water where temperature may fall below supply and water drainage systems are 0ºC. appropriate before calling the Authorised •... -
Page 10: Connection To The Drain
Installation Connection to the drain Diswashers door must be aligned properly otherwise hot Water discharge hose can directly be steam can escape! Danger of connected to the drain hole or sink’s serious burns, other injury or drainage. The length of this connection may damage furniture. -
Page 11: This Appliance Must Be Earthed
Installation Connect the brown (live) wire to the This appliance must terminal in the plug marked ‘L’ or be earthed coloured red. If the fitted moulded plug is not suitable for your socket, then Green and yellow or green the plug should be cut off and an appropriate plug fitted. -
Page 12: Preparation Tips For Energy Saving
Preparation Tips for energy saving Adjusting the water softening system Following information will help you use the product in an ecological and energy- Cleaning, rinsing and drying performance efficient manner. of your dishwasher will increase when Wipe away any coarse food remnants water softening system is adjusted properly. - Page 13 Preparation Remove the test Turn on the tap and Hold the test strip in Remove the test Wait for 1 minute. The test strip shows strip from the let the water run for the water for about strip from the water you the hardness packet.
-
Page 14: Adding Salt
Preparation If you move your house, it is necessary to readjust water hardness level of your machine by considering the information given above according to the hardness level of the supply water in your new location. Your machine will display the most recently adjusted water hardness level. -
Page 15: Detergent
Preparation Only use the detergents produced particularly for use with dishwashers. Never use washing up liquids. We recommend you not to use detergents that contain chlorine and phosphate as they are harmful for the environment. Adding detergent You can put about 2 kg of Refer to the “Programme Table”... -
Page 16: Combined Tablet Detergents
Preparation 2. Put suggested amount of powder, liquid/gel or tablet detergent in the dispenser. Inside the detergent dispenser, there are level markings that help you use appropriate amount of detergent. When brimful, detergent dispenser will contain 40 cm³ of detergent. Fill Use powder detergent in short detergent up to 15 cm³... -
Page 17: Rinse Aid
Preparation 1. Open the lid of the rinse aid reservoir While using combined tablet by pressing its latch (B). detergents contact with the detergent producers if the dishes are wet and/or if you notice limescale spots particularly on glasses after the washing programme is over. - Page 18 Preparation Items not suitable for washing in the and smaller, delicate and light items in dishwasher the upper basket. • Never wash dishes soiled by cigarette • Place the hollowed dishes such as ash, candle remnants, polish, dyestuff, bowls, glasses and pans upside down chemicals, etc.
- Page 19 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware 19 / 39 EN...
-
Page 20: Cutlery Basket
Preparation Cutlery basket Height setting with empty basket Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an In this model, the height setting of the efficient manner. upper basket may be changed using the Since the cutlery basket can be moved wheels which are mounted at two different (A, B), you can create more space while... -
Page 21: Collapsible Lower Basket Tines
Preparation Collapsible lower basket tines Bringing the tines to the horizontal position by holding There are foldable tines (A) located at them from the tips may cause the lower basket of the machine are them to bend. Therefore, it will designed for an easier placement of large be appropriate to bring the tines pieces such as pans, bowls, etc. -
Page 22: Operating The Product
Operating the product 1. On/Off key 2. Programme Selection / Programme Cancel (3 seconds) key 3. Function keys Tablet detergent function Half Load function Extra Rinse Function 4. Programme indicator 5. Salt indicator 6. Time Delay Countdown Indicator 7. Start Indicator 8. -
Page 23: Preparing The Machine
Operating the product Programme selection On/Off key When you press On / Off key, indicator 1. Press On/Off key to turn on your lights illuminate on the display for ON machine. position. The lights turn off in OFF position. 2. Refer to the table of "Programme data Programme Selection / Programme and average consumption values"... - Page 24 Operating the product 24 /39 EN...
-
Page 25: Auxiliary Functions
Operating the product Auxiliary functions Tablet detergent function Allows to obtain a better drying Washing programmes of your dishwasher performance from the multi-purpose are designed to obtain the best cleaning detergents called as all in one detergents effect, considering the type of the soiling, such as 2in1, 3in1, 4in1, 5in1 and etc., soiling degree and properties of the dishes depending on the hardness level of the tap... -
Page 26: Scheduling The Washing Time
Operating the product 3. You can turn ON or OFF the Warning 2. Once you press the Time Delay key "3 Sound/Interior Lighting feature with the hours" Time Delay indicator will start time delay key. flashing. 4. Turn off the machine with On/Off key to 3. -
Page 27: Cancelling The Programme
Operating the product after selecting the programme and auxiliary Salt indicator ( ) functions. Please check the salt indicator on the Your machine performs water display to see whether there is adequate softening depending on the amount of softening salt in the dishwasher hardness level of the supply or not. -
Page 28: Water Cut-Off Warning
Operating the product Leave your dishes in the machine for about 15 minutes to allow them cool down after they are washed. Your dishes will dry in a shorter time if you leave the door of your machine ajar during this period. This process will increase the drying effectiveness of your machine. -
Page 29: Maintenance And Cleaning
Maintenance and cleaning Cleaning the filters Service life of the product extends and frequently faced problems decrease if it is Clean the filters at least once a week in cleaned at regular intervals. order for the machine operates efficiently. Unplug the product and turn off Check if food residues are left on the filters. -
Page 30: Cleaning The Hose Filter
Maintenance and cleaning Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. -
Page 31: Cleaning The Impellers
Maintenance and cleaning Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to Lower impeller remove the upper impeller (A, B). -
Page 32: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 33 Troubleshooting • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 34 Troubleshooting the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme. There is a different odour in the machine A new machine has a peculiar odour.
- Page 35 Troubleshooting • Kitchen utensils that are already corroded are washed in dishwasher. >>> Rust on a corroded item can migrate to other stainless steel surfaces and cause corrosion on those surfaces as well. Such items should not be washed in dishwashers. Detergent remains in detergent dispenser.
- Page 36 Troubleshooting A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light. • Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
-
Page 37: Guarantee Details
Repairs necessary as a direct or indirect result of: Accidental damage, misuse or abuse of a product. An attempted repair of a product by anyone other than a Flavel Approved Engineer (the “Engineer”). Installation or use of a product where such installation or use fails to meet the requirements contained in this guarantee or the User Instructions Booklet. -
Page 38: Important Notes
Guarantee Details • Repairs to a product operated at any time on commercial or non-residential household premises. (Unless we have previously agreed to the installation environment). This guarantee is limited to the cost of repairing the product. To the extent permitted by law, the manufacturer does not accept and will not be held liable for any financial loss incurred in connection with the failure of any product to operate in accordance with the expected standards. -
Page 39: Does Flavel Offer Replacements
Guarantee Details Does Flavel offer replacements? This is a repair-only guarantee. On occasion, the Manufacturer may, at its sole discretion, replace your product with a new product instead of carrying out a repair. Where a replacement is offered, this would normally be an identical model, but when this is not possible, a model of similar specification will be provided.
