Keithley Instruments, Inc.

28775 Aurora Road

Cleveland, Ohio 44139

1-888-KEITHLEY

http://www.keithley.com

Description

The Model 1754 is a test lead kit with interchangeable plug-in accessories. This kit is intended for use with

instruments that use safety input connectors.

Finger guards and shrouded banana plugs help minimize the chance of making contact with live circuitry. The

plug-in tips are interchangeable and you can use them in any combination.

The item shipped may vary from the model pictured here.

The kit includes:

• Two test leads, one red and one black

• Two spade lugs

• Two standard banana plugs

• Two phone tips

• Two hooks

• Two miniature alligator clips with boots (pictured separately)

Characteristics

Test lead length: 36 in. (91.4 cm)

Wire: 18 AWG

Phone tip diameter: 0.060 in. (1.52 mm)

Insulation resistance: 5 kV minimum

Current rating: 15 A minimum

PA-171 Rev. C / May 2013

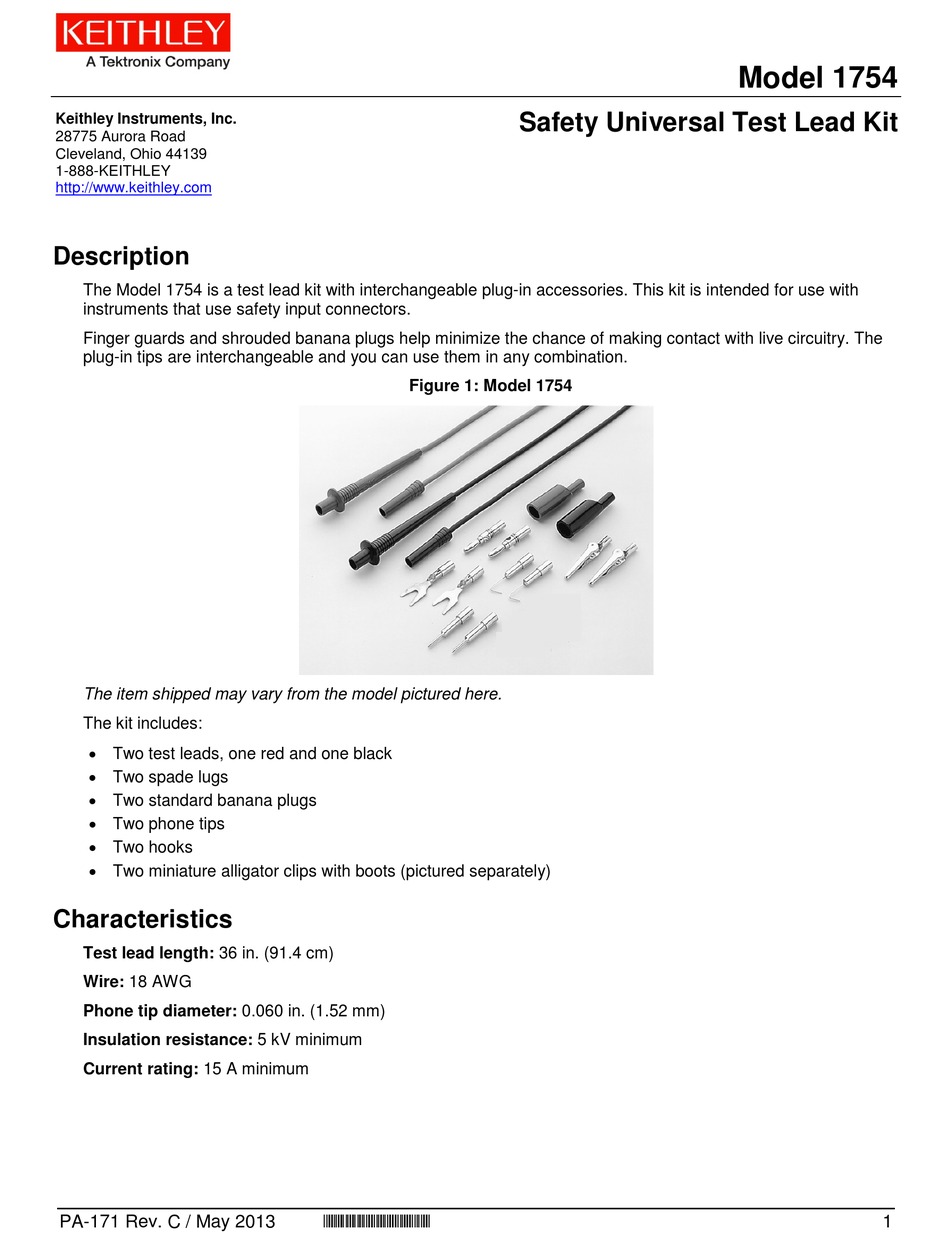

Figure 1: Model 1754

*PPA171C*

Safety Universal Test Lead Kit

Model 1754

Page 1 Model 1754 Safety Universal Test Lead Kit Keithley Instruments, Inc. 28775 Aurora Road Cleveland, Ohio 44139 1-888-KEITHLEY http://www.keithley.com Description The Model 1754 is a test lead kit with interchangeable plug-in accessories. This kit is intended for use with instruments that use safety input connectors. Finger guards and shrouded banana plugs help minimize the chance of making contact with live circuitry.
Page 2 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
Page 3 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. Instrumentation and accessories shall not be connected to humans. Before performing any maintenance, disconnect the line cord and all test cables. To maintain protection from electric shock and fire, replacement components in mains circuits —...
