Summary of Contents for ROBERTO FIORE Cabinets To Go WC3012

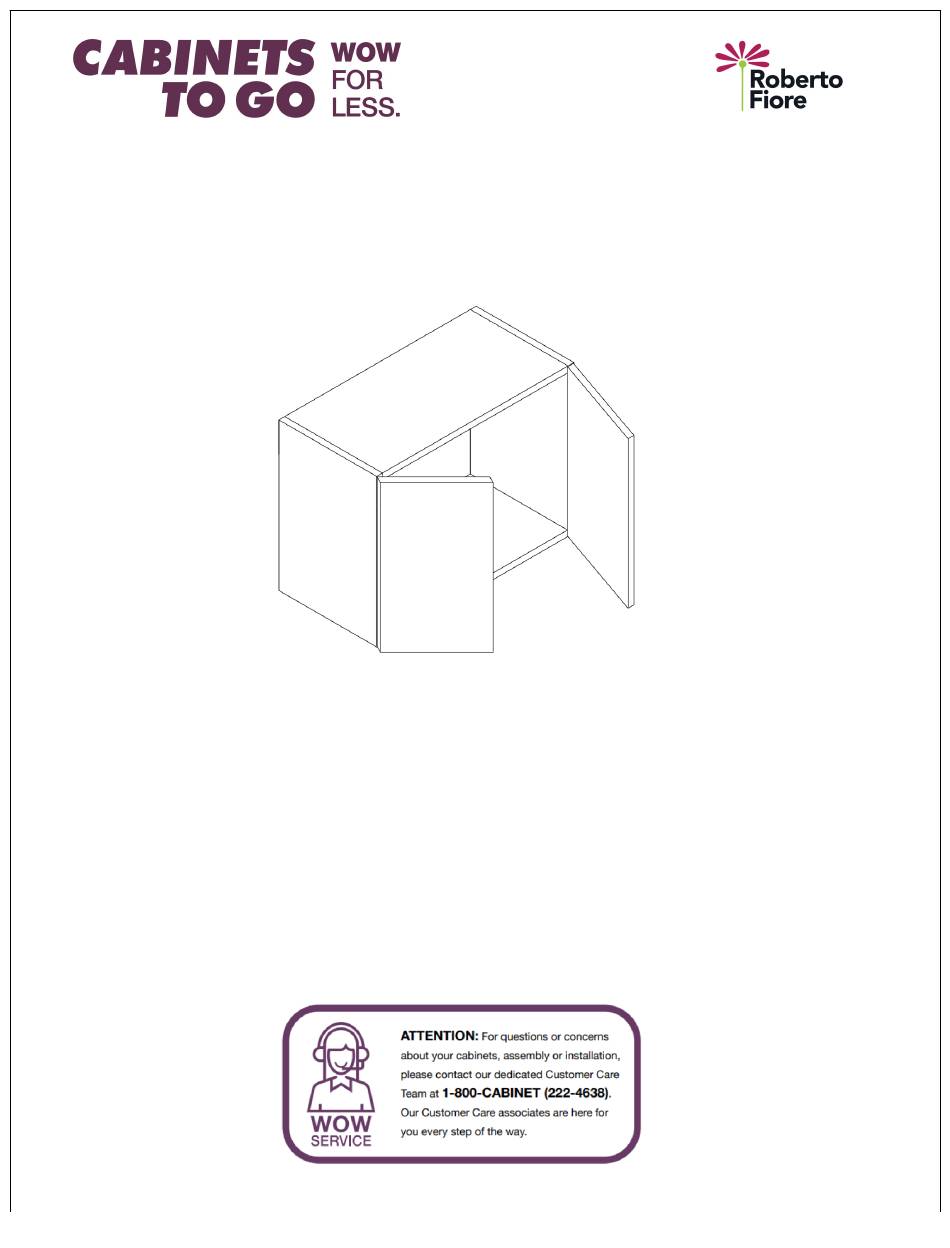

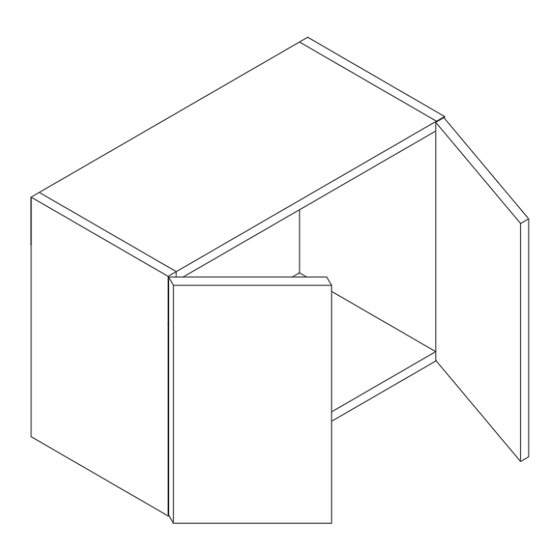

- Page 1 ASSEMBLY INSTRUCTIONS These assembly instructions are only applicable for all Wall Cabinets ITEM No.:WC3012 WC3612 WC3015 WC3615 WC3018 WC3618 Page 1...
- Page 2 ►General Instructions: Thank you for purchasing a Cabinets To Go product. You are now the proud owner of a high quality product designed to face the test of daily use and guaranteeing your enjoyment for many years to come. Carefully read the instructions before starting the installation. During assembly, please follow all generally accepted safety procedures. Failure to adhere to the following instructions will invalidate the warranty and Cabinets To Go will decline any responsibility for any damages caused. Any installation which does not correspond to the instructions may result in defects, malfunctioning parts, significant damage and/or injury. Before the assembly begins, check that all appropriate and required plumbing and electrical connections exist. Before drilling, make absolutely sure that there are no pipes (gas, water,electricity, heating, etc.) at the drilling location. Cabinets To Go will not be held responsible for failure to follow these instructions. PRIOR TO ASSEMBLY, PLEASE MAKE SURE YOU HAVE ONE FACE FRAME BOX AND ONE CARCASS BOX, WHICH HAVE ALL THE PARTS IN THE QUANTITIES MENTIONED BELOW. IF YOU ARE MISSING ANY PARTS, PLEASE STOP AND CONTACT CUSTOMER CARE IMMEDIATELY AT 1-800- CABINET.
- Page 3 ►Instructions: 1.Unpack box & identify pieces on Page 2. Place side panel (C) onto a soft work surface. (Figure 1) 2.Install Hinge base plates (a) onto side panel into Figure 1 designated holes using screws (d). (Figure 2) 3.Install metal male cam locks (e) into designated holes on side panel (C) and bottom panel (D).
- Page 4 8. Install hinges onto door into designated holes using screws provided. Install door onto cabinet sides though pre-marked screw holes. Install the bumpers (b) onto the door corners opposite of the hinges. Q ty ►Maintenance For daily cleaning, use a dry cloth and a soft liquid cleaner. Never use abrasive cleaners containing acetone, chlorine or strong bleach.
