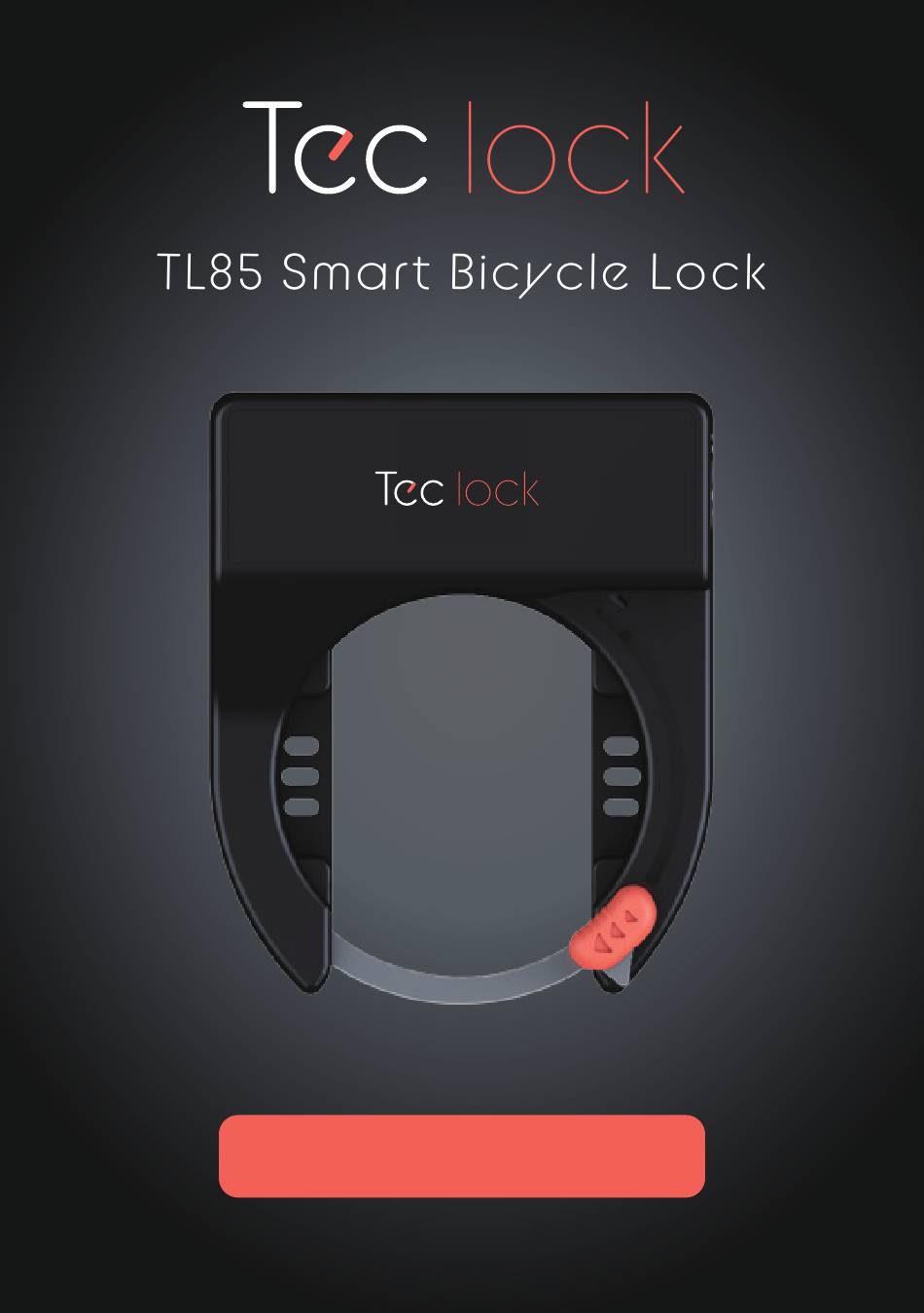

Page 1 Product Manual...
Page 2 Tec-Lock shall not be liable for any accident, loss, damage or increase of expenses arising from the use of TL85 lock directly or indirectly. Tec-Lock's obligation under this warranty is to repair or replace any parts of the system.
Page 3: Table Of Contents
Contents 01 Introduction 1.1 About the TL85 Smart Bicycle Lock 1.2 Table of contents 1.3 Important information 02 Instructions for using the TL85 Lock 2.1 Application 2.2 TL85 Lock Operations 2.3 Disposal 03 Technical speci cations 3.1 Product speci cations 3.2 Performance parameters...
Page 4: Introduction
This manual describes the speci cations and user instructions of the TL85 smart bicycle lock. The TL85 smart bicycle lock (TL85 for short) is a digital lock that can be installed on bicycles and electric moped. It features remote unlocking, RFID card unlocking, Bluetooth unlocking, vehicle positioning, vehicle tracking, sound and light notiﬁcation, motion detection, OTA...
Page 5 Supports ISO14443-A, ISO14443-B, MIFARE standards Unlock RFID unlocking via RFID, network and Bluetooth Charge the TL85 with the supplied magnetic charging cable or Charging hook up a Tec-Lock solar panel or an external 5V power supply to the external connector The ﬁrmware can updated over-the-air via the network connection...
Page 6: Table Of Contents
Chapter 5 - describes the system labels. Chapter 6 - Provides transportation and storage conditions. Important Information Before using the TL85 lock, you must read this manual in its entirety and pay particular attention to the Notes, Caution and Warning messages. Note Important information for the user.
Page 7: Instructions For Using The Tl85 Lock
02 Instructions for Using the TL85 Lock Application The TL85 smart lock is designed for use on bicycles with tires of up to 80mm wide. TL85 lock operations Unlock The lock can opened in several ways: with a registered RFID card or with the Tec-Lock app.
Page 8 Lock Slide the locking bar all the way Press the button on the handle to down to close the lock; release the safety mechanism; You will hear a “click” when the lock is fully closed. The locking bar should stay in the closed positon after you release the handle.
Page 9 Charging The TL85 lock can be charged in 2 ways; with the magnetic connector port at the side of the lock or via the external connector port when connected to a solar panel. Magnetic connector charging Connect the magnetic connector of the dedicated USB cable to the magnetic connector at the side of the lock and plug the USB connector in to a (mobile phone) DC5V charger.
Page 10 Sound indicator Status Beep Action RFID card read Beep twice Received an OTA Beep twice Unlock CMD received Beep once Report unlocking success Beep once Alarm Parameters can be conﬁgured LED indicator Status LED indicator Report GPS While riding Blue - blink twice Net connection Yellow-Green - steady RFID card read...
Page 11 External Connection Port The TL85 lock has a 6 pin port for external connections at the back of the lock. It can be used for charging. Connecting a solar panel Insert the male head of the special 6P conversion cable into the 6P connector on...
Page 12: Disposal
Disposal When the TL85 lock is discarded, it should be disposed of according to the local laws and regulations. 03 Technical Speci cations Product speci cations 44.9 165.2 84.9 20.1 ( Unit: mm )
Page 13: Performance Parameters
Performance parameters Lock Parameters Size 165.2 * 197.9 * 44.9mm 1.1kg Weight Shell material Black Shell color Female, diameter: 8.1mm 6P connector speci cation Rechargeable Li-ion, 3.7V Built-in battery DC5.0±0.5V / 2A Charging IP66 Waterproof class Operation temperature -10℃～+55℃ Working humidity 10%～85% Storage temperature -20℃～+80℃...
Page 14: Connector Interface De Nition
GNSS performance Position Type Support GPS, GLONASS, IRNSS, BeiDou, Galileo, QZSS Frequency band GPS L1/L5, GLONASS L1, QZSS L1/L5 Sensitivity -163dBm (Tracking) Cold start < 34 seconds, hot start < 2 seconds (Open land, Start-up time sunny day without shelter) Accuracy <...
Page 15: Installation Of The Tl85 Lock
04 Installation of the TL85 Lock Installation with mounting set The Tec-Lock mounting set makes it easy to mount the TL85 Smart Lock on any bike frame. Wrap the cable ties around the bicycle Put the cable ties behind the lock,...
Page 16: System Labels
Temperature limit Pressure limit 06 Transportation and Storage Conditions Transportation conditions Storage conditions Temperature -10～+55℃, relative humidity ≤85%, no corrosive gas, well-ventilated and clean environment. The TL85 lock should be stored in a dry place away from magnetic eld sources.
Page 17: Testing And Certi Cations
07 Testing and Certi cations Testing We tested the TL85 lock for continuous lock opening and closing. The test life reached up to 15k times or more. Based on the average frequency of a lock being used 5 times a day, the mechanical life span of a lock is over 8 years or more.
Page 18 www.tec-lock.com...
