PowerDsine PD-64004 Brochure

Power over Ethernet
Embedded Solutions

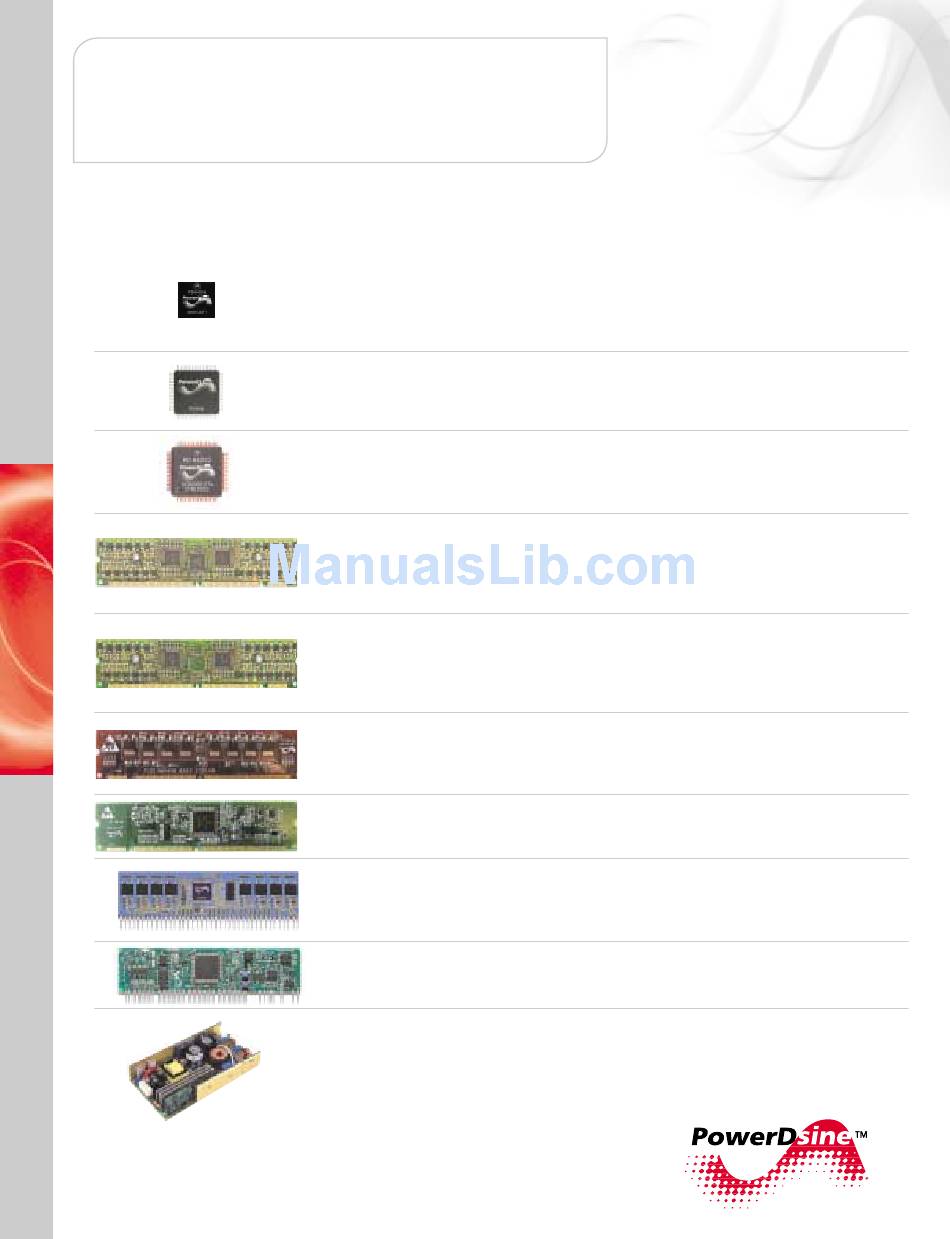

Product List - 802.3af Compliant PoE Embedded Solutions

PD64004 - 4-channel Power over Ethernet Manager
• Provides 802.3af power to 4 Ethernet ports (15.4 watts per port)
• Most integrated solution for residential routers, wireless LAN switches
and low port count switches
• Smallest foot print
• Minimizes the number of external components and reduces overall system costs
PD64008 - 8-channel Power over Ethernet Driver
• First PoE driver in the market, and building block for the first generation
of PoE modules and switches worldwide
• With 8 ports, it is suited for both high density and low port count switches
PD64012 - 12-channel Power over Ethernet Manager
• Provides 802.3af compliant power to 12 Ethernet ports (15.4 watts per port)
• Most integrated solution for high port density switches
• Minimizes the number of external components and reduces overall system costs
PD67024M - 24-channel Power over Ethernet Master DIMM
• 24-port, pre-tested 802.3af compliant module based on the PD64012 IC
• Utilizes the industry standard DIMM package and mechanics to simplify
integration of 802.3af compliant Power over Ethernet into switches
• Serves as Master on a 48-port solution
PD67024S - 24-channel Power over Ethernet Slave DIMM
• 24-port module based on the PD64012 IC, used in conjunction
with the PD67024M master, for a 36/48-port solution
• Utilizes the industry standard DIMM package and mechanics
• Simplifies the integration of 802.3af compliant Power over Ethernet into switches
PD650008-DIMM - 8-channel Power over Ethernet DIMM Driver
• The original 8-port PoE DIMM
• Based on the PD64008, enables switch vendors to reduce time to market
by using a standard DIMM interface and a pre-tested module
PD660000-DIMM - Power over Ethernet DIMM Controller
• The PD66000-DIMM is capable of controlling up to six PD65008-DIMMs
• Enables the customer to deploy 48-port solutions with minimal board space
PD650008 - 8-channel Power over Ethernet SIP Driver
• 8-port PoE Single Inline Package based on the PD64008
• Enables switch vendors to reduce time to market by using a small and pre-tested module,
which is soldered to the switch board
PD66000 - Power over Ethernet SIP Controller
• The PD66000 is capable of controlling up to six PD65008-DIMMs
• Enables the customer to deploy 48-port solutions with a minimal board space
PD-IM-7024 - 24-channel PoE Power Supply
• 24-port Power over Ethernet circuitry embedded into a power supply
• Includes power supply for both switch and the PoE sections
• Based on the PD64008, enables seamless integration of Power over Ethernet
into the switch with minimum time to market and effort
