Chapter 2: Prepare to Power On

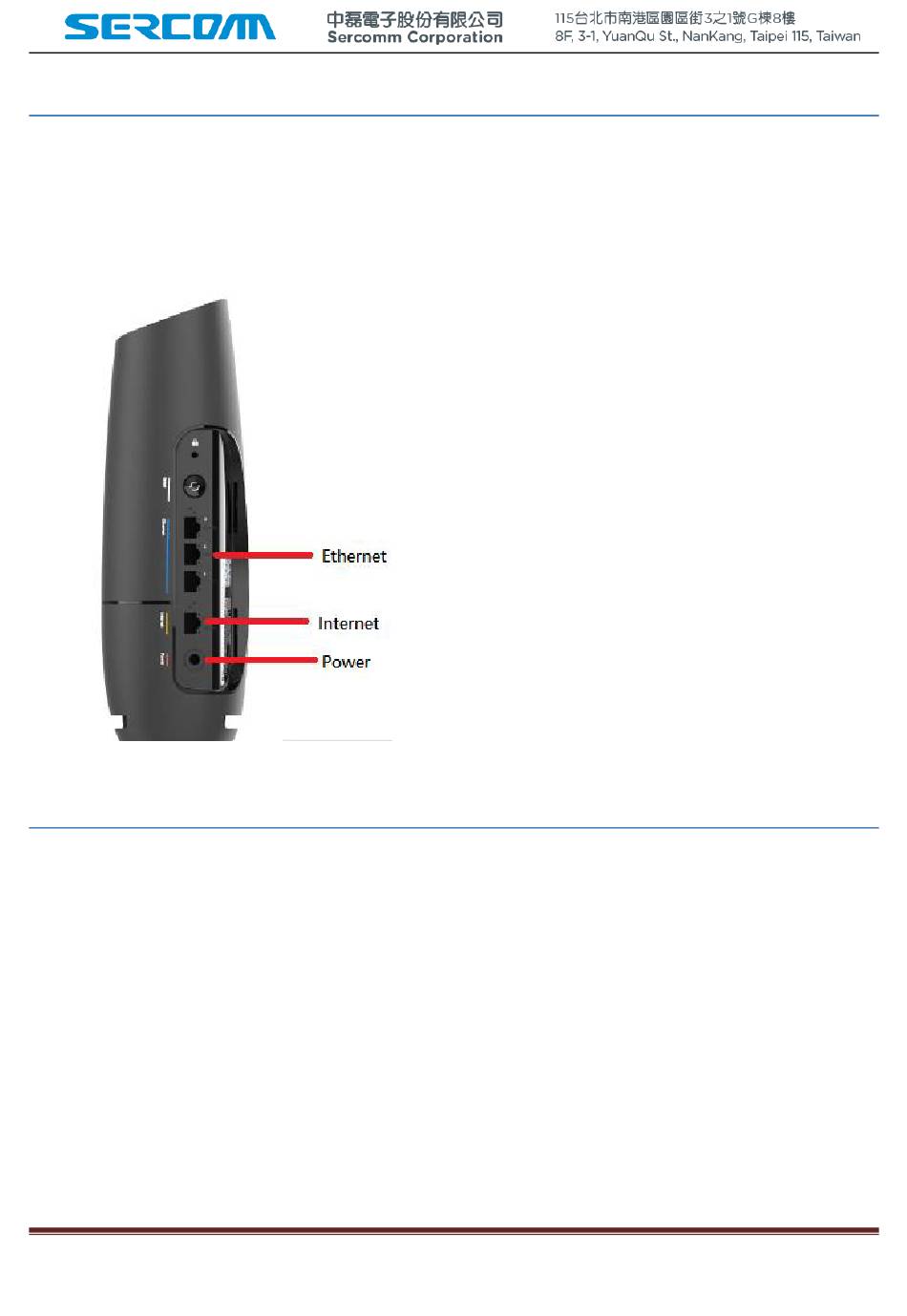

1. Connect the WAN cable to the RJ45 port (Internet)
2. Connect the LAN cable to the RJ45 port (Ethernet)
3. Tight up the SAX1V1R with wall mount bracket (Option)
4. Connect the power adaptor DC plug with SAX1V1R Power connector, connect the power adaptor to AC
Plug

Chapter 3: LED Behavior When Boot Up

Device LED MUST illuminate in 2 seconds or less when it has started receiving power from mains.
Device LED MUST begin "Searching for Internet Connection" immediately after device has finished booting.
LED Color: Blue
LED state: FLASHING
LED will turns to solid blue after Internet is found
