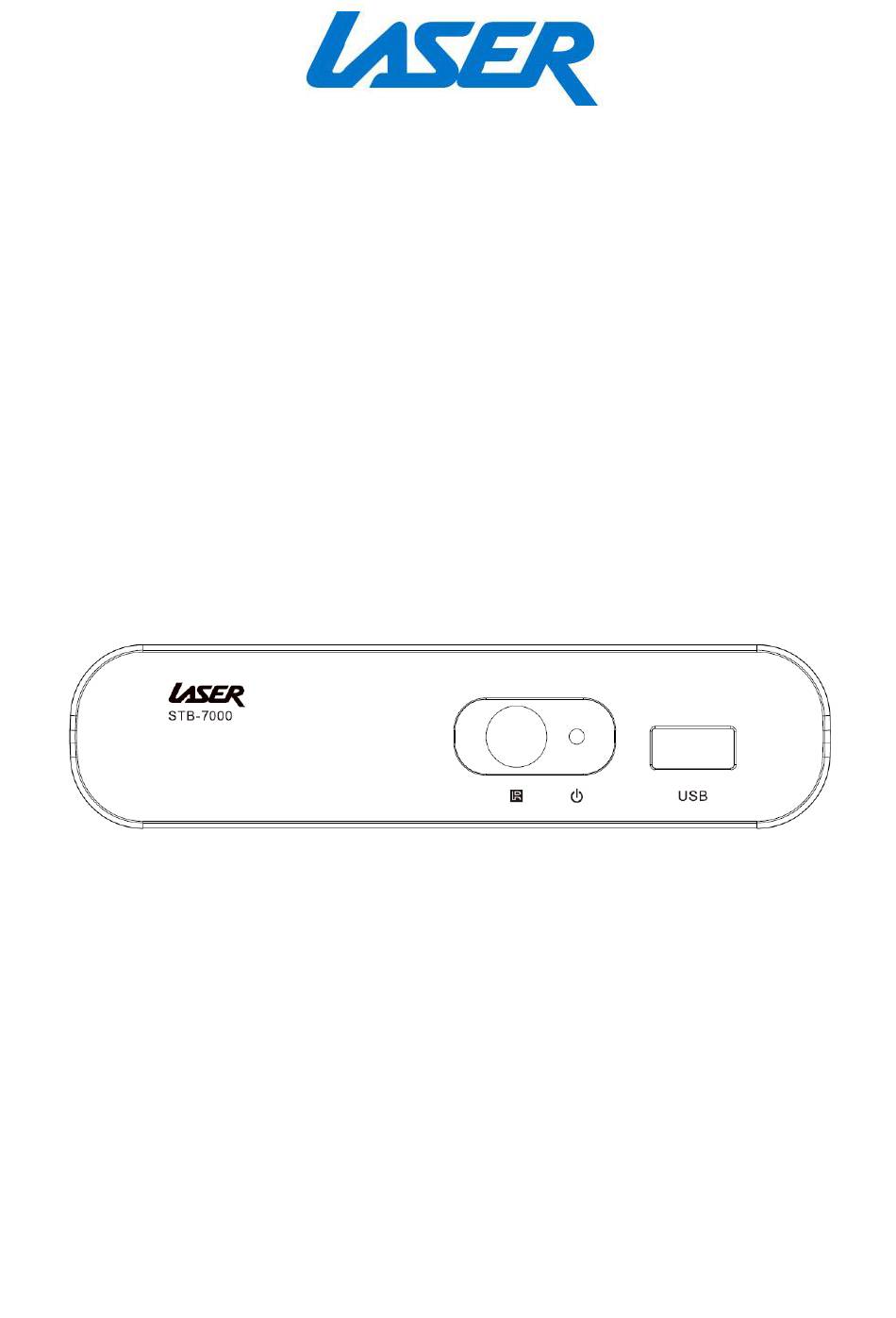

- Page 1 Set Top Box HD Media Player STB-7000 User Manual Please read carefully before use...
-
Page 2: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS ....................1 WHATS IN THE BOX ................................1 INSTALLING THE BATTERIES ............................. 1 SET TOP BOX ..................................2 Front Panel ..................................2 Rear Panel ..................................2 REMOTE CONTROL ................................3 Key Function .................................. 4 CONNECTING TO A TELEVISION ............................ - Page 3 Time Zone..................................12 Sleep .................................... 12 Option ..................................... 12 OSD Language ................................12 Subtitle Language ................................ 12 Audio Language ................................13 Digital Audio ................................13 Audio Description................................ 13 System .................................... 13 Parental Guidance ............................... 13 Set Password ................................13 Restore Factory Defaults ............................. 13 Information .................................
-
Page 4: Important Safety Instructions And Precautions
• Do not mix old and new batteries in the remote. • We reserve the right to change the products and/or documentation without notice. WHATS IN THE BOX • 1 x STB-7000 HD Set Top Box • 1 x Remote control • 1 x AV Cable (Composite RCA) •... -
Page 5: Set Top Box
SET TOP BOX Front Panel Rear Panel Item Description Item Description Antenna In Video Output Antenna Loop Through Audio Left/Right output HDMI Output Audio Left/Right output... -
Page 6: Remote Control
REMOTE CONTROL MUTE FAVOURITES SUBTITLES NUMERIC KEYS MENU OK (BUTTON) PAGE UP/DOWN VOLUME UP/DOWN REWIND / FAST FOREWARD PREVIOUS/NEXT PLAY PAUSE RECORD TIMESHIFT ZOOM ASPECT POWER ON/OFF TELETEXT (WHERE AVAILABLE) INFORMATION RECALL LIST EXIT DIRECTION (FOR CURSER) GOTO CHANNEL UP/DOWN LANGUAGE STOP REPEAT... -
Page 7: Key Function
Key Function Button Action MUTE Mute or restore Audio FAVOURITES Displays Favourite Channel list. SUBTITLES Displays Subtitle language information NUMERIC KEYS Enter music track or chapters in movies (where supported) MENU Displays all the maim menus. OK (BUTTON) Displays Channel listing DVB-T mode or confirm selection Displays EPG (Electronic Program Guide) PAGE UP/DOWN Navigate up and down through menu items... -
Page 8: Connecting To A Television
CONNECTING TO A TELEVISION Power 1. Turn the TV off at the main power outlet. 2. Connect the Antenna cable to the ANT In socket. 3. Choose the best connection method for your Equipment. There are 2 possible connection methods, and the type that you choose may depend on the type of TV that you have. -
Page 9: Video And Audio Connection
Red) to the back of the Set Top Box and the corresponding inputs on the back the audio device. FIRST TIME INSTALLATION Once the STB-7000 has been connected to the power and to the TV and after all audio connections have been made properly, switch on TV. -
Page 11: Program
Program Program Edit To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password for access and it is “000000” (6 zeros) Press the LEFT/RIGH button to Change to the radio channel List. Action Button Description... -
Page 12: Epg & Scheduling
EPG & Scheduling The EPG is an on-screen TV guide that shows scheduled programs up to seven days in advance for every tuned channel. • Press the EPG button on the Remote Control to access the guide. • Use the LEFT and RIGHT buttons to change the channel. •... -
Page 13: Sort
The Status icons: • Green = Booked for Viewing • Orange/RED = Booked for recording • Programs are also marked as booked in the EPG. Action Button Description Press the RED button to Add a booking manually. EDIT GREEN Press the GREEN button to edit the selected booking. DELETE BLUE Delete the selected booking. -
Page 15: Time
Time Set the times zone for your area of residences. Time Offset • AUTO Sets GMT Offset based on Country Region • MANUAL Requires the GMT offset to be set manually and disables the Country Region option Time Zone Set the GMT offset when Time Offset option is set to manual. Use the LEFT and Right buttons to select the Offset for your region. -
Page 16: Audio Language
Note: Only available if chosen Audio language is being transmitted. Digital Audio Set the Digital audio output of the STB-7000. Options are: PCM, RAW or OFF. Please refer to your Audio equipment documentation for the best setting for your equipment. -
Page 17: Information
• Press the OK button to begin and then enter the password. • Press the OK button to confirm or press the EXIT button to return to the previous screen without Restoring Defaults. Information Displays the current information about Model, Hardware and Software reversion numbers. Recall List Turn On/Off the recall list The USB settings menu allows you to change the way the STB displays multimedia from USB... -
Page 18: Movie Configuration
Movie Configuration Use the Right button to enter the Movie configuration menu and set the available options as required. • Small Sets the size of the Subtitles for SUBTITLE SPECIFIC • Normal Movie playback • • Transparent Sets the background colour •... -
Page 19: Mulitmedia Playback
In the PVR Menu, navigate to the folder on the USB device that contains the Recorded files to view. default, the STB-7000 will create a folder called PVRRECORD on the USB device when the first recording starts. All subsequent recordings will be saved to this folder automatically... -
Page 20: General Information
Connecting a USB Device In most cases connecting a USB FLASH drive will be a matter of simply plugging it in to the USB port on the STB-7000. Please remember that HD TV requires a large amount of space to record. -
Page 21: Trouble Shooting
TROUBLE SHOOTING Problem Possible Cause Solution Connect the power and No Picture Power is not connected make sure unit is turned on. Antenna cable is not Check the antenna Screen Shows “No Signal” connected connection to the rear of the STB No or incorrect audio cable Check connections of audio cables connections... -
Page 22: Warranty Against Defects
Product and a copy of your receipt. Laser will cover the cost of the return delivery. Step 4: Wait for us to contact you. Once we have received your defective Laser Product for inspection, we will inform you of our assessment of your claim within 7 days. When we contact you, we will firstly let you know whether you...
