Wall Plate Transmitters
AC-CXWP-USBC-T, AC-CXWP-USBC-100KIT, AC-CXWP-USBC-70KIT
Quick Start Guide
These single gang, HDBaseT wall plate transmitters are a part of
ConferX's line of professional audio video products. Installing these
sleek transmitters is a breeze as they are built to fit in any standard
single gang mug ring, but their sleek design is only the beginning. The
entire ConferX line of products are built to military grade standards to
ensure stable connections for long periods of time.
Simplify installations in schools, offices, meeting rooms and huddle
rooms. Once integrated into your client's system he now has the perfect
solution for sharing information from any computer or source. This
unit is designed to work flawlessly with all PC, VESA and traditional
resolutions 4K 60Hz 4:2:0 8-bit & HDR 4:2:2 12 BIT. With the AC-CXWP-
HDMO-T you get a sleek look your client will like, a stable connection
that lasts and a product that works seamlessly with any source you
throw at it.
This quick start guide will be going through:
•
AC-CXWP-USBC-T, AC-CXWP-USBC-100KIT, AC-CXWP-USBC-70KIT
•
Installation / Recommended Connection order
•
•
•
USBC Wall Plate and kits:
•
AC-CXWP-USBC-T
•
AC-CXWP-USBC-100KIT
•
AC-CXWP-USBC-70KIT

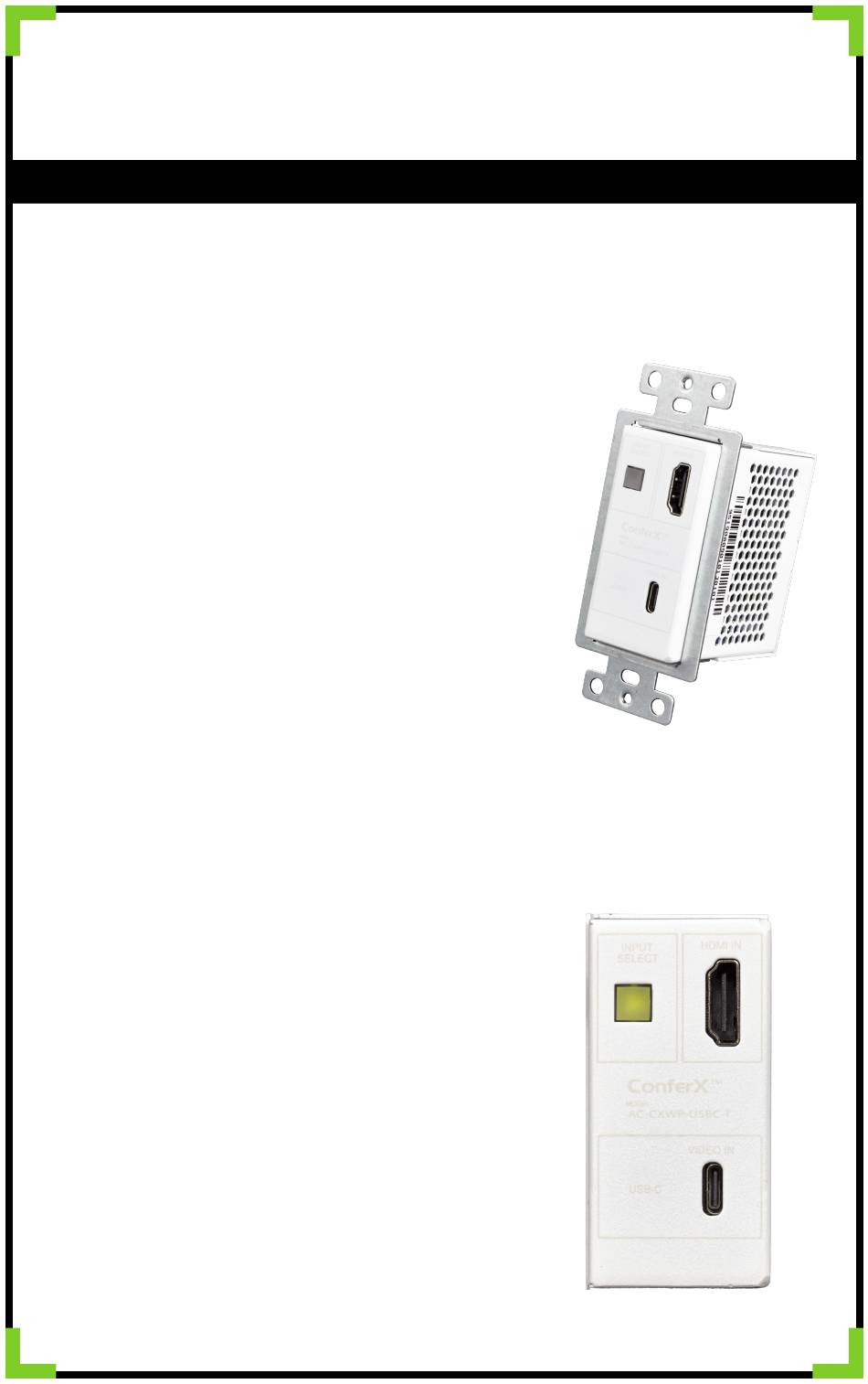

AC-CXWP-USBC-T
Power Light/Switch Indicator - turns on once the wall plate is
powered.
Orange LED indicates HDMI, Green LED indicates USB-C.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AVPro Edge AC-CXWP-USBC-T
Summary of Contents for AVPro Edge AC-CXWP-USBC-T
- Page 1 Wall Plate Transmitters AC-CXWP-USBC-T, AC-CXWP-USBC-100KIT, AC-CXWP-USBC-70KIT Quick Start Guide These single gang, HDBaseT wall plate transmitters are a part of ConferX’s line of professional audio video products. Installing these sleek transmitters is a breeze as they are built to fit in any standard single gang mug ring, but their sleek design is only the beginning.
- Page 2 AC-CXWP-USBC-100KIT When paired with the AC-EX100-UHD-R3 the wall plates are able to transmit 4K at 70 meters or 1080P at 100 meters. EDID management is available on this receiver. AC-CXWP-USBC-70KIT When paired with the AC-EX70-UHD-R the wall plate is able to transmit 4K at 40 meters 1080P at 70 meters.
- Page 3 Input Switching: Each wall plate utilizes auto sensing technology. This means once a source is connected the wall plate will recognize the connection and automatically send the signal to the display. For the VGA, MDP & USB-C wall plate: if you already have a source plugged into the wall plate and you plug in another source the wall plate will automatically switch to the source that was just put in.
- Page 4 When using projectors RGB edid setting is recommended. EDID can be managed using all wall-plate transmitters (VGA, HDMO, MDP, USB-C) and the EX100- UHD-R3 receiver. Copying EDID From Output: With 70-Kits: • Connect category to TX/RX, HDMI to Display, and both RX and Display are powered •...
