SONOFF TECHNOLOGIES CO., LTD.
Operating Instruction
1. Power off
To avoid electric shocks, please consult the dealer or a qualified professional for
help when installing and repairing! Please do not touch the switch during use.
2. Wiring instruction

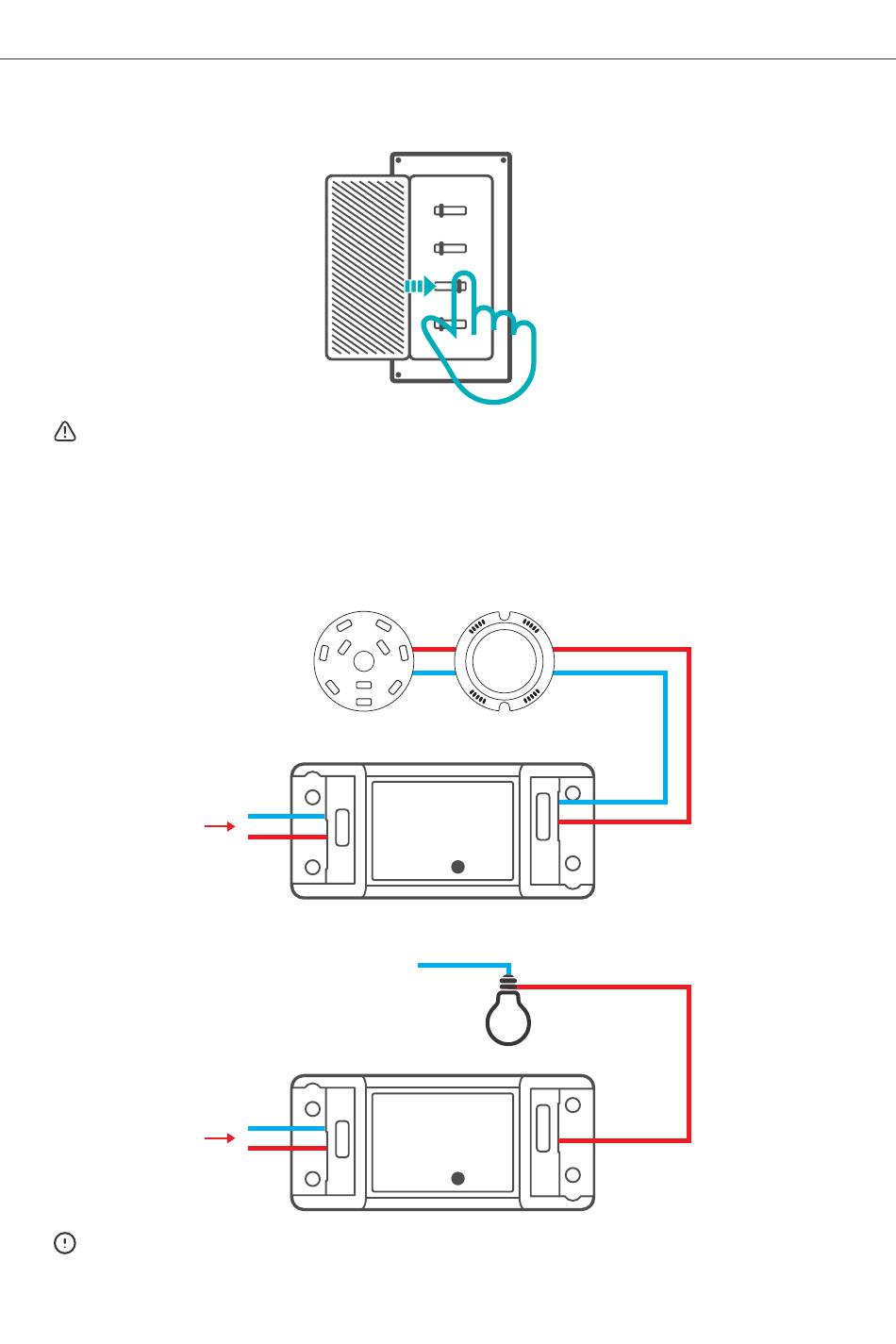

Ceiling lamp wiring instruction：
100-240V AC
One live wire wiring instruction:
100-240V AC
Make sure the neutral wire and live wire connection is correct.
N In
L In
N In
L In
ON
OFF
ON
OFF
ON
OFF
ON
OFF
LED
Driver
N
6
English
N Out
L Out
L Out
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sonoff BASICR2
Summary of Contents for Sonoff BASICR2
- Page 1 English SONOFF TECHNOLOGIES CO., LTD. Operating Instruction 1. Power off To avoid electric shocks, please consult the dealer or a qualified professional for help when installing and repairing! Please do not touch the switch during use. 2. Wiring instruction Ceiling lamp wiring instruction：...
- Page 2 English SONOFF TECHNOLOGIES CO., LTD. 3. Download APP eWeLink eWeLink Android™ & iOS 4. Power on N Out N In L Out L In After powering on, the device will enter the quick pairing mode (Touch) during the first use. The Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.

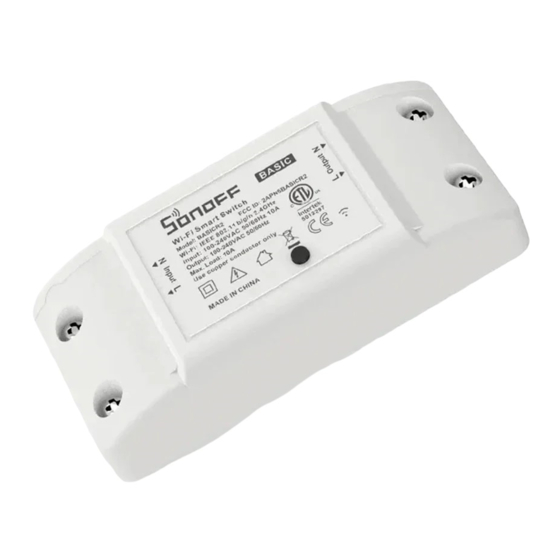

- Page 3 IEEE 802.11 b/g/n 2.4GHz Wi-Fi 433,92MHz Material PC V0 Dimension 88x39x24mm BASICR2 does not support the remote controller with 433.92MHz. Product Introduction Wire Fastener Cover Pairing button Wi-Fi LED indicator(Green) Manual switch On/off LED indicator(Red) The device weight is less than 1 kg.
- Page 4 English SONOFF TECHNOLOGIES CO., LTD. Wi-Fi LED indicator status instruction Wi-Fi LED indicator status Status instruction Flashes (one long and two short) Quick Pairing Mode Keeps on Device is connected successfully Flashes quickly Compatible Pairing Mode Flashes quickly once Unable to discover the router...
- Page 5 English SONOFF TECHNOLOGIES CO., LTD. Switch Network If you need to change the network, long press the pairing button for 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release, then the device enters quick pairing mode and you can pair again.
