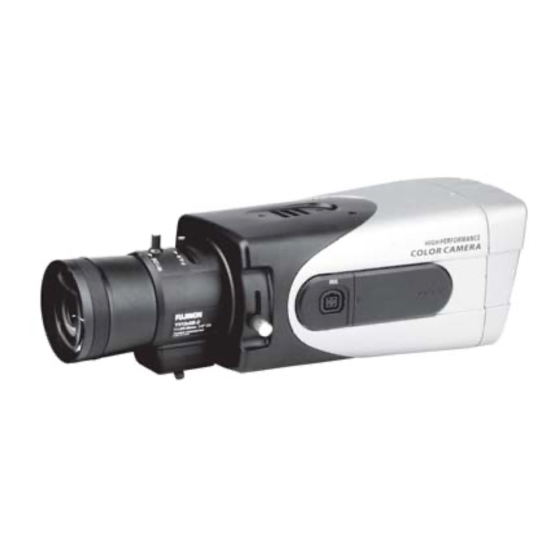

- Page 1 Super Wide Dynamic High Performance Box Camera sWDR Box camera (SONY) · DC12V · DC12V / AC24V (Dual Power)
-
Page 2: Table Of Contents
Dear Customers! Table of contents 1. Precautions ------------------------------------------------------------- 4 2. Limitation of liability --------------------------------------------------- 5 3. Disclaimer of warranty ----------------------------------------------- 5 CAUTION RISK OF ELECTRIC 4. Package ----------------------------------------------------------------- 6 SHOCK DO NOT OPEN 5. Name and function of each part -------------------------------- 7~8 CAUTION 5-1. -
Page 3: Precautions
1. Precautions 2. Limitation of liability 3. Disclaimer of warranty... -
Page 4: Package
5. Name and function of each part 5-1. Front Super Wide Dynamic High Performance Box Camera sWDR Box camera (SONY) · DC12V · DC12V / AC24V (Dual Power) Super Wide Dynamic High Instruction manual C Mount Adaptor Performance Box Camera 1EA 5-2. Right side... -
Page 5: Rear Side
5. Name and function of each part 6. Installation 6-1. Lens 5-4. Rear side Caution RS-485 6-2. When using an Auto Iris Lens (DC-drive or Video-drive) RS-485 Lens Pin No. VIDEO No.1 Pin Damping - Red (Power) No.2 Pin Damping + No.3 Pin Drive + White (Video) -
Page 6: When Using A Cs-Mount Lens
6. Installation 6. Installation 6-4. When using a CS-mount Lens 6-6. Impedance alliance in the system connection. RS-485 6-7. Power Caution RS-485 6-5.Video Monitor RS-485... -
Page 7: State-Of-The-Art Image Enhance Technologies
7. State-of-the-art image enhance technologies 7. State-of-the-art image enhance technologies 7-5. Digital Slow Shutter (DSS) 7-1. True Day & Night image conversion for 24 hours clear view True Day/Night switching True Color with a Blue filter/Precise focus with IR filter Caution 7-6. -
Page 8: Other Features
7. State-of-the-art image enhance technologies 9. How to operate key functions 7-9. New Super Wide Dynamic (sWDR) 9-1. MENU TREE 8. Other features 8-1. Camera ID setting 8-2. Digital Zoom ( 1.5x, 2x, 3x) 8-3. Privacy zone masking 8-4. Dual switching power (w/Auto Line-lock) -Dual Power version... -
Page 9: Main Menu
9. How to operate key functions 9. How to operate key functions Setting up the Menu with OSD control key Useful function 9-3. SUB MENU 9-2. MAIN MENU (1) SYSTEM MENU 1.1 Press MENU button MAIN MENU 1-1. 485 TERM (P-D) : ON / OFF 1. - Page 10 9. How to operate key functions 9. How to operate key functions * 485 TERM (P-D) : OFF / ON SYSTEM MENU 1-5. FILTER DLY : 1 SEC ~ 15 SEC 1. 485TERM (P-D) : OFF 2. BAUD RATE : 9600 Filter Change Delay 3.
- Page 11 9. How to operate key functions 9. How to operate key functions (2) AWB MENU 3-3. FLICKERLESS : OFF / Shutter / Gain AWB MENU : Auto White Balance AWB MENU 1. WB MODE : USER 2. RED CONT. 3. BLUE CONT. 4.
- Page 12 9. How to operate key functions 9. How to operate key functions (5) PRIVACY MENU (4) WDR MENU (Wide Dynamic Range) PRIVACY MENU WDR MENU 1. AREA NUM 5-1. AREA NUM : 1 ~ 4 4-1. WDR MODE: OFF / WDR1 / WDR2 1.
- Page 13 9. How to operate key functions 9. How to operate key functions 5-6. SAVE / RETURN ID: 001 MOVE: U/D/L/R EXIT: MENU KEY NOTE : To setup Multiple PRIVACY zones PRIVACY MENU PRIVACY MENU 7-3. CAMTITLE : OFF / ON 1.
- Page 14 9. How to operate key functions 9. How to operate key functions (7) EFFECT MENU EFFECT MENU 7-4. DIGITAL ZOOM : OFF / X1.5 / X2 / X3 1. SHARPNESS EFFECT MENU 7-1. SHARPNESS : 00 ~ 15 2. COLOR GAIN : (ON) 1.
- Page 15 9. How to operate key functions 9. How to operate key functions (8) MOTION MENU 8-7. MD RESET : OFF / LOAD MOTION MENU MOTION MENU 8-1. MD NUM : 1~4 4. MD DISPLAY : ON 1. MD NUM 5. MD SIZE : PUSH MENU : OFF 2.
-
Page 16: Troubleshooting
9. How to operate key functions 10. Troubleshooting 9-5. SAVE / RETURN FACE MENU 1. FD DEFINE : OFF 2. FD LEVEL : MID Problems Troubleshooting 3. FD DISPLAY : ON 4. FD RESET : OFF 5. SAVE/RETURN Nothing appears on the Please check the power connection. -
Page 17: Specification
11. Specification MEMO Category Specification Description Power DC12V DC12V/AC24V Imager Image sensor 1/3" Sony Double Scan CCD Effective Pixels Effective Pixels 976(H) x 494(V) - NTSC, 976(H) x 582(V) - PAL H.Resolution 650TV Lines (Day) / over 700TV Lines (Night) H.Resolution...
