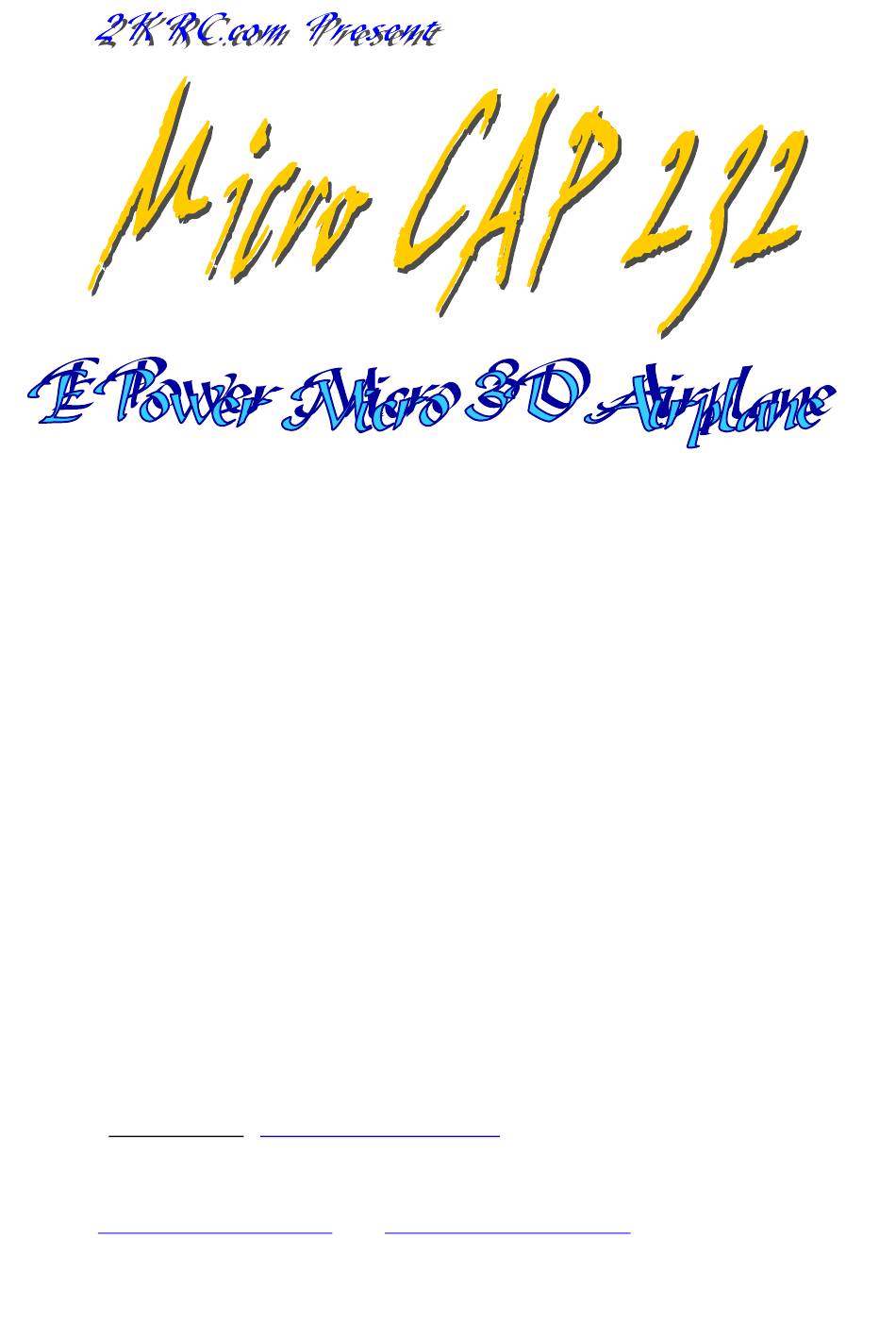

VMI Micro CAP 232 Assembly Instructions Manual

E power micro 3d airplane
Hide thumbs

Advertisement

Quick Links

Download this manual
For Intermediate & Advanced Fliers.
SAFETY PRECAUTIONS
This radio control model is not a toy!
Fist-time builders should seek advice from people having building
Experience in order to assemble the model correctly and to produce
Its performance to full extent.
Assemble this kit only in places out of children's reach!
Take enough safety precautions prior to operating this model.
You are responsible for this model's assembly and safe operation!
Always keep this instruction manual ready at hand for quick
Reference, even after completing the assembly.
Notice:
By the time the Yak arrives in your shop, it will have endured several climate changes.
As a result you may find some wrinkles in the covering and wing or Fus. Part maybe
have some twisted. This is not a manufacturing defect. Please take a few moments
with your iron or heat gun to remove any wrinkles and correct all twisted parts. Iron
over all the edges to ensure they are sealed.
This Products Produce by P & D Products Company
4/F., 162 Temple St., Kln. Hong Kong Fax: 852-8220 6288
E-mail: info@2krc.com /
AUTHORIZED DEALER: Versailles Modeles Import
8,rue du vieux Versailles 78000 Versailles
E-mail:
info@versaillesmodes.com
szatpro@public.szptt.net.cn
web:
www.versaillesmodeles.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Micro CAP 232 and is the answer not in the manual?

Questions and answers

Summary of Contents for VMI Micro CAP 232

  • Page 1 For Intermediate & Advanced Fliers. SAFETY PRECAUTIONS This radio control model is not a toy! Fist-time builders should seek advice from people having building Experience in order to assemble the model correctly and to produce Its performance to full extent. Assemble this kit only in places out of children’s reach! Take enough safety precautions prior to operating this model.
  • Page 2 Install Gold plug to connected your ESC. And motor. Notice: before you install the ESC. You need to solid ESC. And motor connector, and then connect them together. If you find the motor are revised run when you test run, you can correct by revered any two connector.
  • Page 3 Find the Right thrust spacer. Put the gearbox set on the Fus. And make a mark as the show. Remover covering as the show.
  • Page 4 Glue the right thrust spacer on Fus. As show. Notice. Thicker end was toward to tail. Install the gearbox on motor mount as show. You will find some right thrust will show. The actually need was after you test flying than adjust it again by a bit light sanding the right thrust spacer.
  • Page 5 Use hobby knife make two slots than use the wire bent tight up the ESC. or use double foam tape fix the ESC. Attached the magic tape as show. Install it on fus. As show. Notice: if you feel the CG. Point not site your flying style, you can install the battery...
  • Page 6 Tight up the battery as show. Heat the knife. Cut the a small hole with heat knife tip on the cover for the push rod holder.
  • Page 7 Find the push rod holder four piece for each side. Install the four push rod holder four pieces for each side. Install the Rudder and Elevator push rod in each side. Notice: the longer one pushrod is Rudder push rod on left hand side. Install the two hinges inside the Rudder hinges slot.
  • Page 8 Install the Rudder on the Fus. As show. Cut out the covering and glue the Rudder control horn left hand side. Then install the push rod Z end with Rudder control horn as show. Bend the push rod end to be a “L” . Then inset to the Rudder control horn as show.
  • Page 9 Find the one Elevator control horn and two Stabilizer mount plat. Cut out covering and install the Elevator control horn at right hand side. Then glue it together with GA. Cut out covering and install two Stabilizer mount plat. Then glue it together with Thick GA.
  • Page 10 Install the Stabilizer inside the Fus. Slot and fix it with two TP. Screw (2 X 10mm). Bend the end of the Elevator push rod and inset it with the Elevator control horn as show. Notice: before you bend the push rod end you must made sure other end of push rod was in right place of the servo center.
  • Page 11 Install the main wheel on the landing gear as show. Install the wheel lock and use Thin CA. to glue it with very carefully. And made sure wheel was free after you fix the wheel lock. Install the landing gear on the fus. As show.
  • Page 12 Use the wire bond to tight up landing gear. Notice: if you want put the fus. Inside the carry box again after flying. You may need to remove the landing after you flying. Find the two Aileron control horn and install them at the LE.
  • Page 13 Install the Aileron push rod Z end to the Aileron control horn. Then bend other end for the servo horn. Install the push rod to servo horn and fix it with push rod keeper. Glue it with CA. with carefully. Then check the push rod was free or not.
  • Page 14 Install the receiver and connect of servo and check them all in correct channel. Then use hobby knife to open a small hole for the Antenna out and the BEC. Wire inside to wing. Install the Rudder and Elevator servo as show. Remove the Aileron push rod first then install the wing from one side to the FUS.
  • Page 15 Find the Four 2 X 13mm TP. Screw and lock washer. Glue four piece plastics washer for wing fix screw. Fix the wing on to the Fus. With four TP. Screw (2 X 10mm).
  • Page 16 Install the Rudder and Elevator push rod same the Aileron push rod. Notice: Before you install the servo horn , you need to turn on your radio to check the servo was in neutral point. Remove one of Aileron push rod and servo control horn before you install the wing panel or remove the wing panel from Fus.
  • Page 17 After you check and adjust all the radio control was correct. Then use covering cover the hole that you open for receiver install. Find two decal sheet and one tans film. Remove the tans film.
  • Page 18 Apply the tans film to decal sheet and remove the decal from the base sheet. Then remove the tans film carefully from the wing panel. The finished wing are show.
  • Page 19 If you choice ATPro OX.2209-28 Out runner motor. You need four M3 X 4mm screw. MP15 or MP12 Propeller adaptor. MP12 Propeller adaptor. MP15 Propeller adaptor.
  • Page 20 The finished wing are show. Drill two 1.5mm hole as show. Fix the motor mount with two 2.5mmTP. screw.
  • Page 21 The finished wing are show.

  • Page 22: Specification

    SPECIFICATION CODE A106 ITEM Mico CAP232 E WING SPAN 785 mm (30.9") ENGINES CLASS SR420L./OX2209 Motor WING AERA 20.2dm RTF. WEIGHT 290-320g TOTAL LENGTH 813mm WING LOADING CENTER OF GRAVITY 90-110mm from LE WING INCIDENCE 0 ° WING DIHEDRAL 0° STAB.
  • Page 23 A104 PART LIST PART NO Micro Katana SEP. QUT'Y REMARK A106-001 FUSELAGE A106-002 WING 1SET A106-003 STABILIZER 1SET A106-004 RUDDER A106-005 DECAL SET A106-006 RUDDER PUSH ROD Φ1.2X520 1PCS A106-007 ELEVATOR RUSH ROD Φ1.2X500 1PCS A106-008 AILERON PUSH ROD Φ1.2X80 2PCS A106-009 TAIL GEAR...
  • Page 24 MP-14 OX2209. MOTOR MOUNT OPTION OX2209-28 OUT RUNNER MOTOR OPTION...
