Summary of Contents for Aquila TRIVENTEK BL25 MINI

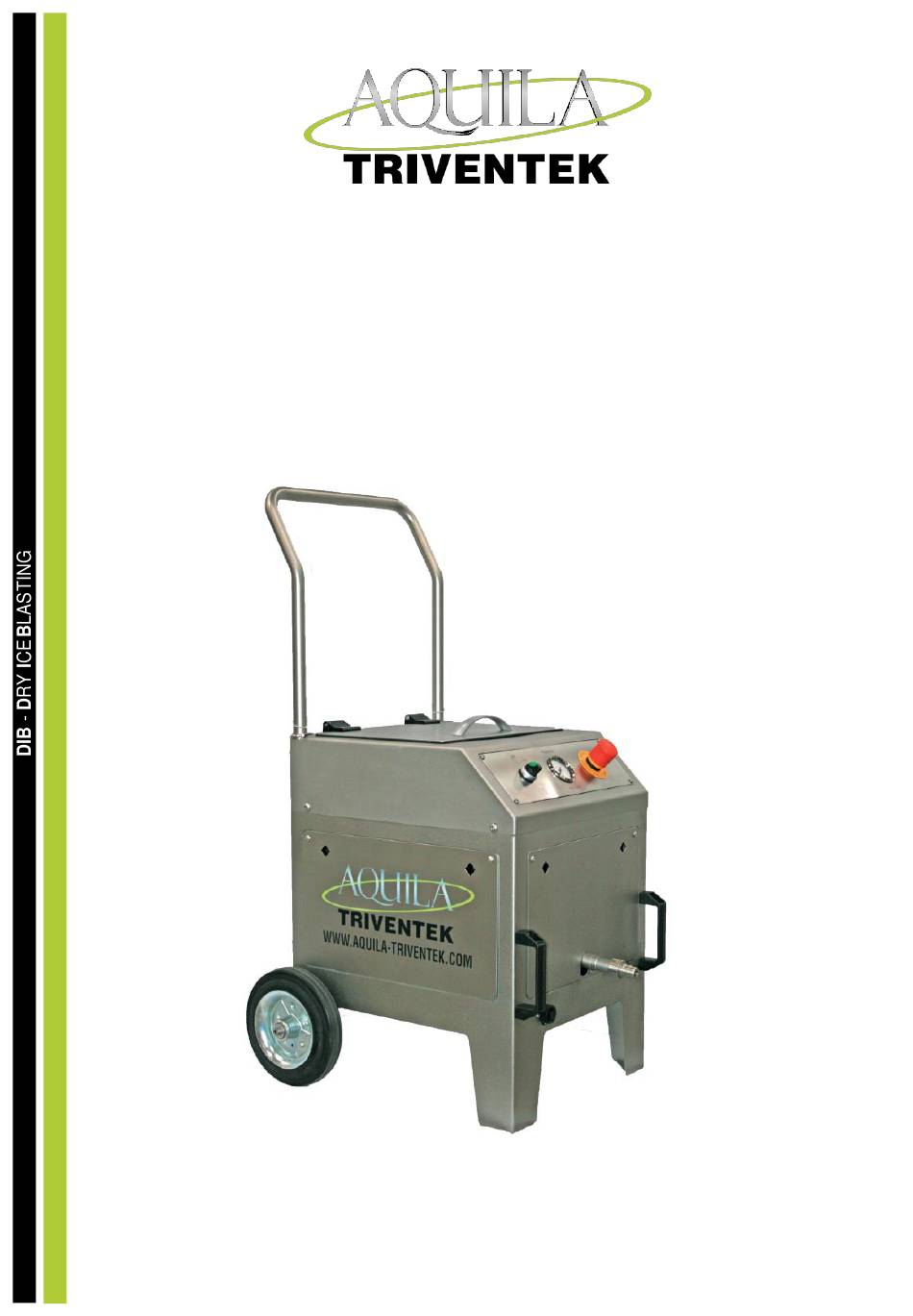

- Page 1 ORIGINAL Instruction manual for BL25 MINI Dry Ice Blaster By Aquila Triventek Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
-
Page 2: Table Of Contents
Electrical chart for BL25 ....................... 21 Safety Parts Identification ..................... 22 EC Declaration of Conformity ....................26 Warranty ..........................27 Delivery report ........................28 Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... -
Page 3: Introduction
(e.g. containing minimum water/moisture or particulates). Triventek offers a range of pelletizer and gas recovery equipment to assist in ensuring the supply of high quality, dry ice. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... -
Page 4: Safety
Protect eyes, face and skin from contact with solid product. Protect skin, especially hands, from cold by wearing insulated gloves. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... - Page 5 Ensure all national / local regulations are observed. The European Industrial Gas Association (EIGA), see www.eiga.org/, provides useful background material and guides to good practice. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
- Page 6 Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
- Page 7 / air stream. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
-
Page 8: Assembly Of The Equipment
This is easily done with the snap-fit safety connection by pulling back the collar as the hose is slid onto the machine. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... - Page 9 It is recommended that a test area/object be selected to establish which the appropriate nozzle for any cleaning job. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
-
Page 10: Quality
Keep the hopper lid closed as much as possible to avoid dirt falling into the hopper and to minimize moisture ingress. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... -
Page 11: Operating The Equipment
By turning clockwise (right) the stop button is deactivated, and normal operation will resume. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... - Page 12 Do not blast for any length of time (after initial system purging) without dry ice, since the rotor will run extremely hot and may be damaged. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
- Page 13 If dry ice pellets are not returned to storage, care should be taken to ensure their safe disposal. Avoid leaving pellets exposed where untrained persons may be able to touch them, or where sublimation could cause a hazardous atmosphere. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
-
Page 14: Maintenance
To access the airlock for maintenance, unl o ck the cabi n et l o ck wi t h the key. The blaster can be operated from the right side, left side, and front. Without the sides and front, you can have full access to internal mechanics. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... - Page 15 In this event, turn the control pin anti-clockwise (left) to increase the opening pressure from the pneumatic control system. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
- Page 16 On reassembly of the air lock, take care to ensure that the feeding slot piece is held in position and that the O-ring is not damaged or displaced. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
-
Page 17: Cleaning The Equipment
If condensation is suspected, then place the equipment in a warm room (15 °C to 22 °C) (59 °F to 72 °F) for 1 hour before use. Recommended spare parts list Spare part no. Description 04102500 Rotor 04102511 Air Plate 33275206 O-ring Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... -
Page 18: Troubleshooting
If problem continues then replace causing the rotor plate to jam. spacers with larger spacers. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... - Page 19 Otherwise you could damage the rotating disc. Such damage is not covered by the manufacturer’s guarantee. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
-
Page 20: Technical Data
Min: 2bar Max: 10bar 0,6-3 m3/min Air flow range Dry ice consumption 40 Kg/h Noise 86-120dB (at 6 bar pressure) Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... -
Page 21: Electrical Chart For Bl25
Electrical chart for BL25 Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... -
Page 24: Safety Parts Identification
Safety Parts Identification Safety Valve Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... - Page 25 Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
- Page 26 Emergency stop buttom Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
- Page 27 Blast hose Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
-
Page 28: Ec Declaration Of Conformity
– Risk assessment and risk reduction. Aquila Triventek A/S Responsible Mr. Torben Andreasen Place Date Signature 19/01-2022 A quila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... -
Page 29: Warranty
Equipment, which has been repaired by unauthorized persons without our written consent, is not covered by this guarantee. Warranty claims from third parties are not covered by this guarantee. Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com... -
Page 30: Delivery Report
Warranty of the above equipment will not be effective before this form has been completed, properly signed and this original returned within 20 days of delivery to Aquila Triventek A/S Industrivej 9 DK-5580 Nørre Aaby Denmark Comments: Aquila Triventek A/S · Industrivej 9 · DK-5580 Nørre Aaby · Tel. +45 70 22 12 92 · aquila@triventek.com · www.aquila-triventek.com...
