Summary of Contents for Atlas Copco IRTT-B 1A-I06

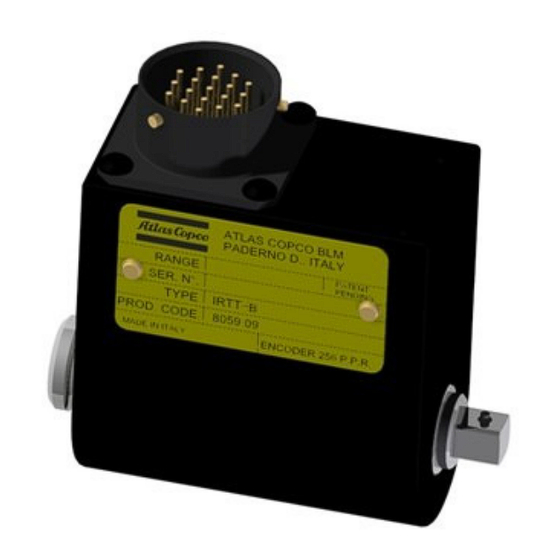

- Page 1 User guide Analog Rotary Transducer (IRTT-B) 9836 4436 01 2010-01...
-
Page 3: Safety Instructions
Ovidio Scarpulla Product Quality Manager Individual machinery and safety components: We Atlas Copco BLM – Paderno Dugnano - ITALY declare under our sole responsibility that the product to which this declaration relates, is in conformity with the requirements of the Council Directive of 22 June 1998 on the approximation of the laws of the Member States relating to machinery (98/37/EEC). -
Page 4: Connector Pinout
Capacity (Nm) Drive Ordering No. Operating temperature: 5 to 40°C • 1A-I06 ¼” hex 8059 0943 96 The transducer comes with Atlas Copco BLM calibration 2A-I06 ¼” hex 8059 0943 01 certificate. 5A-I06 ¼” hex 8059 0943 06 The calibration data is marked on the transducer label (when 5A-06 ¼”... - Page 5 IRTT-B User Guide Dimensions: Hexagon Drive Square Drive Weight (grams) Model Drive with angle without angle 1A-I06 115,8 71,9 39,2 20,6 25,5 15,5 2A-I06 115,8 71,9 39,2 20,6 25,5 15,5 5A-I06 115,8 71,9 39,2 20,6 25,5 15,5 5A-06 square 71,5 71,9 15,5 20A-I06...
-
Page 6: Scheduled Maintenance
IRTT-B User Guide SCHEDULED MAINTENANCE There are no critical maintenance activities required by the transducer. Annual calibration is still required. TROUBLESHOOTING GUIDE Here is a quick troubleshooting guide for the IRTT-B Transducer. If a problem appears, before taking any action (replacing parts or contacting the customer support) be sure that the transducer is being used in the proper way and connected to a proper and working measurement unit;... - Page 8 9836 4436 01 2010-01 www.atlascopco.com...
