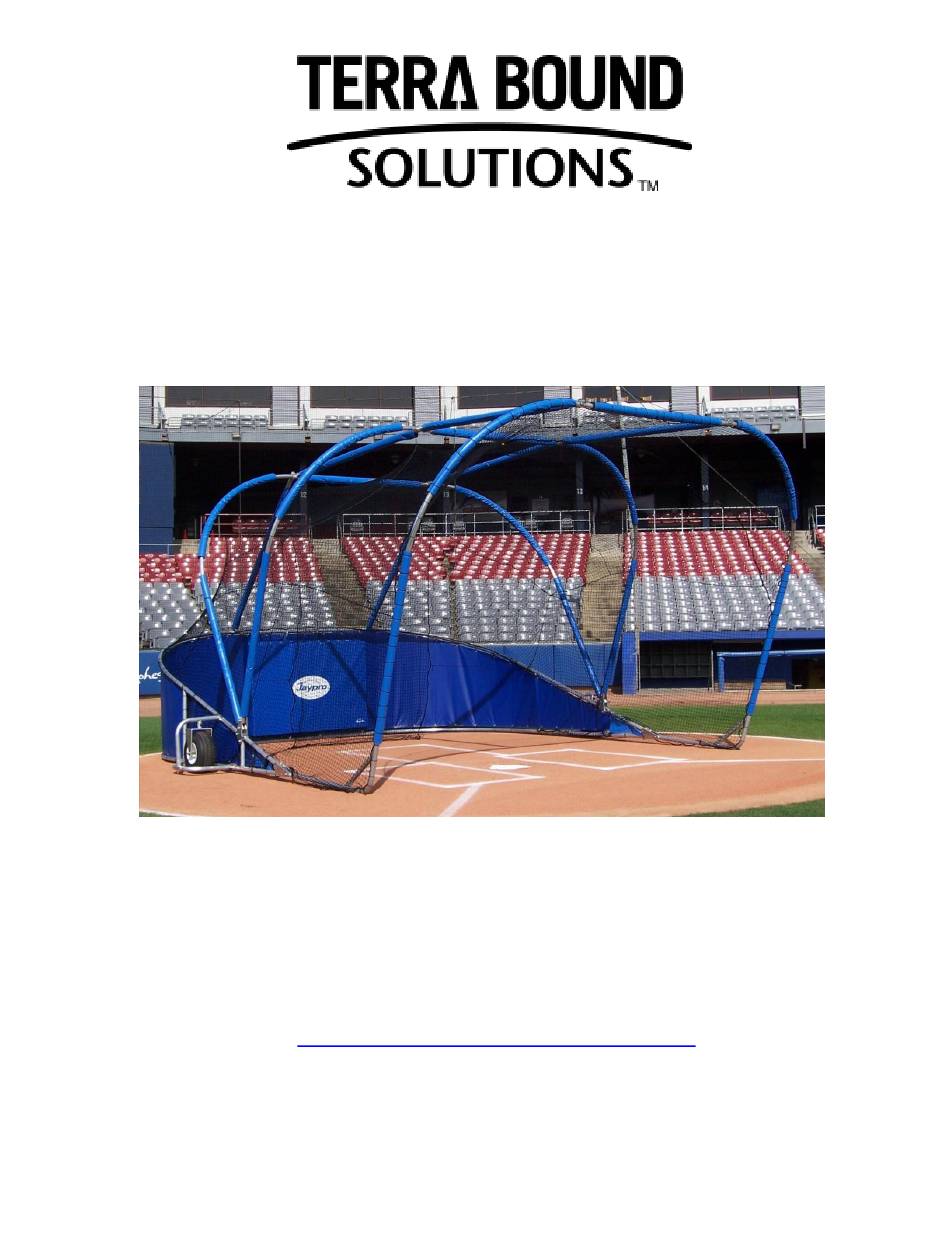

--- BIG LEAGUE PROFESSTIONAL BATTING CAGE ---
BGLC-7500
1-877-857-2915
www.terraboundsolutions.com
Rev-B
Page 1 of 22

Advertisement

loading
Need help?

Need help?

Do you have a question about the BGLC-7500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Terra Bound Solutions BGLC-7500

  • Page 1 --- BIG LEAGUE PROFESSTIONAL BATTING CAGE --- BGLC-7500 1-877-857-2915 www.terraboundsolutions.com Rev-B Page 1 of 22...
  • Page 2 IMPORTANT NOTICE: 1. BEFORE EACH USE CHECK EQUIPMENT FOR PROPER CONNECTING HARDWARE AND STRUCTURAL INTEGRITY. REPLACE DAMAGED OR MISSING HARDWARE IMMEDIATELY. 2. SECURELY TIGHTEN ALL NUTS AND BOLTS. 3. NEVER ALLOW ANYONE TO RIDE ON BATTING CAGE DURING TRANSPORT. 4. USE OF THIS EQUIPMENT OTHER THAN INTENDED, MAY BE HAZARDOUS. 5.
  • Page 3 TERRABOUND SOLUTIONS THE BIG LEAGUE BATTING CAGE, BGLC-7500 LIST OF MATERIALS (MAIN FRAME) Rev-B Page 3 of 22...
  • Page 4  Unpack all parts and check against parts list to ensure that all have been included.  Inspect all parts for damage. Report any damages to the trucking company.  Select a large clear flat area to assemble the cage. BGLC-7500 QUICK REFERENCE (SEE EXPLODED VIEWS OF DIFFERENT SECTIONS FOR HARDWARE CALLOUTS) Rev-B...
  • Page 5 Side wheel frames: Note head of hex bolts to face the inside of cage. Rev-B Page 5 of 22...
  • Page 6 Assemble lower frame: (See hex blot note) Note: All heads of the screws inside the cage to prevent the netting from snagging on any exposed threads. Rev-B Page 6 of 22...
  • Page 7 Build and attach top frames sections: (One at a time) 1. Note that one end of pipe is for ½” hardware for item # 3 & 8. Note: All heads of the screws inside the cage to prevent the netting from snagging on any exposed threads. Attach side hinge support frame: Rev-B Page 7 of 22...
  • Page 8 Note: All heads of the screws inside the cage to prevent the netting from snagging on any exposed threads. Rev-B Page 8 of 22...
  • Page 9 Attach rear wheel support frame: Rev-B Page 9 of 22...
  • Page 10 Rev-B Page 10 of 22...
  • Page 11 Build rear wheel frame assembly with handle: Rev-B Page 11 of 22...
  • Page 12 Install rear wheel: Install rear wheel assembly: 1) Apply a light amount of lithium grease to the length of the rear wheel stem. 2) Lift the rear frame and slide the rear wheel stem into the receiver. Rev-B Page 12 of 22...
  • Page 13 Coaches stand: Rev-B Page 13 of 22...
  • Page 14 Rev-B Page 14 of 22...
  • Page 15 Attach the loop end of the lanyard to the eyebolt and raise the coach stand. The eye end of the lanyard will be attacked to the vertical frame member with a self-tapping screw. Determine its location and drill a 9/64” pilot hole thru on wall of the pipe. Insert the screw into the eye of the lanyard and screw it into the frame.
  • Page 16 After the frame is fully assembled check all hardware to make sure it is tightened and all joints are secured. Raise the upper frame arches into position, using the strut pipes, and check for alignment. (See setup instructions)  Before installing the net and padding wipe frame clean with a clean rag or scrubbing pad. LIST OF MATERIALS (Net and Padding) ITEM PART #...
  • Page 17 Attach net: Description: The outer perimeter of the net is to be fully laced to both the front arch and the top member of the lower frame. (See detail showing how to lace if unfamiliar with lacing). The net will be suspended off the center two arches, by about 6”.
  • Page 18 8. After the net is fully laced to the front arch – from the rear of the cage, carefully raise the front arch section using two struts. 9. Locate the next reinforced section of the net (about 8’ back from the front edge) and loosely tie it in place to the 2 arch using the temporary positioning cords.
  • Page 19 Attach skirt: 1. Fully raise the upper portion of the cage. 2. Attach the vinyl skirt to the top and bottom pipes of the lower frame, using the zip ties. 3. For best results, start at the center and work out to the front corners. Attach thud pad: 1.
  • Page 20 SET-UP AND TRANSPORT Raising and Lowering the Upper Cage: NOTE: At least two people are required for the following steps. Caution: Keep body parts clear of pinch points between pipes and fittings. 1. Two struts are required to raise and support each arch. The raising of each arch must be done in tandem, with equal pressure and extension.
  • Page 21 TRANSPORTING CAGE: Cage can be transported by going forward or backward. Transporting the cage should be done with 2 or 3 people. Note: Cage should only be transported in the fully folded position. Never move cage when fully raised. 1. To transport the cage fully lower the upper frame. Gather the net and baffle and secure it to the rear frame using the adjustable 6 foot strap (RP5066).
  • Page 22: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS Conduct a thorough inspection of the cage annually looking for loose bolts and nuts. Due to normal vibration during play, fasteners may work themselves loose. Tighten adequately on a regular basis to prevent injury. Apply a small amount of lithium grease to any moving parts, especially axles and wheels. If wheels have zirk fittings, you may inject grease into wheel bearings using a commercially available grease gun.
