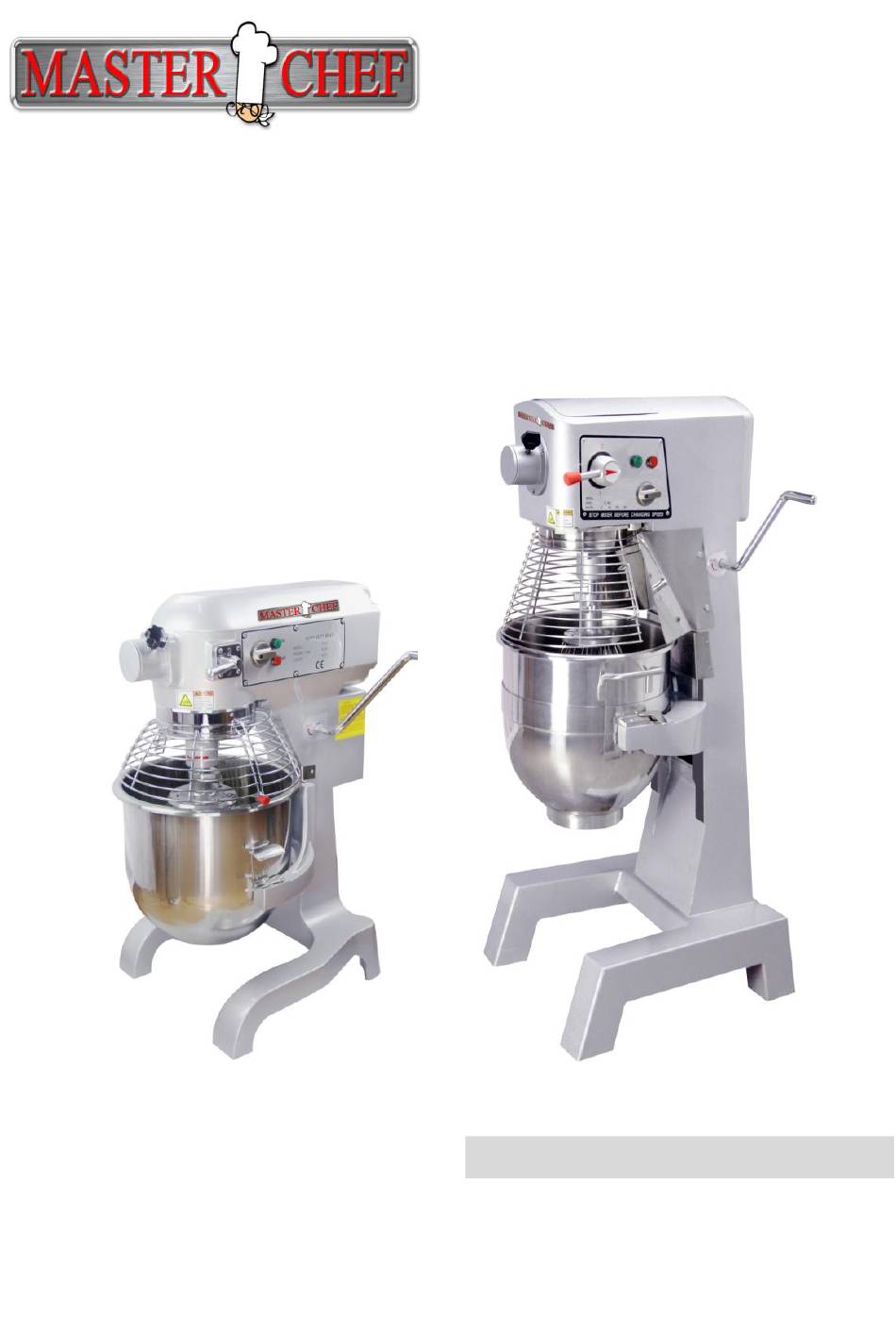

- Page 1 Planetary Mixer Instruction manual 18mcpm20qlh, 18mcpm30qlh Distributed by masterchefpr.com 787788-2264 787 788-2269 787 275-1643...
-
Page 2: Pack Contents
It provides as an ideal assistant to you for bread and cake making. Technical Parameters Speed of Stirring Shaft (r/min) Power Weight Overall Dimensions Name (KW) (LBS) (inch) Speed Speed Speed 18mcpm20qlh 25" x 23.50" x 35.50" 18mcpm30qlh 28" x 26.50" x 50"... - Page 3 Main External Parts Mixer ① Gear change hand lever ② Stirring shaft ③ Mixer ④ Stainless barrel ⑤ Power switch ⑥ Bent lever ⑦ Safety guard ( may choose the fitting) ⑧ Suppor...
- Page 4 Operation Instruction ① Standard power supply HzAc. (Please use a plug with 3 wide contacts and good grounding.) ② Installation of mixer: Put the stirring shaft 2 in Mixer 3 and rotate it in clockwise direction. ③ Starting procedures: Pull the gear change hand lever 1 to position 1 before starting, then turn on the power switch 5 and set the speed required.
-
Page 5: Maintenance
Notes ① The power socket must be provided with a good ground wire to guarantee the mixer’s good grounding through it. There will be an electric shock if no ground wire or an improper grounding mounted. The ground wire can never be connected with gas pipe, water pipe, lightning rod or telephone line. -
Page 6: Troubleshooting
Trouble Shooting Problems Causes Solutions Tool shaft does not Check electric wiring, rotate after starting Loosen electric wiring tighten those loose the machine connects The seal rings are Oil leakage Replace seal rings worn out Check the power Too low voltage supply Motor temperature raised while... -
Page 7: Electrical Wiring
Warning! If the equipment is out of function, please make sure that it is serviced by professional person or please turn to special service point. Electrical Wiring This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. -
Page 8: Fitting/Removing The Bowl
Remove the appliance from all packaging. Fitting/Removing the Bowl Turn Off the appliance. Open the safety guard by turning it to the left (HLM10 &HLM20) or lifting it above the mixer (HLM30). Lower the bowl with the bowl handle. Release the locking catches either side of the bowl. -
Page 9: Layout Of Controls
Firm mixes Suitable Gears: 1, 2 light pastry, cake/biscuit mix, Beater icings, fillings and mashed Medium vegetables Light mixes Suitable Gears: 1, 2, 3 Whisk whipped cream, mayonnaise, egg Fast whites, pancakes and soufflé s Layout of Controls Gear lever ON switch OFF switch ON button - Press to start the mixer. -
Page 10: Cleaning, Care And Maintenance
Mixing Capacity Bowl Model Volume Max Flour Max Dough 18mcpm20qlh 20Quart 11.00LBS 18.00LBS 18mcpm30qlh 30Quart 16.50LBS 25.00LBS Changing Mixing Speed Note: ALWAYS stop the mixer before attempting to change the mixing speed. With the appliance turned Off: Select the required gear using the gear change lever. - Page 11 PARTS of 18mcpm20qlh SERIAL PART SERIAL PART PART NAME PART NAME 20-1 Wire whip 20-46 Bushing 20-2 Spiral dough hook 20-47 Oil seal 20-3 Flat Beater 20-48 Fore lump 20-4 Safety guard 20-49 Support 20-5 Bowl 20-50 Base 30-7 Adjusting screw...
- Page 13 PARTS of 18mcpm30qlh SERIAL PART SERIAL PART PART NAME PART NAME 30-1 Hook 30-51 30-2 Beater 30-52 Base 30-3 Wire whip 30-53 Bearing 30-4 Safety guard 30-54 Transmission shaft support 30-5 Bowl 30-55 Flat key 30-6 Top cover 30-56 Circlip for shaft 30-7 Adjustig screw 30-57...
- Page 15 Ⅰ. Introduction These Meat grinders are state-of-the-art machines elaborately designed and manufactured by our company. They possess the following notable advantages: 1. Totally-enclosed gear driving, compact structure and stable operation. 2. Hygienic food processing is our main goal. In fact, the food-contacting components and the bodies of meat grinders are all made of premium stainless steel.
- Page 16 Cut the stuff into pieces of meat whose sizes are similar to that of the feeding inlet after its skin and bone removed. Feed the stuff into the grinding cavity with the feeding bar. Do not replace the bar with other tools. Upon completion, detach and clean the meat-grinding components etc.
- Page 17 V. Expoded diagram and spare parts list 1. MG-TC22 NAME QUANTITY Copper bush Grinder Head Nylon washer Bearing Propeller Shaft pin of propeller Knife Pressure plate Funnel Trefoil nut Locking bolt Stuff tray Pusher...
- Page 18 2. MG-12 NAME QUANTITY Grinder Head Propeller Knife Pressure plate Trefoil nut Stuff tray Pusher...
- Page 19 3. VS-V12H-AE QUANTITY QUANTITY NAME NAME pushing rod transmission shaft The plastic handle The shaft sleeve scraping wings washer front cover back over fixed pin plastic screws ball screw Locking hook lead screw lock pin Front cover dowel Bearing knife bushing The blade flange support sleeve...
- Page 20 Declaration of conformity Equipment Type Planetary Mixer Certificate...
